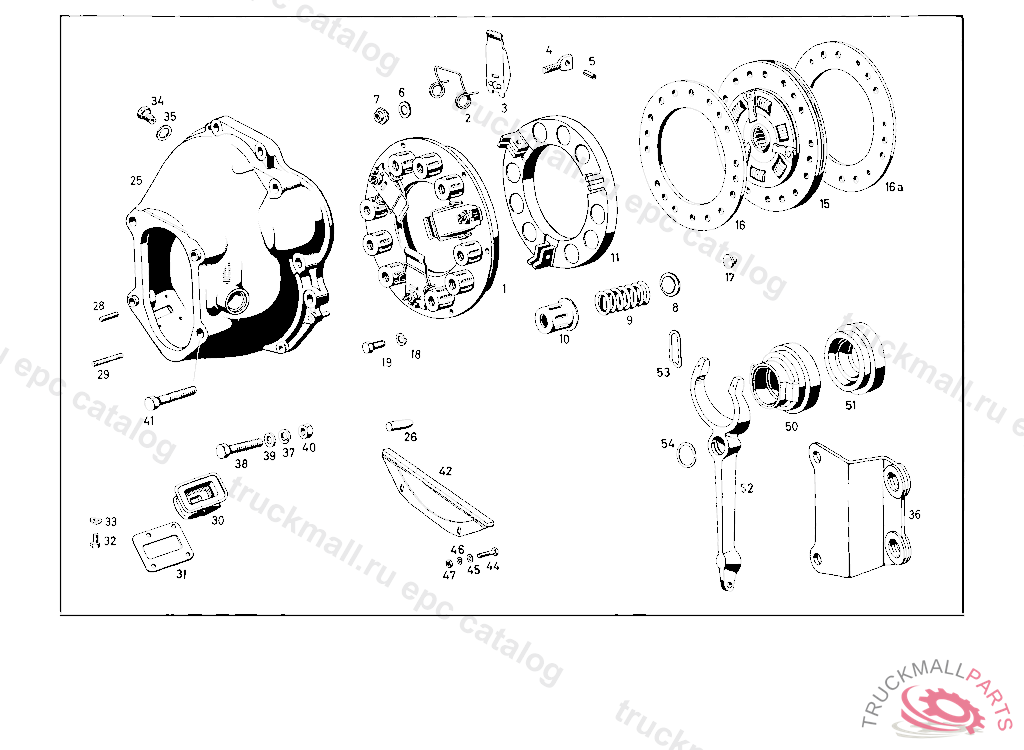

Поз.
Артикул
Описание
1
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
2
SPRING
3
RELEASE LEVER
4
PIN
6
SPACER RING
7
ADJUSTING NUT
8
WASHER
9
PRESSURE SPRING 50 MM LONG
10
SLEEVE
11
CLUTCH PRESSURE PLATE
15
CLUTCH DISC
16
CLUTCH LINING. CLUTCH FACING UP TO CHASSIS 7508562
17
RIVET , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
25
CLUTCH HOUSING
26
DOWEL PIN DIA. 12 X 34. DOWEL PIN FOR INTERMEDIATE PLATE AT CYLINDER CRANKCASE
29
STUD BOLT. STUD FOR BRACKET, SUPPORT, AS OF CHASSIS 024677
30
BOOT
31
SEAL HOLDER
34
SCREW , 010 UP TO CHASSIS 000646,012 UP TO CHASSIS 001036 NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH
36
FIXING PLATE. MOUNTING PLATE FOR EXHAUST SUPPORT
42
COVER PLATE FOR CLUTCH HOUSING, AS OF CHASSIS 024677
50
CLUTCH RELEASE BEARING
51
RELEASE COLLAR , 000,001,010 UP TO CHASSIS 081440, 100,101,110 UP TO CHASSIS 128633
52
RELEASE FORK. RELEASE YOKE
53
SPRING , Replaced By: A3199930025
999
CLUTCH LINING , Replaced By: A1102520010
999
, Replaced By: A1212500405
999
RING FOR ADJUSTING NUT, Replaced By: A0002520151
