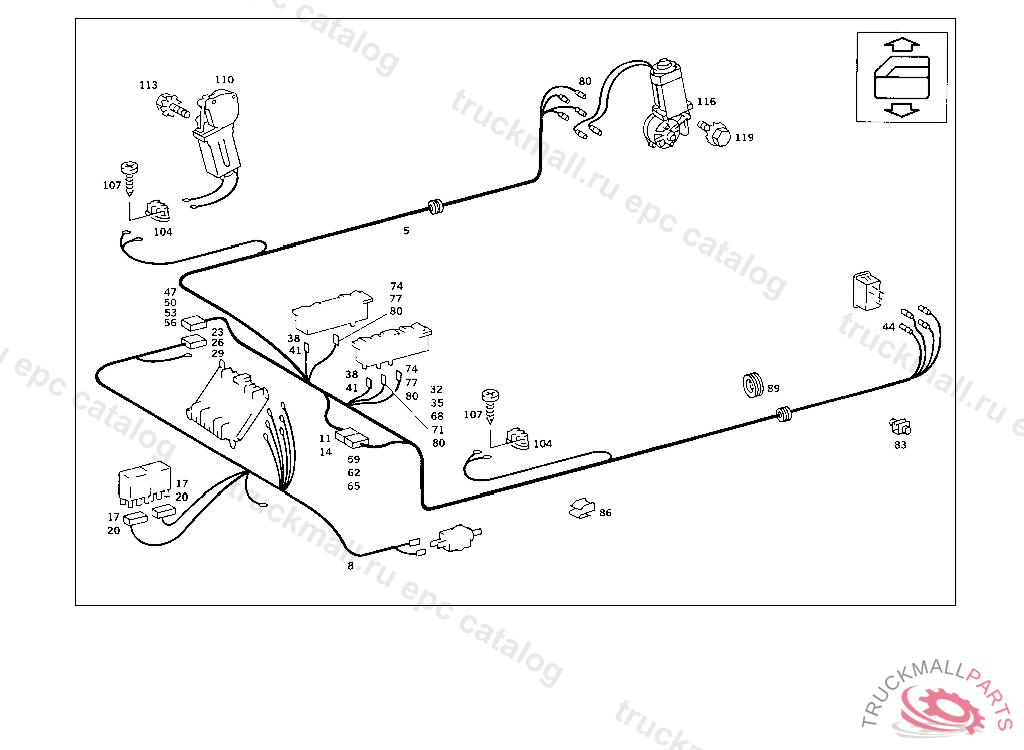

Mercedes A0018207842 - ЭЛЕКТРОМОТОР

5

ELECTRIC CABLE FROM SWITCH CLUSTER TO FRONT AND REAR DOOR WINDOW REGULATOR MOTORS, 023 066333 033 030919 123 047598 130 060954

8

ELECTRIC CABLE FROM MAIN FUSE BOX TO FRONT AND REAR DOOR WINDOW REGULATORS

11

PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810

14

COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810

17

PIN BUSHING HOUSING 4-POLE

20

COVER

23

PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE

26

COVERTO 006 545 81 28

29

ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2

32

PIN BUSHING HOUSING

35

COVERTO 009 545 83 28

38

PLUG. PIN BUSHING HOUSING ELECTRIC WINDOW REGULATOR SWITCH

41

PLUGTO 009 545 94 28

44

PIN BUSHING

47

PLUG HOUSING

50

COVER

53

PLUG HOUSING FINAL CONTROL ELEMENT, 8-POLE

56

COVERTO 006 545 81 28

59

PLUG HOUSING

62

COVER

65

PLUG PIN ADDITIONAL CABLE TO SERIES CABLE

68

CONNECTOR SAFETY SWITCH

71

COVERTO 000 821 25 26

74

CONNECTOR SEAT HEATER SWITCH, 7-POLE, 107.042 011569 ALSO INSTALLED ON 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009132 ALSO INSTALLED ON 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 009987 ALSO INSTALLED ON 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.

77

COVERTO 000 821 26 26

80

ROUND PIN BUSHING4 MM2

83

CLIP WIRE CABLE TO AIR CLEANER

86

CLIP CABLE HARNESS TO ROOF RAIL

89

GROMMET

104

CABLE CONNECTOR , FROM CHASSIS:108.016 050831 108.018 053598 108.019 054235

107

SHEET METAL SCREW BRACKET TO CAB FLOOR

110

ELECTRIC MOTOR RIGHT FRONT DOOR

110

ELECTRIC MOTOR LEFT FRONT DOOR

113

SCREW

116

ELECTRIC MOTOR LEFT REAR DOOR

119

SCREW
