Поз.
Артикул
Описание

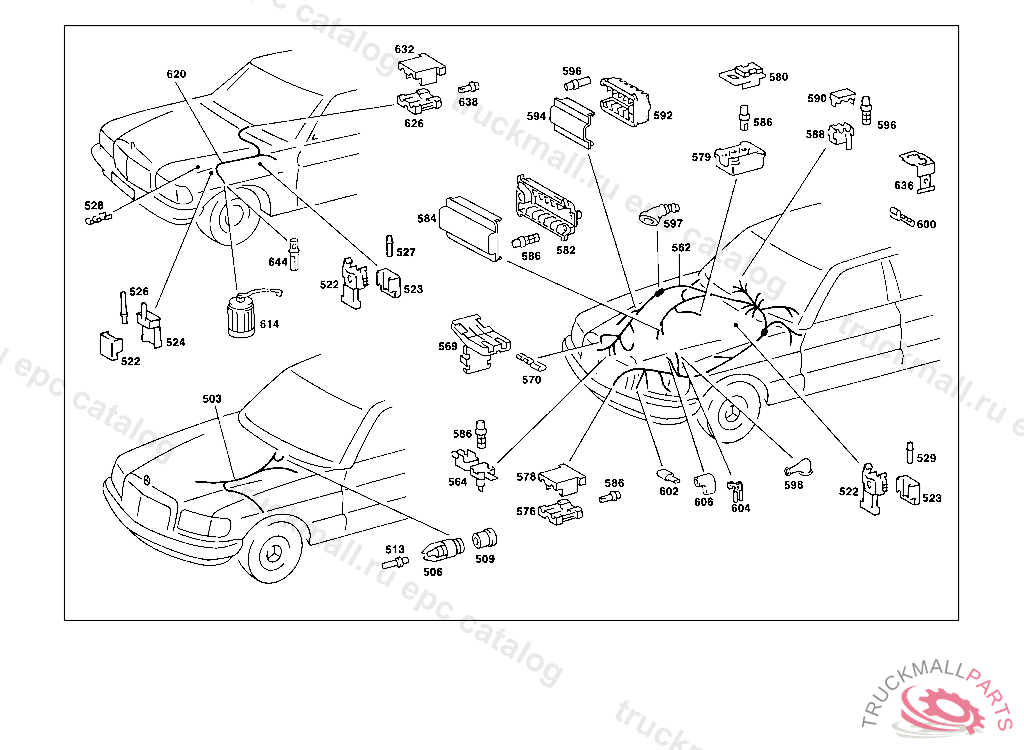

503
CABLE HARNESS 1ST GEAR START ADDITIONAL CABLE HARNESS
506
PLUG HOUSING MAIN CABLE HARNESS
509
COVERTO 011 545 10 28
513
PLUG PIN
522
PIN BUSHING HOUSING ELECTRIC CHANGE-OVER VALVE
523
COVERTO 008 545 08 28,008 545 09 28
524
PLUG HOUSING BIPOLAR
526
PLUG PIN , Replaced By: A0135457928
526
PLUG PIN , 107.042 L.H.D. A 005252 107.042 R.H.D. A 007245 123. L.H.D. A 154544,F 019237 123. R.H.D. A 118487,F 020926
527
PIN BUSHING , Replaced By: A0015454426
527
ROUND PIN BUSHING4 MM2
528
ROUND PIN BUSHING , Replaced By: A0035452626
528
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
529
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
529
ROUND PIN BUSHING , Replaced By: A0035452626
562
CABLE HARNESS AUTOMATIC AIR CONDITIONER
564
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
569
PIN BUSHING HOUSING
570
PIN BUSHING
576
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
578
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
579
PIN BUSHING HOUSING 4-POLE
580
COVER
582
PIN BUSHING HOUSING 12-POLE
584
COVERTO 009 545 26 28
586
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
586
ROUND PIN BUSHING , Replaced By: A0035452626
586
PIN BUSHING
588
PIN BUSHING HOUSING BIPOLAR
590
COVERTO 010 545 10 28
592
PIN BUSHING HOUSING CONTROL UNIT
594
COVERTO 010 545 00 28
596
ROUND PIN BUSHING2.5 MM2
596
PIN BUSHING , Replaced By: A0025459926
597
GROMMET
598
BOOT , 107.042 011568 EXCEPT FOR 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 000986 EXCEPT FOR 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
600
PIN BUSHING RADIO SET
602
INSULATING SLEEVETO 000 546 43 40
604
CABLE SHOE. PIN BUSHING PRESSURE SWITCH
606
INSULATING SLEEVE , 107.042 011568 EXCEPT FOR 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009131 EXCEPT FOR 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 107.046 000986 EXCEPT FOR 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
614
CONTROL UNIT T.D.C. SENDER UNIT
620
CABLE HARNESS
620
CABLE HARNESS , Replaced By: A1265406809
626
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
632
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
636
BRACKET RELAY
638
ROUND PIN BUSHING , Replaced By: A0035452626
638
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
644
PIN BUSHING , Replaced By: A0025459926
644
ROUND PIN BUSHING2.5 MM2
999
GROMMET , Replaced By: A0005460937
999
GROMMET OVER STARTING CABLE AND MAIN CABLE HARNESS
999
GROMMET
999
INSULATING HOSE
999
RELAY , 107.042 011569 ALSO INSTALLED ON 010107,010328,010378,011305,011341,011348,011356,011418,011426,011434,011436,011444,011454,011455, 011464,011472,011473,011476,011480,011494,011496,011503,011504,011513,011514,011518,011519,011520, 011526,011528,011531,011533,011535,011537,011538,011539,011541-011567. 107.045 009132 ALSO INSTALLED ON 004581,007703,008068,008344,008400,008401,008455,008627,008724,008836,008842,008885,008911,008920, 008925,008958,008967,008989,008994,009001,009100,009128. 046 009987 ALSO INSTALLED ON 000518,000621,000841,000897,000899,000921,000933,000936,000938,000940,000942,000944,000956,000964, 000967,000970,000974-000985.
999
PART NAME MISSING. PLUG , Replaced By: A0125450328, +014A0015453826, +001A0095455728
999
PLUG
999
PLUG
999
LOCK
999
POSITIVE CABLE
999
CABLE HARNESS
999
CAP DIAGNOSIS BOX
999
CABLE HARNESS
999
CABLE HARNESS
999
ELECTRIC CABLE
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
