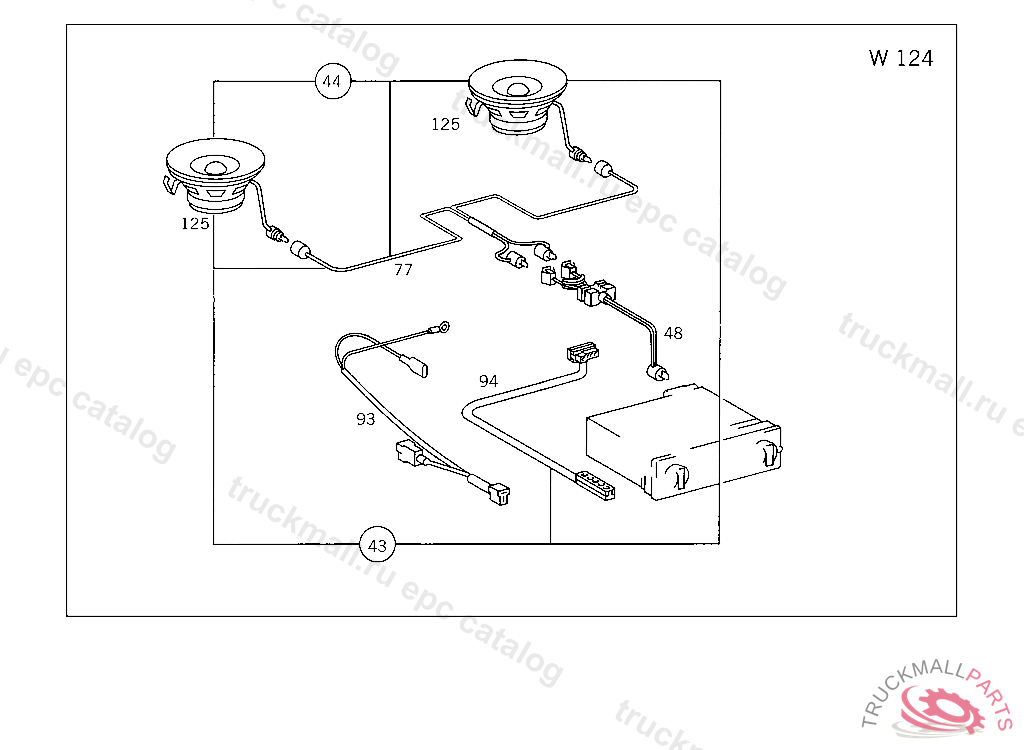

300 D TURBODIESEL 4 MATIC - 124.333 200-300 9/89-10/92, 200D-300D 9/89-7/93 - 82 ELECTRICAL SYSTEM

  • Поз.
    Артикул
    Описание
  • 43
    RADIO ACCESSORIES FRONT LOUDSPEAKER INSTALLATION KIT, UP TO CHASSIS NEW EQUIPMENT 9/85
  • 44
    RADIO ACCESSORIES FRONT LOUDSPEAKER INSTALLATION KIT
  • 48
    ELECTRIC CABLE LOUDSPEAKER CONNECTION CABLE, FROM CHASSIS 116.020 037452 116.024,025 039538 116.028,029 025862 116.032,033 034710
  • 77
    ELECTRIC CABLE FRONT LOUDSPEAKER CONNECTION, UP TO CHASSIS NEW EQUIPMENT 9/85 FROM CHASSIS,SEE STANDARD MICROFICHE
  • 93
    ELECTRIC CABLE RADIO CURRENT SUPPLY TO 001 820 43 86
  • 94
    ELECTRIC CABLE RADIO CURRENT SUPPLY TO 001 820 78 86, UP TO CHASSIS NEW EQUIPMENT 9/85 FROM CHASSIS,SEE STANDARD MICROFICHE
  • 125
    LOUDSPEAKER WITH HEX.HEAD
