Mercedes A0029943945 - ПРУЖИННАЯ ГАЙКА

SL 500 JAPAN 129.068 320-600 FROM 06/98

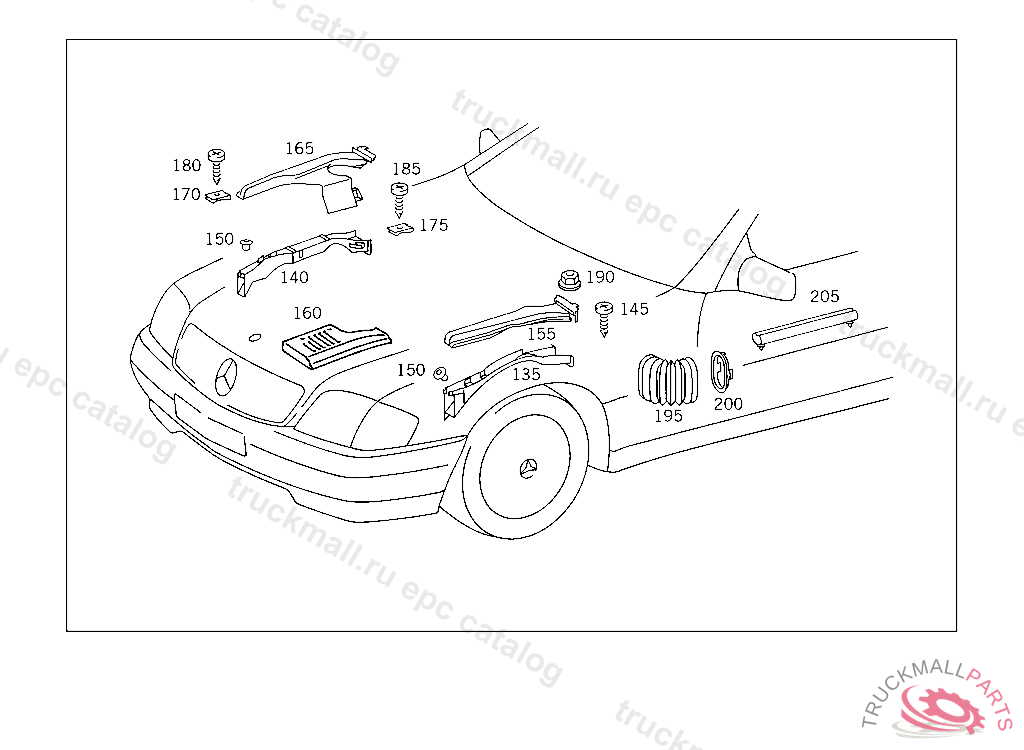

82 ELECTRICAL SYSTEM - 105 CABLE COVERG.,PROT. HOSES,CABLE DUCTS, DEFLECTORS,CONTROL UNIT MOUNTING PLATE IL. 3
  • Поз.
    Артикул
    Описание
  • 135
    COVERING PARTITION PANEL,LEFT
  • 140
    COVERING PARTITION PANEL,RIGHT
  • 145
    SHEET METAL SCREW BRACKET TO FLOOR PLATE
  • 150
    NUT COVERING TO CAB FIRE WALL
  • 155
    COVER LEFT, F 125157 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM F 125158 WITH CODE 805
  • 165
    COVER RIGHT
  • 170
    LOCK PROTECTIVE GRILLE
  • 170
    LOCK CONDENSER TO INTERIOR PLATE,LEFT OUTSIDE
  • 175
    LOCK INSTRUMENT PANEL TO PANELLING
  • 180
    SHEET METAL SCREW BRACKET TO FLOOR PLATE
  • 185
    SHEET METAL SCREW MUFFLER TO AIR INTAKE PIPE,INSIDE
  • 190
    FASTENER BUTTON , Replaced By: A0019889581
  • 190
    FASTENER BUTTON INSULATION TO PARTITION PANEL,RIGHT
  • 195
    HOSE FRONT DOOR
  • 200
    ESCUTCHEON HOSE TO DOOR AND TO FRONT PANEL PILLAR OR CENTRAL PILLAR
  • 205
    COVERING ON FRONT DOOR WINDOW REGULATOR TOOTHED SEGMENT
