Mercedes A1684700964 - ПРОВОД

A 160 168.033 CODE:839, BRASILIEN

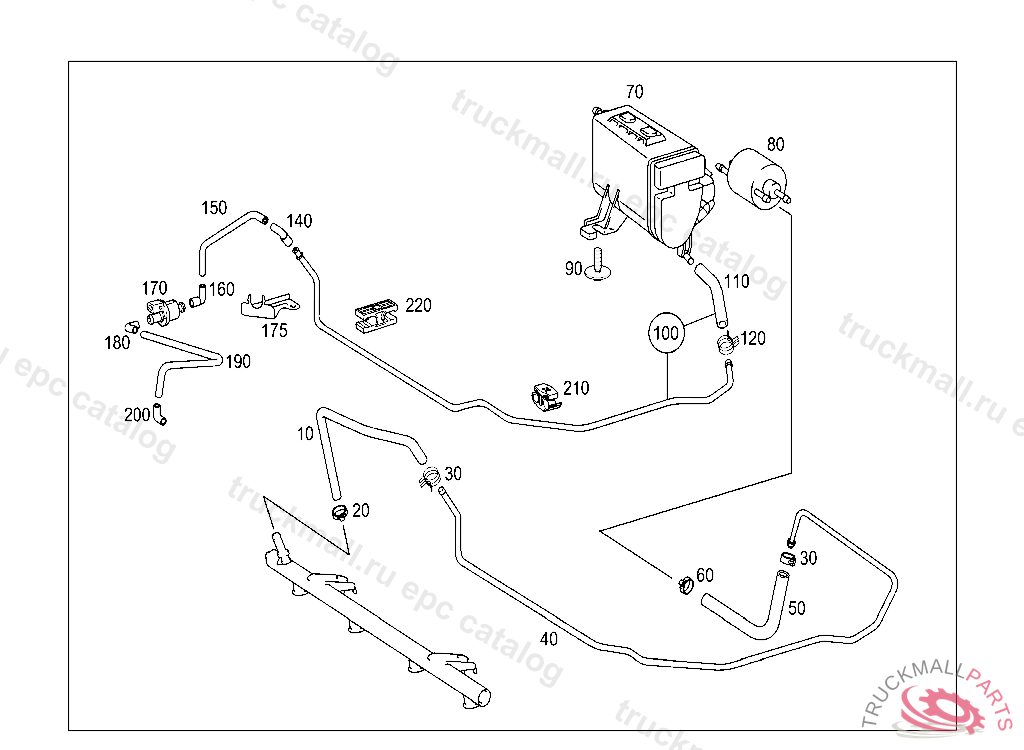

47 FUEL SYSTEM - 035 FUEL LINES, GASOLINE VEHICLES IL. 1
  • Поз.
    Артикул
    Описание
  • 10
    HOSE FROM FEED LINE TO ENGINE, TO BE ADAPTED DURING ASSEMBLY
  • 10
    HOSE FROM FEED LINE TO ENGINE, TO BE ADAPTED DURING ASSEMBLY, Replaced By: A1684760127
  • 10
    HOSE FROM FEED LINE TO ENGINE, Replaced By: A1684767926
  • 20
    HOSE CLAMP HOSE ATTACHMENT
  • 30
    HOSE CLAMP HOSE ATTACHMENT
  • 40
    LINE FEED LINE
  • 50
    HOSE FROM FEED LINE TO FILTER 240 MM
  • 60
    HOSE CLAMP HOSE ATTACHMENT
  • 70
    FUEL FILTER FOR ACT. CHARCOAL FILTER AND FUEL FILTER
  • 80
    FUEL FILTER
  • 90
    BOLT FUEL FILTER TO SUBSTRUCTURE
  • 100
    LINE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE
  • 110
    HOSE FROM RETURN LINE TO FUEL TANK
  • 120
    HOSE CLAMP HOSE ATTACHMENT
  • 140
    HOSE REGENERATION VALVE TO THROTTLE HOUSING,C 013142SIEHE KG 15
  • 150
    BREATHER PIPE REGENERATION LINE, J 22122719990410
  • 150
    BREATHER PIPE REGENERATION LINE, J 07147319980715 J 22122619990410
  • 160
    HOSE FROM ACTIVATED CHARCOAL FILTER TO REGENERATION VALVE
  • 170
    PURGE VALVE , J 07147319980731 J 22122619990410
  • 175
    BRACKET
  • 180
    HOSE DISTRIBUTOR TO REGENERATION VALVE, RIGHT, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
  • 190
    BREATHER PIPE REGENERATION VALVE TO INTAKE PIPE
  • 200
    HOSE REGENERATION VALVE TO THROTTLE HOUSING,C 013142SIEHE KG 15
  • 210
    CLAMP. LOCK FUEL LINES
  • 220
    BRACKET FUEL LINES ON FLOOR UNDER REAR SEAT
