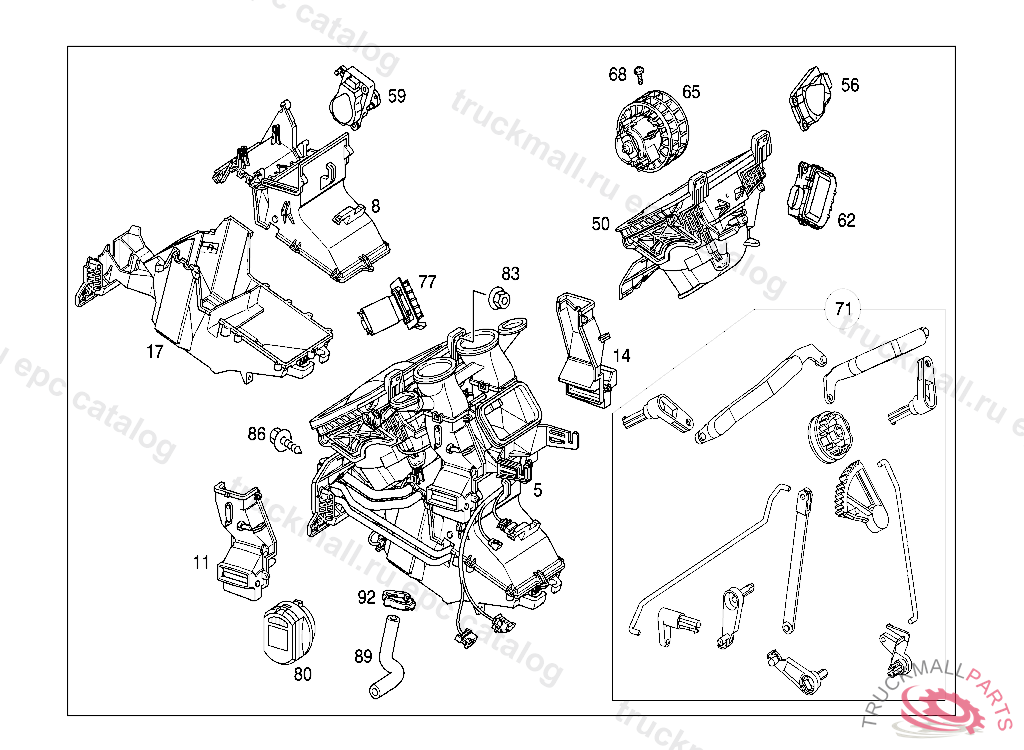

Поз.
Артикул
Описание
5
HEATER HOUSING AUTOMATIC HEATING
5
HEATER HOUSING AUTOMATIC HEATING
8
HOUSING UPPER PART
8
HOUSING UPPER PART
11
HOUSING LEGROOM FLAP LEFT
11
HOUSING LEGROOM FLAP LEFT
14
HOUSING LEGROOM FLAP RIGHT
14
HOUSING LEGROOM FLAP RIGHT
17
HOUSING LOWER PART
17
HOUSING LOWER PART
50
HOUSING BLOWER
56
STEPPER MOTOR FRESH-AIR/CIRCULATING-AIR FLAP, J 56858920010301802
59
STEPPER MOTOR AIR MIXING FLAP CONTROL, J 56858920010301802
62
SETTING MOTOR AIR FLAP CONTROL
65
BLOWER MOTOR BLOWER
68
SCREW GLOVE COMPARTMENT LID WITH DAMPER
71
OPERATING LEVER (PARTS KIT)
77
SERIES RESISTOR BLOWER, J 56858920010301802
77
SERIES RESISTOR BLOWER, J 56858920010301802
80
SENSOR DEW POINT SENSOR
83
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
83
NUT-AND-WASHER ASSEMBLY HINGE, Replaced By: N910104006001
83
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
86
SCREW ANTINOISE CAPSULE,TOP,TO CAB SIDE MEMBER, UP TO IDENT NO. 5 143360,FROM IDENT NO. SEE SA 24587/01
89
HOSE CONDENSED WATER DRAIN
92
CABLE TIE BRANCH-OFF LINE FASTENING FOR RPM SENSOR
