Mercedes A1234206828 - ТРУБКА ТОРМОЗНАЯ

C 240 JAPAN 202.086

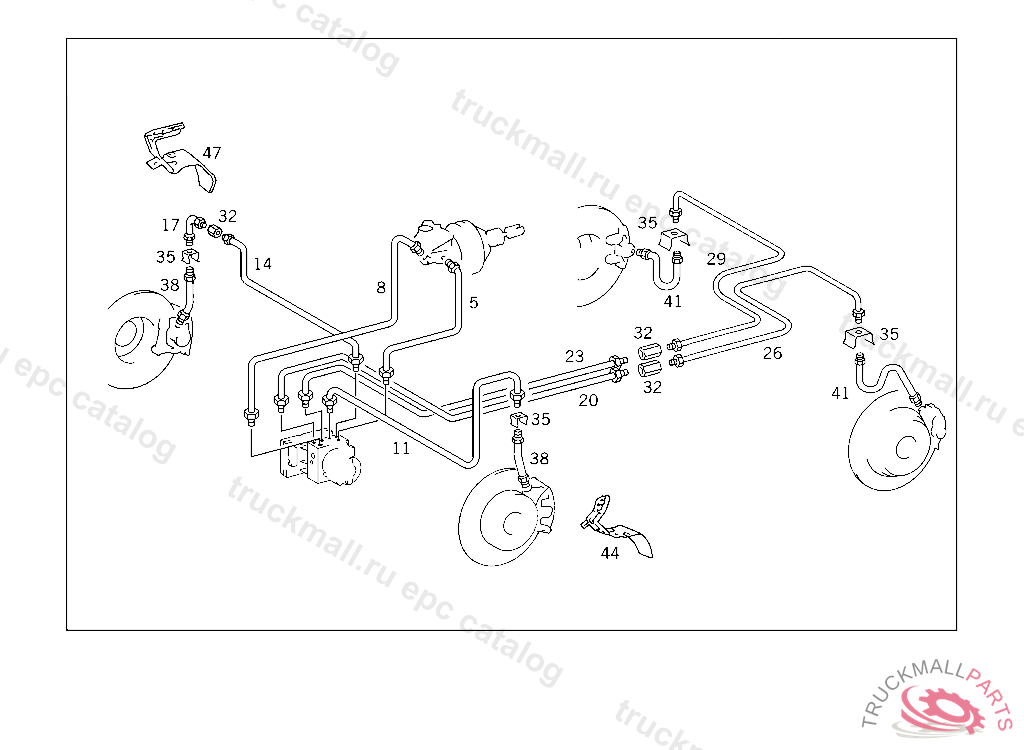

42 BRAKES - 095 BRAKE LINES USED WITH ESP (CODE 472)
  • Поз.
    Артикул
    Описание
  • 5
    LINE FROM MASTER CYLINDER,CONNECTION "V",TO HYDRAULIC UNIT,CONNECTION: "V", F 894083 EXCEPT CODE 800 ALSO INSTALLED IN VEHICLE FROM F 894084 WITH CODE 809
  • 5
    LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
  • 5
    LINE FROM MASTER CYLINDER TO DISTRIBUTOR
  • 5
    LINE , Replaced By: A3404204129, +002A1269970034
  • 5
    LINE , Replaced By: A3404201629, +002A1269970034
  • 8
    LINE , Replaced By: A3404204129, +002A1269970034
  • 8
    LINE FROM CONNECTOR TO TEST CONNECTION 2800 MM,4 478330
  • 8
    LINE FROM MASTER CYLINDER,CONNECTION "H",TO HYDRAULIC UNIT,CONNECTION: "H", ONLY FOR 202. A/B/C/D/E A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808 A 809594 F 894083 EXEPT ON VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE FROM A 809595, F 894084 WITH CODE 809
  • 8
    LINE FROM MASTER CYLINDER,CONNECTION "H",TO HYDRAULIC UNIT,CONNECTION: "H", A 809594 F 894083 EXEPT ON VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE FROM A 809595, F 894084 WITH CODE 809
  • 11
    LINE FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE
  • 14
    LINE FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE
  • 14
    LINE FROM BRAKE POWER REGULATOR TO LEFT FRONT WHEEL
  • 17
    LINE , UP TO CHASSIS: 017 062832, FEDERAL, EXCEPT FOR: 059499,060650,061519,061527,062799. 017 062926, CALIFORNIA, EXCEPT FOR 048629,060112,062772 114 029141, EXCEPT FOR: 002250,003131,016950,026317,026334,026513,027268,027269,027272,027281,027513,027518,027822,027824, 028251,029032,029113,029121,029128. 117 10/50 102742, EXCEPT FOR: 098668,099672,100535,100850,100851,101663,102380,102507,102622,102708,102717. 117 12/52 102758, EXCEPT FOR: 088215,099223,099235,099370,099371,099673,100542,101165,101171,101246,102475,102643,102651,102724.
  • 20
    LINE FROM BRAKE POWER REGULATOR TO ADAPTER FITTING
  • 23
    LINE FROM BRAKE POWER REGULATOR TO ADAPTER FITTING
  • 26
    LINE FROM VALVE TO LEFT REAR WHEEL 3560 MM
  • 29
    LINE FROM VALVE TO LEFT REAR WHEEL 3560 MM
  • 32
    ADAPTER FITTING BETWEEN THE LINES
  • 35
    RETAINING SPRING BRAKE HOSE TO BRACKET
  • 38
    BRAKE HOSE FRONT, A 344661 F 331441 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 344660, F 331440 WITH CODE 806
  • 41
    BRAKE HOSE REAR, FROM MODEL YEAR'96
  • 44
    BRACKET FRONT LEFT
  • 47
    BRACKET RIGHT BRAKE HOSE
