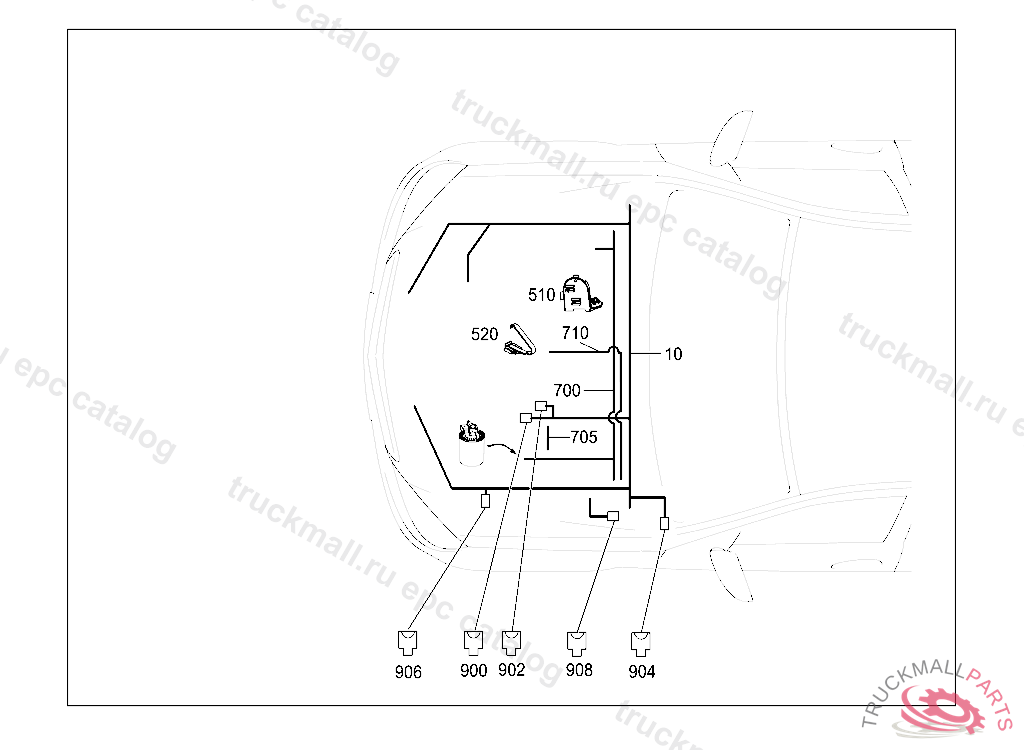

C 220 CDI - 204.002 DOKU NICHT KOMPLETT! NUR Fu00dcR KFE FZG - 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

  • Поз.
    Артикул
    Описание
  • 10
    WIRING HARNESS ENGINE CABLE HARNESS,BODY MOUNTED, STATE IDENT NO. WHEN ORDERING THE CORRESPONDING SPECIAL EQUIPMENT IS CONTAINED IN THE WIRING HARNESS ACCORDING TO THE VEHICLE PRODUCTION NUMBER
  • 510
    CABLE RUN ENGINE CABLE HARNESS,BODY MOUNTED
  • 520
    CABLE RUN
  • 700
    ELECTRICAL WIRING HARNESS FUEL FILTER HEATER
  • 705
    ELECTRICAL WIRING HARNESS FILTER HEATER ADAPTER WIRING HARNESS
  • 710
    ELECTRICAL WIRING HARNESS RETROFITTING FILTER HEATER
  • 710
    ELECTRICAL WIRING HARNESS RETROFITTING FILTER HEATER
  • 900
    PIN BUSHING HOUSING 10-POLE
  • 900
    BELL HOUSING RIGHT FRONT LIGHTING UNIT 14-PIN SLK2.8, MLK1.2,E2
  • 904
    PIN BUSHING HOUSING POWER SOCKET 2-PIN SLK2.8,X58/27
  • 904
    PLUG BOOSTER BLOWER 8-PIN SLK2.8,X122/2
  • 906
    PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
  • 908
    PIN BUSHING HOUSING ENGINE COMPARTMENT/ENGINE CONNECTOR 2-PIN SLK2.8,X26/31
