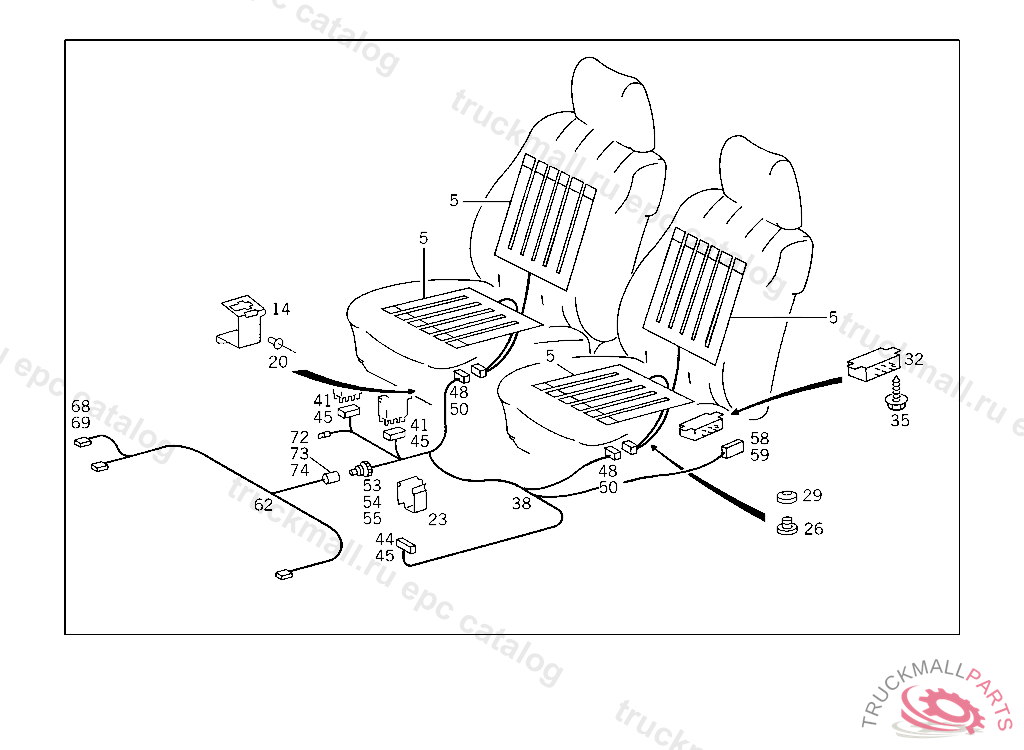

Поз.
Артикул
Описание
5
HEATING PAD BACKREST AND SEAT CUSHION
5
HEATING PAD FRONT CENTRAL SEAT CUSHION, USED FOR SPORTS SEATS
5
HEATING PAD BACKREST AND SEAT CUSHION
5
HEATING PAD FRONT CENTRAL BACKREST, USED FOR SPORTS SEATS
14
BRACKET AIRBAG PLUG TO SEAT ADJUSTER ON THE RIGHT, WITH HEIGHT ADJUSTMENT
20
RIVET
23
CLIP BELT LOCK TO SEAT RAIL
26
EYE
29
EYE
32
CONTROL UNIT BELOW REAR SEAT BENCH
35
SHEET METAL SCREW
38
CABLE HARNESS FRONT SEAT HEATING
41
PIN BUSHING HOUSING SEAT HEATER SWITCH, 6-POLE
44
PIN BUSHING HOUSING OUTBOARD TEMPERATURE INDICATOR
45
ROUND PIN BUSHING2.5 MM2
48
PLUG TRIPLE
48
PIN BUSHING HOUSING 4-POLE, BLOWER MOTOR
50
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
53
PLUG HOUSING MAIN CABLE HARNESS
54
COVERTO 011 545 10 28
55
PLUG PIN
58
PIN BUSHING HOUSING SEAT HEATING CONTROL UNIT
59
CAPTO 017 545 41 28
62
ELECTRIC CABLE SEAT HEATER FEED-IN
68
PIN BUSHING HOUSING FUSE BOX
69
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
72
PLUG HOUSING MAIN CABLE HARNESS
73
COVERTO 011 545 10 28
74
PLUG PIN
