Mercedes A1234206828 - ТРУБКА ТОРМОЗНАЯ

CLK 55 AMG USA 208.374

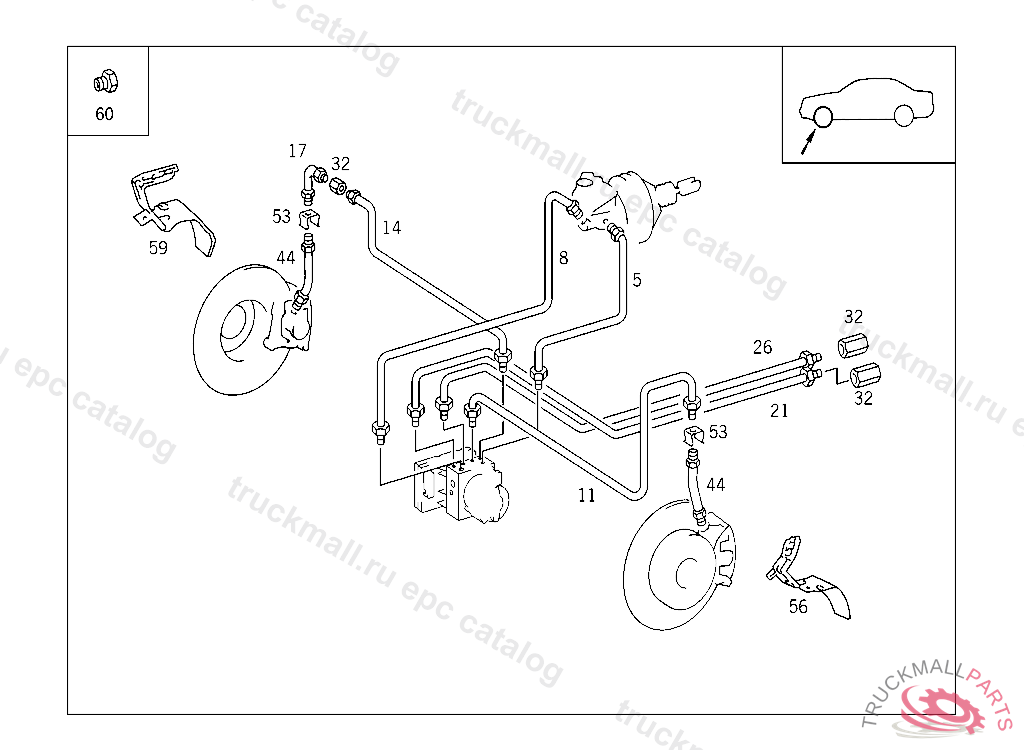

42 BRAKES - 090 BRAKE LINES IL. 1
  • Поз.
    Артикул
    Описание
  • 5
    LINE FROM MASTER CYLINDER TO DISTRIBUTOR
  • 5
    LINE , Replaced By: A3404201629, +002A1269970034
  • 8
    LINE , Replaced By: A1243209272, +001A1269970034
  • 8
    LINE (RETURN LINE) FROM COUPLING PIECE TO OIL RESERVOIR, A 679998 ALSO INSTALLED ON A 678327 EXCEPT FOR A 680005,A 680013,A 680034,A 680048,A 680053,A 680054,A 680075,A 680087,A 680090,A 680102,A 680121,A 680127,A 680129,A 680130, A 680132,A 680170,A 680171,A 680179,A 680195,A 680202,A 680206,A 680217,A 680227,A 680230,A 680241,A 680254,A 680269,A 680284, A 680291,A 680293,A 680298,A 680305,A 680317,A 680320,A 680332,A 680333,A 680348,A 680359,A 680382,A 680433,A 680447,A 680477, A 680487,A 680492,A 680520,A 680540,A 680548,A 680562,A 680573,A 680574,A 680614,A 680641,A 680657,A 680660,A 680910,A 680911, A 680934,A 680962,A 681008,A 681021,A 681274,A 681327,A 681369,A 681403,A 681531,A 681564,A 682040,A 682275,A 682461,A 682468, A 682690,A 684356,A 685419,A 685589,A 686740,A 690533. F 065442
  • 8
    LINE FROM MASTER CYLINDER,CONNECTION "H",TO HYDRAULIC UNIT,CONNECTION: "H",BOSCH, A 809594 F 894083 EXEPT ON VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE FROM A 809595, F 894084 WITH CODE 809
  • 11
    LINE FROM BRAKE POWER REGULATOR TO LEFT FRONT WHEEL
  • 11
    LINE FROM DISTRIBUTOR TO REAR RIGHT BRAKE HOSE
  • 14
    LINE FROM DISTRIBUTOR TO REAR HEIGHT CONTROL VALVE
  • 17
    LINE , UP TO CHASSIS: 017 062832, FEDERAL, EXCEPT FOR: 059499,060650,061519,061527,062799. 017 062926, CALIFORNIA, EXCEPT FOR 048629,060112,062772 114 029141, EXCEPT FOR: 002250,003131,016950,026317,026334,026513,027268,027269,027272,027281,027513,027518,027822,027824, 028251,029032,029113,029121,029128. 117 10/50 102742, EXCEPT FOR: 098668,099672,100535,100850,100851,101663,102380,102507,102622,102708,102717. 117 12/52 102758, EXCEPT FOR: 088215,099223,099235,099370,099371,099673,100542,101165,101171,101246,102475,102643,102651,102724.
  • 21
    LINE FROM BRAKE POWER REGULATOR TO ADAPTER FITTING
  • 26
    LINE FROM BRAKE POWER REGULATOR TO ADAPTER FITTING
  • 32
    ADAPTER FITTING BETWEEN THE LINES
  • 44
    BRAKE HOSE FRONT, A 344661 F 331441 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 344660, F 331440 WITH CODE 806
  • 53
    RETAINING SPRING BRAKE HOSE TO BRACKET
  • 56
    BRACKET FRONT LEFT
  • 59
    BRACKET RIGHT BRAKE HOSE
  • 59
    BRACKET , Replaced By: A2104210894
  • 60
    SCREW. RETAINING SCREW
