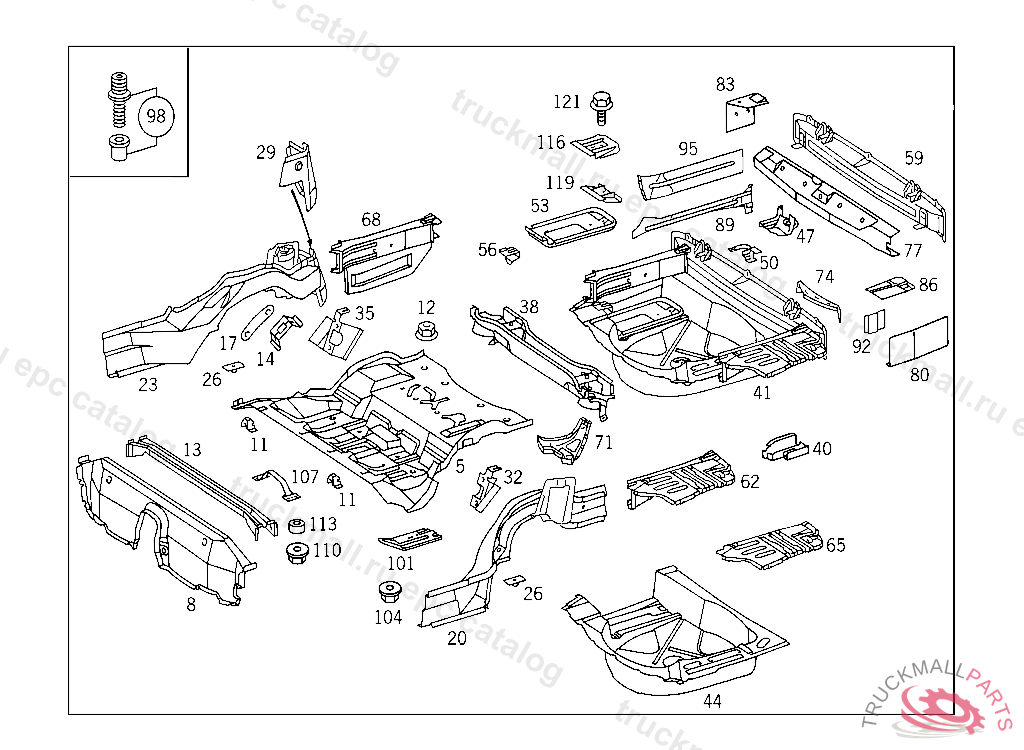

Поз.
Артикул
Описание
5
FLOOR BELOW REAR SEAT BENCH
8
CROSS MEMBER BELOW REAR SEAT BENCH
11
BRACKET SEAT MOUNTING
14
BRACKET ON FLOOR UNDERNEATH CENTER REAR SEAT WITH FOLDING REAR BACKREST
17
BRACKET ON FLOOR UNDERNEATH CENTER REAR SEAT WITH FOLDING REAR BACKREST
20
SIDE MEMBER REAR SIDE MEMBER,FRONT LEFT PART
23
SIDE MEMBER REAR SIDE MEMBER,FRONT RIGHT PART
26
PLATE REAR SUBFRAME FRONT MOUNTING
29
END PIECE AT SHOCK ABSORBER CONSOLE,REAR RIGHT
32
BRACKET ON SIDE MEMBER,LEFT WITH FOLDING REAR BACKREST
35
BRACKET ON SIDE MEMBER,RIGHT WITH FOLDING REAR BACKREST
38
CROSS MEMBER ABOVE REAR AXLE, UP TO IDENT NO: A 384233, F 378737 NEW SPRINGS FOR THE REAR AXLE (REFER TO DESIGN GROUP 32) ALSO TO BE ORDERED
40
BRACKET MOUNTING IN TRANSIT,AT SIDE MEMBER, FRONT LEFT
40
BRACKET MOUNTING IN TRANSIT,AT SIDE MEMBER, FRONT RIGHT
41
FLOOR REAR END FLOOR CONNECTOR
44
SPARE WHEEL WELL
47
CLAMP TOWING BRACKET
50
CONSOLE
53
FRAME BATTERY FRAME
56
STAY BATTERY FRAME
59
CROSS MEMBER REAR
62
SIDE MEMBER REAR LEFT
65
FLOOR AT LEFT SIDE MEMBER
68
SIDE MEMBER REAR RIGHT
77
REINFORCEMENT AT REAR CROSS MEMBER
80
REINFORCEMENT AT LEFT SIDE MEMBER
83
REINFORCEMENT AT RIGHT SIDE MEMBER
86
REINFORCEMENT AT LEFT SIDE MEMBER,TOP ONLY FOR CANADA
89
REINFORCEMENT AT RIGHT SIDE MEMBER,TOP ONLY FOR CANADA
92
REINFORCEMENT LEFT SIDE MEMBER, BOTTOM ONLY FOR CANADA
95
REINFORCEMENT RIGHT SIDE MEMBER,BOTTOM ONLY FOR CANADA
98
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
101
REINFORCEMENT AT FLOOR,BELOW REAR SEAT BENCH
104
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
107
CLAMP AT FLOOR,BELOW REAR SEAT BENCH
110
NUT LINKAGE TO TRANSMISSION AND SHIFTING TUBE
113
SEAL AT FLOOR,BELOW REAR SEAT BENCH
116
RAIL BATTERY TO BATTERY FRAME 74 AH
119
RAIL BATTERY TO BATTERY CASE
121
SCREW STRUT TO RIGHT BOTTOM CROSS MEMBER AND TO TUNNEL M8X20
