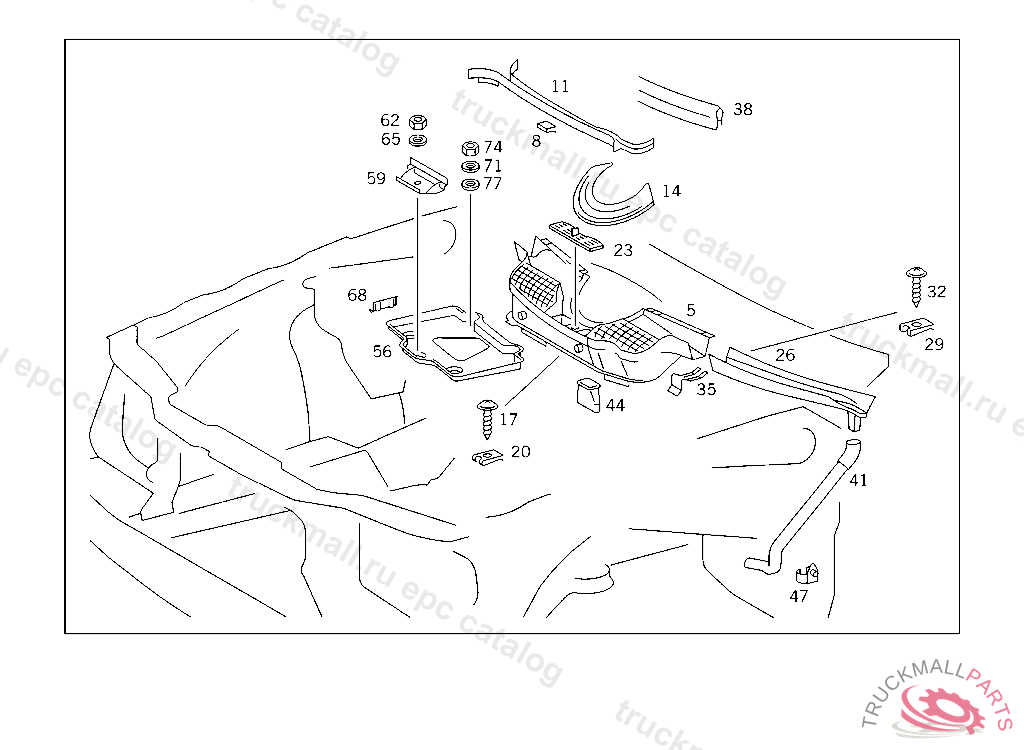

Поз.
Артикул
Описание
5
PARTITION PANEL CENTRAL, UP TO IDENT NO.: F 256526 J 011149
8
CLIP
11
PARTITION PANEL TOP CENTRAL
14
COVERING PARTITION PANEL, UP TO IDENT NO.: F 256526 J 011149
17
SHEET METAL SCREW BRACKET TO FIRE WALL
20
LOCK , Replaced By: A1409941045
20
LOCK FUEL LINE
23
SCREEN PARTITION PANEL
26
COVERING AT CROSS MEMBER BELOW WINDSHIELD,LEFT, FROM IDENT NO.: F 256527 J 011150
26
COVERING AT CROSS MEMBER BELOW WINDSHIELD,RIGHT, UP TO IDENT NO.: F 256526 J 011149
26
COVERING AT CROSS MEMBER BELOW WINDSHIELD,RIGHT,A 776674A 798811
26
COVERING AT CROSS MEMBER BELOW WINDSHIELD,LEFT, UP TO IDENT NO.: F 256526 J 011149
29
LOCK PROTECTIVE GRILLE
32
SHEET METAL SCREW BRACKET TO FIRE WALL, Replaced By: N000000000529
35
CONNECTOR LEFT AND RIGHT COVERING TO CENTRAL PARTITION PANEL
38
SEAL ON LEFT AND RIGHT COVERINGS BELOW CENTRAL PARTITION PANEL 1715 MM, TO BE ADAPTED DURING ASSEMBLY
41
HOSE TROUGH ON THE RIGHT
41
HOSE WATER DRAIN,LEFT
44
DRIP MOULDING BELOW WINDSHIELD
47
BRACKET FOR WATER DRAIN HOSE AT WHEELHOUSE
56
FRAME BATTERY 62-92 AH
59
RAIL OIL TANK TO BRACKET
62
NUT BALL PIVOT TO LEVER
65
WASHER COMPRESSED AIR LINE TO BRACKET
65
WASHER , Replaced By: N009021006208
68
BRACKET BATTERY FRAME,LATERAL
71
WASHER , Replaced By: N009021006208
71
WASHER COMPRESSED AIR LINE TO BRACKET
74
NUT BALL PIVOT TO LEVER
77
RUBBER RING EMERGENCY LANTERN TO CAB
77
SEAL RING
