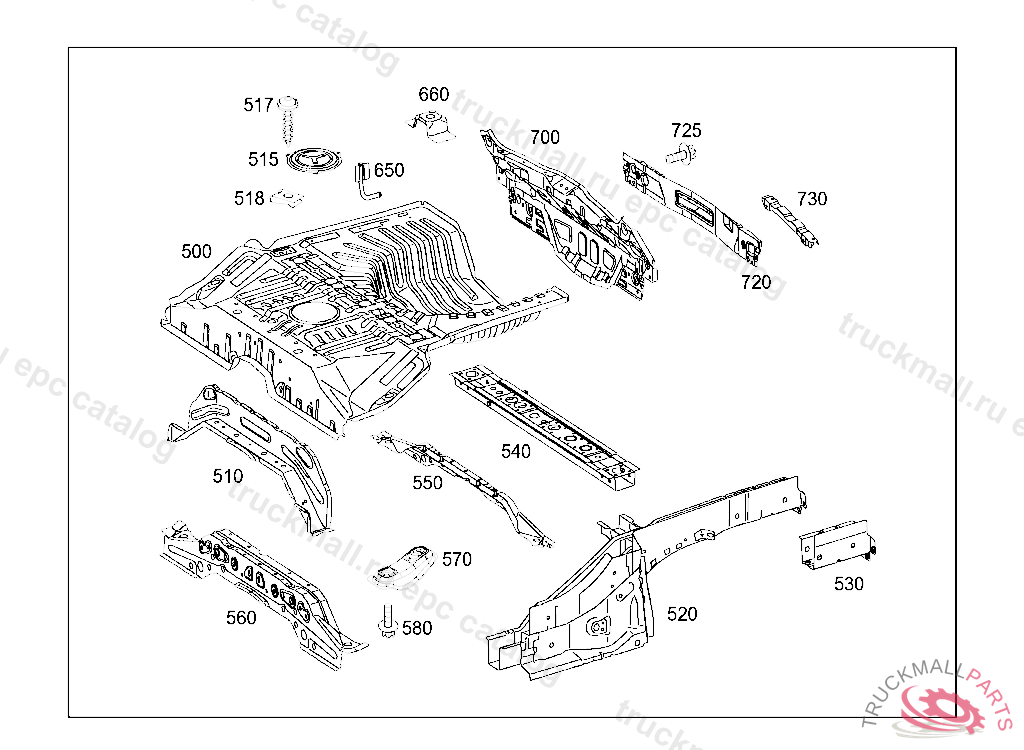

Поз.
Артикул
Описание
500
REAR END FLOOR
510
CROSS MEMBER REAR END FLOOR,FRONT
515
COVER
517
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
518
CLIP FASTENER COVERING TO REAR END FLOOR
520
SIDE MEMBER REAR FLOOR ASSEMBLY RIGHT
520
SIDE MEMBER REAR END FLOOR,LEFT
530
END PIECE LEFT SIDE MEMBER
530
END PIECE RIGHT SIDE MEMBER
540
CROSS MEMBER BEFORE SPARE WHEEL RECESS
550
REINFORCEMENT UNDERNEATH REAR SEAT
560
REINFORCEMENT UNDERNEATH REAR SEAT
570
BRACKET REINFORCEMENT
580
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
580
HEXALOBULAR BOLTM10X20
650
BRACKET EXHAUST PIPE SUSPENSION, OUTSIDE
660
BRACKET SPARE WHEEL CARRIER
700
REAR END CENTER ASSEMBLY END PLATE
720
CROSS MEMBER REAR END
725
SCREW BRACKET TO SIDE MEMBER M8X20
730
BRACKET REAR END,LEFT
730
BRACKET REAR END,RIGHT
