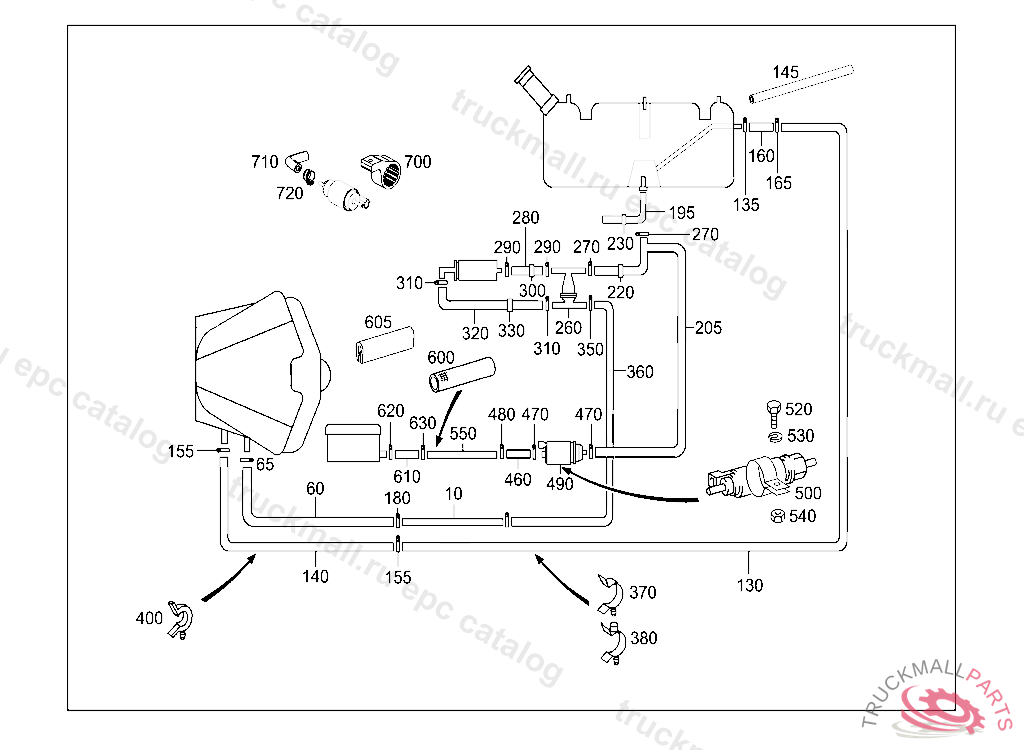

Поз.
Артикул
Описание
10
LINE FEED TO ENGINE 2460X10X0,7 MM
65
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
130
LINE RETURN FROM ENGINE
155
HOSE CLAMP HOSE ATTACHMENT
160
HOSE BETWEEN RETURN LINE AND FUEL TANK, TO BE ADAPTED DURING ASSEMBLY
165
CLAMP HOSE TO FEEDLINE AND ENGINE
165
LOOM TIE FROM COOLING PIPE TO PUMP
195
FUEL HOSE FROM FUEL TANK TO FUEL PUMP
205
FUEL HOSE FROM FUEL TANK TO FUEL PUMP
230
RUBBER RING
260
VALVE OVERFLOW VALVE
280
HOSE FROM OVERFLOW VALVE TO FUEL PUMP/INTAKE SIDE
290
HOSE CLAMP HOSE ATTACHMENT
300
RUBBER RING
310
HOSE CLAMP HOSE ATTACHMENT
320
HOSE FROM FUEL PUMP/PRESSURE SIDE TO OVERFLOW VALVE
330
RUBBER RING
350
CLAMP RETURN LINE TO FILTER 15.5-17.5 MM
360
HOSE FROM OVERFLOW VALVE TO FUEL FEED LINE
370
CLAMP6/14-15 MM
380
BRACKET LINE MOUNTING 11 MM
460
HOSE
460
FUEL LINE BETWEEN HEATER METERING PUMP & FUEL PIPE
470
LOOM TIE. CLIP
470
CLAMP FUEL LINE LEADING TO FEED PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
480
CLAMP FUEL LINE TO FLOOR,RIGHT,B 926099
490
FUEL PUMP. AUXILIARY PUMP , Replaced By: A0004703694
500
CLAMP PUMP TO BRACKET
520
SCREW LICENSE PLATE TO BRACKET
530
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
540
NUT SPRING-LOADED PUSH ROD
600
INSULATING HOSE FROM EXHAUST-GAS TURBOCHARGER VALVE TO CONNECTION,TURBO ACTUATOR VACUUM CELL 245 MM, ORDER BY THE METER
605
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
610
HOSE
620
LOOM TIE
630
CLAMP FUEL LINE TO FLOOR,RIGHT,B 926099
