Поз.
Артикул
Описание

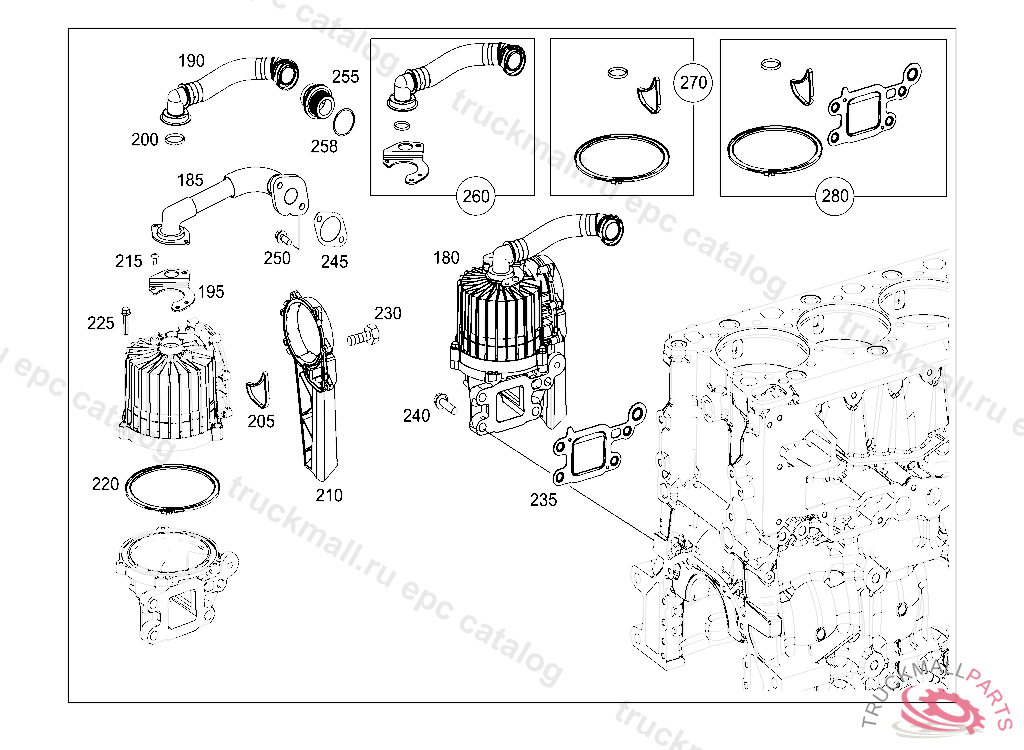

180
OIL SEPARATOR
180
OIL SEPARATOR
180
OIL SEPARATOR , Replaced By: A4720104262
180
OIL SEPARATOR
185
VENT LINE
190
VENT LINE
190
VENT LINE , Replaced By: A4720100670
195
BRACKET
200
O-RING
200
O-RING
205
GASKET
210
COVER
215
SCREW, SPECIAL SHAPE TO VENT LINE
220
GASKET
220
GASKET
225
SCREW W RND. HEXAL. HEAD HOUSING TO HOUSING FLANGE
230
SCREW, SPECIAL SHAPE
235
ELASTOMER-METAL SEAL , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A4720180780
235
ELASTOMER-METAL SEAL
240
SCREW BRACKET TO SIDE MEMBER M10X35
245
ELASTOMER-METAL SEAL VENT TUBE TO CRANKCASE
250
SCREW STOP TO BATTERY CASE
255
SCREW-IN FITTING VENT TUBE TO CRANKCASE, USE UP OLD PART NUMBER UP TO ENGINE S0134000, Replaced By: A0049971371
255
SCREW-IN FITTING
258
SEALING RING
260
RS OIL SEPARATOR
260
RS OIL SEPARATOR
270
RS OIL SEPARATOR
270
RS OIL SEPARATOR
280
RS OIL SEPARATOR
280
RS OIL SEPARATOR
