Поз.
Артикул
Описание

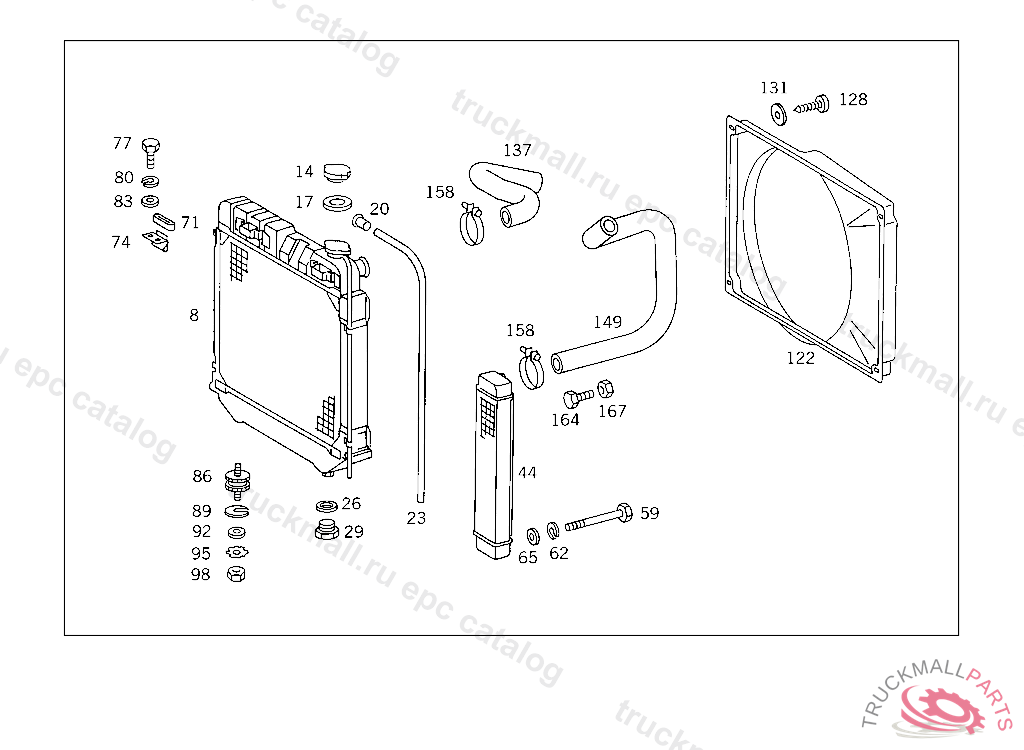

8
RADIATORBEHR, UP TO IDENT NO. 763828 EXCEPT FOR 762813
14
RADIATOR CAP
14
RADIATOR CAP , Replaced By: A0005014115
14
RADIATOR CAP , Replaced By: A4615010015
14
RADIATOR CAP , Replaced By: A0005011715
14
RADIATOR CAP , Replaced By: A0005011715
17
GASKET O.D., 37 MM
20
DRAIN PIPE
23
HOSE OVERFLOW
23
HOSE , Replaced By: A0139978682
23
HOSE MAIN LUBRICATING LINE,PUMP,DISTRIBUTOR 10X2 MM, ORDER BY THE METER
26
SEAL RING FUEL LINE TO FEED PUMP
29
SCREW PLUG WATER DRAIN
29
SCREW PLUG , Replaced By: N007604014101
44
OIL COOLER , UP TO IDENT NO. 763828 EXCEPT FOR 762813
59
SCREW 3/2-WAY VALVE TO BRACKET
62
LOCK WASHER BRACKET TO STEERING COLUMN END
65
WASHER , Replaced By: N000433005304
65
WASHER BOOT TO CAB FLOOR
71
RUBBER MOUNTING RADIATOR MOUNTING,TOP, UP TO IDENT NO. 763828 EXCEPT FOR 762813
74
CLAMP RADIATOR MOUNTING,TOP, UP TO IDENT NO. 763828 EXCEPT FOR 762813
77
SCREW , Replaced By: N304017006016
77
SCREW PUMP TO BRACKET
80
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
83
WASHER COMPRESSED AIR LINE TO BRACKET
83
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
86
RUBBER BUFFER RADIATOR MOUNTING,BOTTOM, UP TO IDENT NO. 763828 EXCEPT FOR 762813
89
WASHER RADIATOR MOUNTING,BOTTOM, UP TO IDENT NO. 763828 EXCEPT FOR 762813
92
WASHER EXHAUST MUFFLER TO STRAP
95
SERRATED WASHER BRACKET TO FIRE WALL
98
NUT
122
FAN SHROUD RADIATOR, UP TO IDENT NO. 763828 EXCEPT FOR 762813
128
SHEET METAL SCREW HEATER UNIT BOTTOM BRACKET TO BODY 4,8X13 MM
131
WASHER , Replaced By: N009021005205
131
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
137
HOSE TOP, UP TO IDENT NO. 763828 EXCEPT FOR 762813
149
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.281867, Replaced By: A6015012582
149
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.682754, Replaced By: A6015012682
149
HOSE BOTTOM, UP TO IDENT NO. 763828 EXCEPT FOR 762813
158
CLAMP , Replaced By: A0069970590
158
LOOM TIE
164
SCREW BRACKET TO TAIL LAMP BRACKET
167
NUT , Replaced By: N304032005005
167
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
BRACKET ,558570 P 000001
