Mercedes N000000000319 - ХОМУТ

1628,2228,2428 620.016

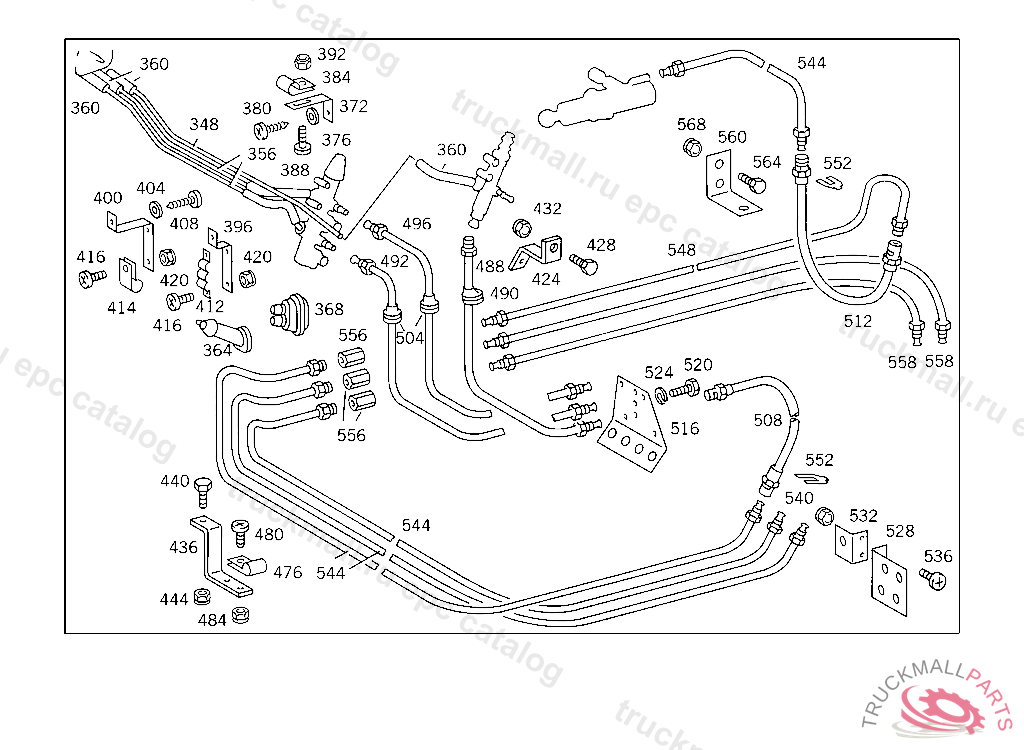

29 PEDAL ASSEMBLY - 001 PEDAL ASSEMBLY IL. 3
  • Поз.
    Артикул
    Описание
  • 348
    PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR 10X700 MM
  • 348
    PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR 10X700 MM
  • 348
    PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR, 415 5 014668 416 5 000515 417 4 972023
  • 348
    PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR, 415 5 014668 416 5 000515 417 4 972023
  • 356
    PIPE FROM BRAKE MASTER CYLINDER TO RESERVOIR 550 MM, 415 5 014668 416 5 000515 417 4 972023
  • 360
    HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
  • 364
    GROMMET CLUTCH LINE THRU CAB WINDOW SILL
  • 364
    GROMMET CLUTCH LINE THRU CAB WINDOW SILL,4 797364
  • 368
    GROMMET BRAKE LINE THRU CAB WINDOW SILL, 415 5 014668 416 5 000515 417 4 972023
  • 372
    BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
  • 372
    BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
  • 376
    WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
  • 376
    WASHER COMPRESSED AIR LINE TO BRACKET
  • 376
    WASHER COMPRESSED AIR LINE TO BRACKET
  • 380
    SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
  • 380
    SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
  • 384
    CLAMP LINE MOUNTING
  • 388
    SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
  • 392
    NUT , Replaced By: N913004006001
  • 392
    NUT PUMP TO BRACKET
  • 396
    BRACKET HYDRAULIC LINE TO CAB, 415 5 014668 416 5 000515 417 4 972023
  • 400
    BRACKET HYDRAULIC LINE TO CAB, 415 5 014668 416 5 000515 417 4 972023
  • 404
    WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
  • 404
    WASHER COMPRESSED AIR LINE TO BRACKET
  • 408
    SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
  • 412
    CLAMP HYDRAULIC LINE TO BRACKET
  • 414
    CLAMP LINE MOUNTING
  • 416
    SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
  • 420
    NUT , Replaced By: N913004006001
  • 420
    NUT PUMP TO BRACKET
  • 424
    BRACKET BRAKE AND CLUTCH LINES, 415 5 014668 416 5 000515 417 4 972023
  • 428
    SCREW BRACKET TO CROSS CONNECTION STRUT
  • 428
    SCREW , Replaced By: N304017008034
  • 432
    HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
  • 432
    NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
  • 432
    NUT , Replaced By: N913004008001
  • 436
    BRACKET BRAKE AND CLUTCH LINES, 415 5 014668 416 5 000515 417 4 972023
  • 440
    SCREW CONSOLE TO SIDE MEMBER
  • 444
    NUT SUPPORT TO SIDE MEMBER
  • 476
    CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
  • 476
    CLAMP ,K 147121, Replaced By: N000000000319
  • 476
    CLAMP , Replaced By: N916016008200
  • 476
    CLAMP , Replaced By: A3604300143
  • 480
    SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
  • 484
    NUT PUMP TO BRACKET
  • 484
    NUT , Replaced By: N913004006001
  • 488
    LINE FROM VALVE TO CONNECTION FITTING,K 172343
  • 488
    LINE , Replaced By: A3812903214
  • 488
    LINE , Replaced By: A3812901714
  • 488
    LINE , Replaced By: A3812901714
  • 490
    GROMMET BATTERY CASE
  • 490
    GROMMET , Replaced By: A3149970581
  • 492
    LINE FROM ENGINE-MOUNTING BRACKET TO CLUTCH BOOSTER 550 MM, TO BE ADAPTED DURING ASSEMBLY
  • 492
    LINE , Replaced By: A3812901614
  • 496
    LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
  • 496
    LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
  • 496
    LINE , Replaced By: A3812901814
  • 496
    LINE HYDRAULIC HOSE TOWARDS CLUTCH BOOSTER 800 MM,5 401291 TO BE ADAPTED DURING ASSEMBLY
  • 496
    LINE , Replaced By: A3812901914
  • 504
    GROMMET TEMPERATURE GAUGE SENDER UNIT
  • 508
    HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET 555 MM
  • 508
    HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET 555 MM
  • 512
    HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET
  • 512
    HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 350 MM
  • 512
    HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 215 MM
  • 516
    BRACKET HYDRAULIC LINE TO CAB FLOOR
  • 516
    BRACKET HYDRAULIC LINE, 415 5 014668 416 5 000515 417 4 972023
  • 520
    SCREW COVER PLATE TO BRACKET
  • 524
    LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
  • 528
    BRACKET LINES TO BRACKET
  • 532
    BRACKET LINES TO BRACKET
  • 536
    SCREW CLAMP MOUNTING M 6X16
  • 536
    SCREW , Replaced By: N000000001146
  • 540
    NUT PUMP TO BRACKET
  • 540
    NUT , Replaced By: N913004006001
  • 544
    LINE FROM ENGINE-MOUNTING BRACKET TO CLUTCH BOOSTER 550 MM, TO BE ADAPTED DURING ASSEMBLY
  • 544
    LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
  • 544
    LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
  • 544
    LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
  • 544
    LINE , Replaced By: A3812902014
  • 544
    LINE , Replaced By: A3812902713
  • 548
    LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
  • 548
    LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
  • 548
    LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
  • 548
    LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
  • 548
    LINE , Replaced By: A3812902214
  • 552
    MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
  • 552
    BRACKET. LOCK , Replaced By: A6525040038
  • 556
    INTERMEDIATE PIECE CLUTCH HOSE,K 172342
  • 558
    LINE FROM CONNECTOR TO BRAKE SLAVE CYLINDER 4000 MM, 415 5 014668 416 5 000515 417 4 972023
  • 558
    LINE , Replaced By: A3812902614
  • 558
    LINE , 415 5 014668 416 5 000515 417 4 972023, Replaced By: A3812902614
  • 558
    LINE , Replaced By: A3812902414
  • 560
    BRACKET FRAME-TO-ENGINE CLUTCH-HOSE TO FRAME, NOT USED
  • 564
    SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
  • 568
    NUT STRAP TO BRACKET
  • 568
    NUT , Replaced By: N910113010000
  • 999
    BOOTTO 001 295 30 06
  • 999
    SEAL RING , Replaced By: A0009940747
  • 999
    LOCK RING LINE CONNECTION
  • 999
    LOCK , Replaced By: A0009945448
  • 999
    LOCK LINE CONNECTION
  • 999
    SCREW. UNION SCREW , Replaced By: A0009973734
  • 999
    SCREW. UNION SCREW LINE CONNECTION
  • 999
    GASKET KIT 3/2-WAY VALVE
  • 999
    BRACKET , Replaced By: A3604292940
  • 999
    ANGLE LINE MOUNTING
  • 999
    WASHER , Replaced By: N001440027000
  • 999
    LINE FROM FAN SHROUD BRACKET TO FITTING 2500 MM
  • 999
    ROD OVER-CENTER ACTING SPRING
  • 999
    ROD OVER-CENTER ACTING SPRING
  • 999
    PIN PUSH ROD TO PEDAL
  • 999
    BRACKET OIL TANK
  • 999
    BRACKET BRACKET TO FAN SHROUD BRACKET
  • 999
    BRACKET 3/2-WAY VALVE, UP TO IDENT NO.5 238024,FROM IDENT NO. SEE GROUP 29
  • 999
    LINE , Replaced By: A3812901814
  • 999
    LINE , Replaced By: A3812902314
  • 999
    LINE , Replaced By: A3812902014
  • 999
    LINE , Replaced By: A3812902314
  • 999
    BRACKET HYDRAULIC LINE TO ENGINE MOUNTING
  • 999
    BRACKET , Replaced By: A6202954440
  • 999
    BRACKET HYDRAULIC LINE TO TRANSMISSION,5 309561
  • 999
    BRACKET PEDAL BEARING BRACKET
  • 999
    BRACKET 3/2-WAY VALVE TO PEDAL BEARING BRACKET
  • 999
    BRACKET HYDRAULIC LINE TO TRANSMISSION
  • 999
    BRACKET FUEL LINES TO TRANSMISSION
  • 999
    GROMMET CLUTCH LINE THRU CAB WINDOW SILL,4 797365
  • 999
    BRACKET AT ENGINE,RIGHT,5 341190
  • 999
    SPRING WASHER STEERING COLUMN BRACKET TO CAB
  • 999
    SCREW COVER PLATE TO BRACKET
  • 999
    SCREW BRACKET ON LOAD SENSOR
  • 999
    SCREW , Replaced By: N304017008027
  • 999
    SCREW , Replaced By: N304017016011
  • 999
    STUD BOLT BRACKET TO TRANSMISSION
  • 999
    WASHER VALVE TO BRACKET
  • 999
    WASHER SUPPORTING RAIL TO SUPPORT,5 429712
  • 999
    SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
  • 999
    SCREWM 16X25
