Поз.
Артикул
Описание
5

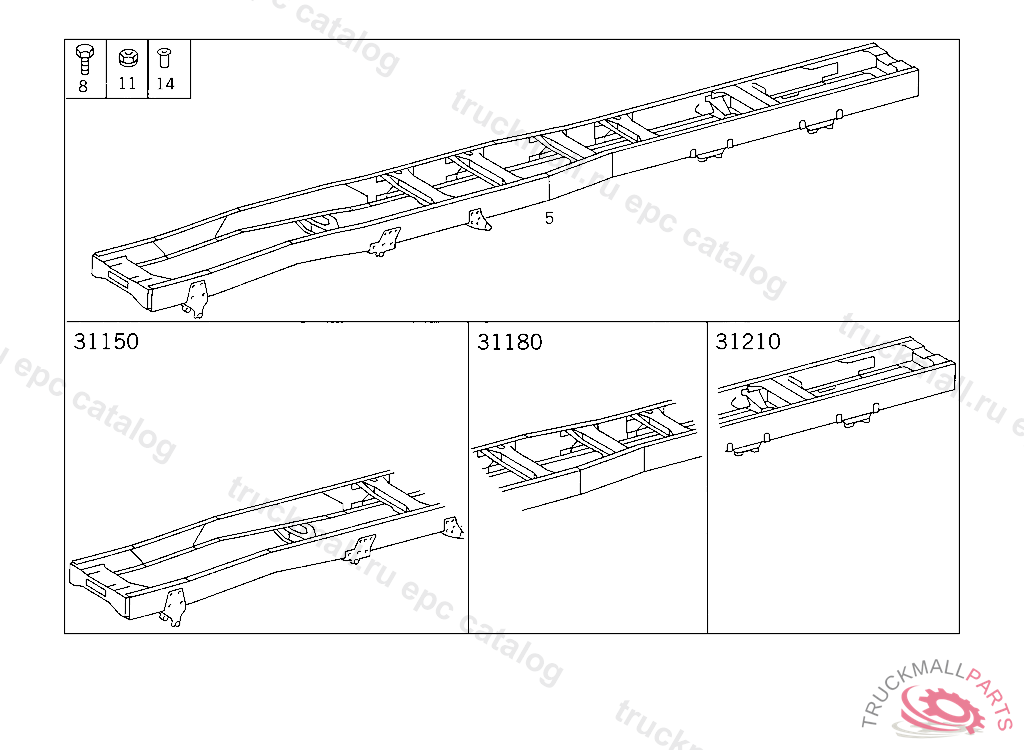

FRAME
8
SCREWM 18X18X23X45
8
SCREWM 12X12X13X28
8
SCREWM 14X14X32X50
8
SCREWM 16X17X28X48
8
SCREWM 12X13X25X42
8
FITTED SCREWM 18X19X57X85
8
SCREWM 14X15X29X46
8
SCREWM 12X13X15X32
8
SCREWM 12X13X35X52
8
SCREWM 12X13X23X40
8
SCREWM 14X15X27X44
8
FITTED SCREWM 10X11X24X40
8
SCREWM 14X15X21X38
8
SCREWM 16X17X24X44
8
SCREWM 14X14X18X34
8
SCREWM 12X12X10X25
8
SCREWM 16X17X22X42
8
SCREWM 14X14X18X32
8
SCREW , Replaced By: N000961016118
8
SCREWM 14X14X27X45
8
FITTED SCREWM 18X19X38X60
8
SCREWM 16X16X22X40
8
SCREWM 16X16X20X38
8
SCREWM 16X16X20X45
8
SCREW , Replaced By: A0009906314
8
SCREWM 16X16X24X42
8
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
8
SCREWM 12X13X58X80
8
SCREWM 14X15X17X34
8
SCREWM 14X14X24X42
8
SCREW PLATE TO SIDE MEMBER
8
SCREWM 12X14X13X35
8
SCREW , Replaced By: A3229903101
8
SCREWM 12X13X63X85
8
SCREW , Replaced By: A3959900501
8
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
8
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
8
SCREW , Replaced By: N308676012013
8
SCREWM 14X15X18X35
8
SCREWM 18X18X33X55
8
SCREWM 16X18X26X48
8
SCREWM 12X13X21X38
8
SCREWM 12X13X12X29
8
SCREWM 16X18X63X85
8
FITTED SCREWM 10X11X14X28
8
SCREW , Replaced By: N000961018043
8
SCREWM 16X16X38X90
8
SCREWM 12X13X13X30
8
SCREW , Replaced By: A0029908201
8
SCREW , Replaced By: A3169900014
8
FITTED SCREWM 10X11X25X38
8
SCREW , Replaced By: N308676016020
8
SCREWM 14X15X35X52
8
FITTED SCREWM 18X19X25X45
8
SCREW CONSOLE TO FRAME
8
SCREWM 16X16X32X50
8
SCREWM 14X15X15X32
8
SCREWM 14X15X19X36
8
SCREWM 16X18X38X60
8
SCREWM 14X14X22X40
8
SCREWM 12X13X18X35
8
SCREWM 14X15X31X48
8
SCREWM 14X14X17X35
8
SCREWM 12X12X11X26
8
SCREWM 16X18X18X40
8
SCREWM 10X11X26.5X46
8
FITTED SCREWM 18X19X33X55
8
HEXAGON HEAD BOLT , Replaced By: A0029902704
11
NUT CONSOLE TO SUPPORT
11
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
11
NUT , Replaced By: N910113012003
11
NUT , Replaced By: N910113016001
11
NUT TORSION BAR TO BEARING BRACKET,5 904661
11
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
11
NUT STEERING SUPPORT TO FRAME
11
NUT , Replaced By: N910113014000
14
RIVET FRAME TRUSS TO SIDE MEMBER
14
RIVET14X70 MM, TO BE ADAPTED DURING ASSEMBLY
14
RIVET14X70 MM, TO BE ADAPTED DURING ASSEMBLY
14
RIVET REAR CROSS MEMBER 12X42 MM
14
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
14
RIVET16X48 MM, TO BE ADAPTED DURING ASSEMBLY
14
RIVET16X58 MM, TO BE ADAPTED DURING ASSEMBLY
14
RIVET16X58 MM, TO BE ADAPTED DURING ASSEMBLY
14
RIVET16X58 MM, TO BE ADAPTED DURING ASSEMBLY
14
RIVET14X55 MM, TO BE ADAPTED DURING ASSEMBLY
14
RIVET REAR CROSS MEMBER 10X38 MM
999
SCREWM 12X12X17X32
999
SCREWM 12X12X15X30
999
SCREWM 16X16X30X48
