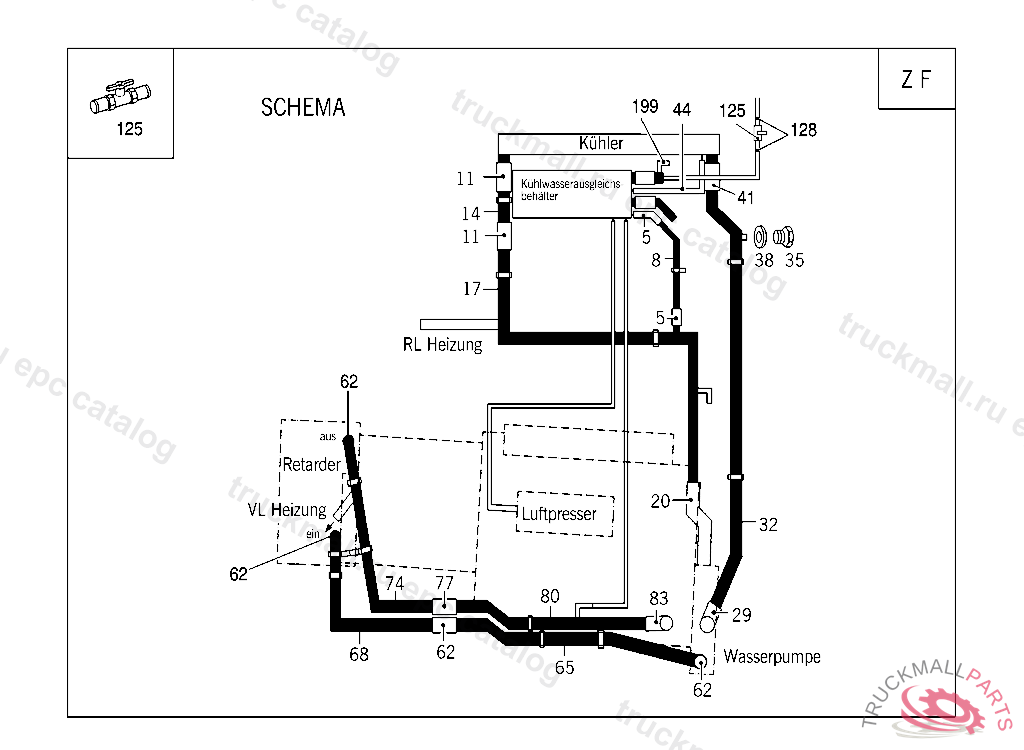

Поз.
Артикул
Описание
5
HOSE FROM WATER PUMP TO EXPANSION TANK 28X37X80,5 022370 ORDER BY THE METER
5
HOSE
5
HOSEA28, B37, L100
5
HOSE LINE CONNECTIONS
8
COOLING WATER PIPE FROM EXPANSION TANK TO COOLING WATER PIPE
11
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
14
COOLING WATER PIPE FROM RADIATOR TO WATER PUMP
17
COOLANT LINE. LINE FROM RADIATOR TO WATER PUMP
17
LINE FROM RADIATOR TO WATER PUMP
20
HOSE BLUE
20
MOLDED HOSE. HOSE FROM RADIATOR TO ENGINE
29
MOLDED HOSE 90-DEGREE ARC 60MM
29
HOSE BLUE
32
LINE WATER PUMP TO COOLER WITHOUT SENSOR CONNECTION
32
LINE WATER PUMP TO COOLER WITH SENSOR CONNECTION
35
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
35
SCREW PLUGROCKINGER,TYP 59 U150
35
SCREW PLUG WATER DRAIN
38
SEALING RING. SEAL RING ENGINE BREATHING
38
SEAL RING LINE CONNECTION
41
HOSE COOLING WATER LINE TO COOLING WATER LINE
41
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
44
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
44
HOSE RADIATOR DE-AERATION HOSE
44
HOSE RADIATOR DE-AERATION HOSE
62
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
65
COOLING WATER PIPE , Replaced By: A6285018624
65
COOLING WATER PIPE FEED, FROM ENGINE TO RETARDER
68
COOLING WATER PIPE FEED, FROM ENGINE TO RETARDER
74
LINE RETURN, FROM RETARDER TO ENGINE
74
LINE , Replaced By: A6285004272
77
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
80
LINE RETURN, FROM RETARDER TO ENGINE
83
HOSE COOLING WATER FEED LINE
83
HOSE 90 DEGREES A85, B85, D50, R55
125
DRAIN COCK
128
HOSE FROM L.P.G. REGULATOR TO THERMOSTAT HOUSING
199
HOSE BATTERY VENTING 11 X 2 MM, ORDER BY THE METER
