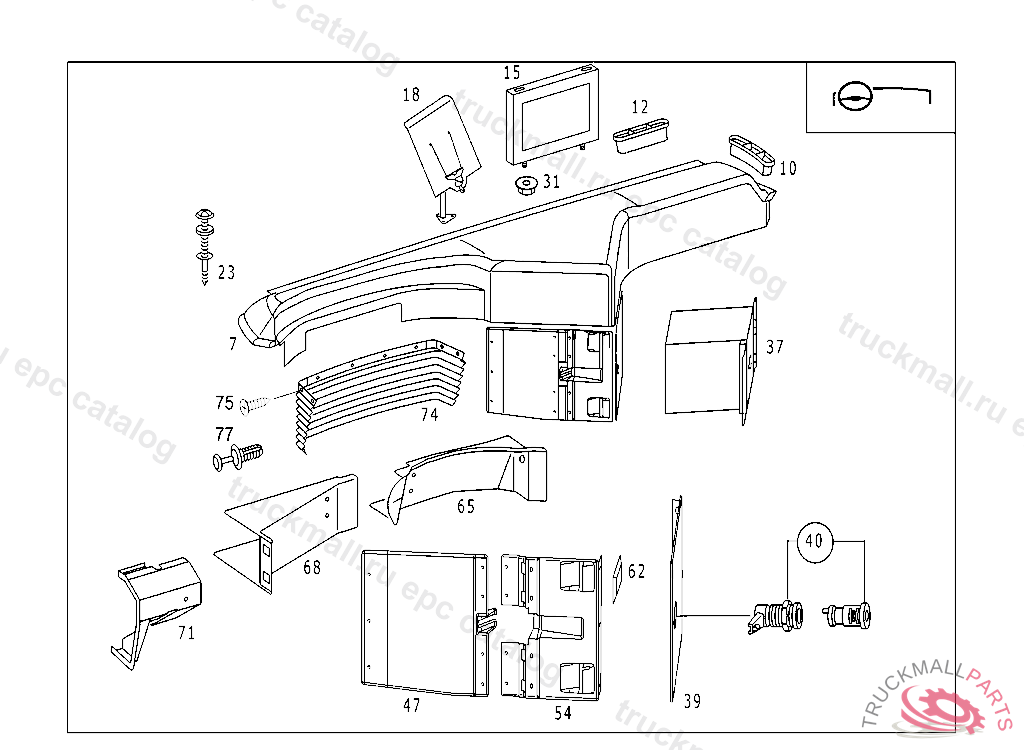

Поз.
Артикул
Описание
7
PANELLING WINDOW SILL 2550 MM, NO.7C52INO.8316 I I II I
7
PANELLING WINDOW SILL 2500 MM, NO.7C52INO.8316 I I II I
10
DEFROSTER NOZZLE WITH SLANTING DISKS
12
AIR DUCT WITH STRAIGHT DISKS
15
BRACKET
18
BRACKET SCHEDULE BOARD, NO.7327I....... I I II I .......INO.8425 I I II I
23
RIVET WATER BAFFLE TO CROSS MEMBER,A 166303
31
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
31
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
37
PIGEONHOLE LOST PROPERTY COMPARTMENT
37
PIGEONHOLE STRONG-BOX, NO.7331I....... I I II I
39
PANELLING PIGEONHOLE, NO.7C52I....... I I II I
40
FASTENER PIGEONHOLE
47
PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
54
PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
62
RUBBER BUFFER TO GLASS PANE,BOTTOM
65
COVERING LEGROOM,RIGHT
68
COVERING LEGROOM,LEFT, NO.7C01I....... I I II I
68
COVERING LEGROOM,LEFT
71
COVERING LEGROOM,LEFT EPS
71
COVERING LEGROOM,LEFT EPS
74
PANELLING BELLOWS
75
SHEET METAL SCREW ,F 122555
77
RIVET RESERVOIR TO FIRE WALL
