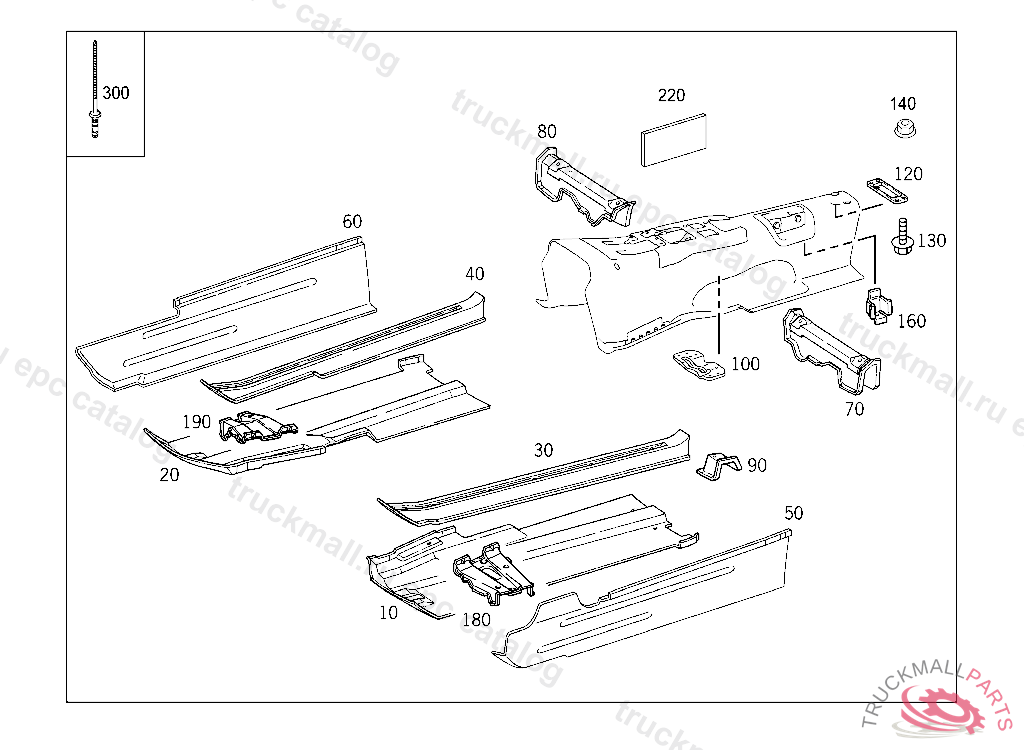

Поз.
Артикул
Описание
10
MAIN FLOOR LEFT
20
MAIN FLOOR RIGHT
30
SIDE MEMBER FRONT LEFT
40
SIDE MEMBER FRONT RIGHT
50
TUBE INSIDE LEFT
60
TUBE INSIDE RIGHT
70
CROSS MEMBER BELOW FRONT SEAT,FRONT LEFT
80
CROSS MEMBER BELOW FRONT SEAT,FRONT RIGHT
90
CONSOLE BELOW FRONT SEAT,REAR RIGHT
90
CONSOLE BELOW FRONT SEAT,REAR LEFT
100
STIFFENING FRONT SEAT CROSS MEMBER
120
END PIECE TRANSMISSION TUNNEL,REAR
130
COMBINATION BOLT PLUG CONNECTION
140
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
160
TAKE-UP DEVICE PROPELLER SHAFT BEARING,RIGHT
160
TAKE-UP DEVICE PROPELLER SHAFT BEARING,LEFT
180
REINFORCEMENT AT FLOOR,FRONT LEFT
190
REINFORCEMENT AT FLOOR,FRONT RIGHT
220
STRIP LEFT REAR ROOF RAIL, ORDER BY THE METER
220
PAD FLOOR,RIGHT, Replaced By: A1168990297
220
FELT STRIP70X25 MM
300
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
