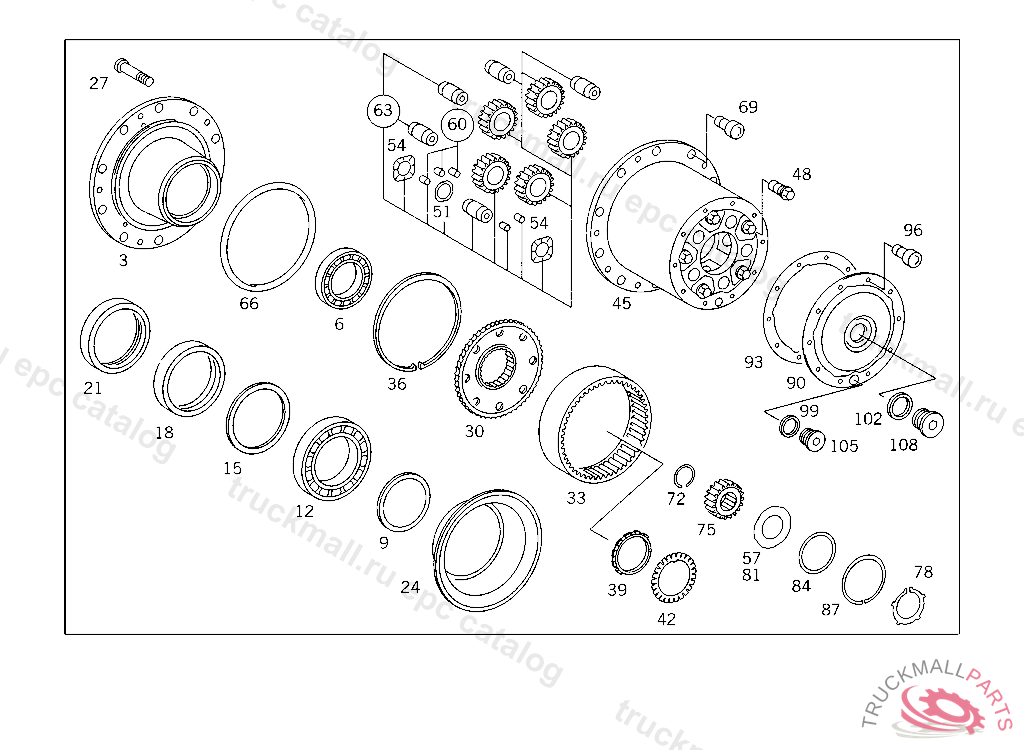

Поз.
Артикул
Описание
3
WHEEL HUB , Replaced By: A3463561101
3
WHEEL HUB
6
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
6
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
6
TAPERED ROLLER BEARING WHEEL HUB, OUTSIDE
9
OIL COLLECTOR WHEEL HUB, INSIDE,V 361112
12
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
12
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
12
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
12
TAPERED ROLLER BEARING WHEEL HUB, INSIDE
15
COVER PLATE WHEEL BEARING
18
SEAL RING , Replaced By: A0139979467
18
SEAL RING , Replaced By: A0139979467
18
SEAL RING , Replaced By: A0139979447
18
SEAL RING WHEEL HUB, INSIDE, ORDER ADDITIONALLY: A 015 997 49 47
21
SEAL RING , FIRST EXHAUST STOCK OF OLD PARTS UP TO REAR AXLE V 354181, Replaced By: A0209973947
21
SEAL RING FRONT WHEEL HUB,OUTSIDE, ONLY APPLICABLE TO MODELS: 748.271
21
SEAL RING WHEEL HUB, INSIDE
24
OIL COLLECTOR
27
WHEEL MOUNTING BOLT DISC WHEEL ON WHEEL HUB
27
WHEEL MOUNTING BOLT LIGHT-ALLOY-SHEET DISC WHEEL, Replaced By: A0004013771
30
SUPPORT OUTSIDE GEAR, LKWW 972499, BUSW974540
30
SUPPORT OUTSIDE GEAR,PLANETARY GEAR TRAIN,V 207324
33
OUTSIDE GEAR ,W 874844, V000001W 972499
33
OUTSIDE GEAR NUMBER OF TEETH: 85
33
OUTSIDE GEAR NUMBER OF TEETH: 85
36
WIRE RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3469940439
36
WIRE RING OUTSIDE GEAR TO SUPPORT
39
GROOVED NUT , Replaced By: A9423560126
39
GROOVED NUT WHEEL HUB TO REAR AXLE TUBE
39
GROOVED NUT HUB AND SUPPORT TO AXLE CASING
42
LOCK PLATE WHEEL HUB TO AXLE JOURNAL
45
BELL HUB WITH PLANETARY CARRIER, LKW W 972500, BUS W974541, V 000001
45
PLANETARY GEARING
45
BELL HUB WITH PLANETARY CARRIER,V 156242
45
PLANETARY GEARING
45
PLANETARY GEARING RATIO: 1:3.429,V 207324, Replaced By: A9423501809
45
BELL HUB , Replaced By: A3463507433
45
BELL HUB WITH PLANETARY CARRIER, LKW W 972500, BUS W974541, V 000001, Replaced By: A0003500633
48
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
48
SCREW MAIN TRANSMISSION PLANETARY GEAR SET ON PLANETARY GEAR TRAIN
51
THRUST WASHER PLANET GEAR
54
THRUST WASHER PLANET GEAR
54
THRUST WASHER , Replaced By: A3463541362
57
GUARD PLATE PLANETARY GEAR TRAIN
60
NEEDLE PLANET GEAR
60
NEEDLE BEARING NEEDLES, SET50 PIECES
63
PLANET GEAR PARTS KIT
63
PLANET GEAR PARTS KIT
66
SEAL RING PLANETARY GEAR TRAIN TO REAR WHEEL HUB
66
SEAL RING , Replaced By: A0169974048
69
CYLINDRICAL HEAD SCREW. SCREW TIGHTENER PULLEY TO LEVER M 12X1.5X30, 362 842770 364 012804 EXCEPT FOR 012768,012771,021773,012776,012779-012785 366 048719
72
SNAP RING
75
SUN GEAR NUMBER OF TEETH: 23, LKWW 972499, BUSW974540
75
SUN GEAR NUMBER OF TEETH: 35
78
LOCK RING45X1.75 MM
81
GUARD PLATE PLANETARY GEAR TRAIN
84
SPACER WASHER AS REQUIRED 0.50 MM, MAN AXLE
84
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.20 MM
84
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 0.10 MM
84
SPACER WASHER PLANETRAY TRANSMISSION, IF REQUIRED 1.50 MM
87
LOCK RING , Replaced By: N000472105001
87
LOCK RING THRUST WASHER TO BELL HUB
90
END COVER , Replaced By: A6243560020, +001A6503560080, +001A6249970032, +010N914146010401
90
HUB CAP BELL HUB
93
GASKET COVER TO HUB
93
GASKET COVER TO BELL HUB, MAN AXLE
96
SCREW COVER TO BELL HUB
96
SCREW BRACKET TO SIDE MEMBER
96
SCREW AIR BAFFLE TO RADIATOR BASE FRAME, Replaced By: A0009906404
99
SEALING RING. SEAL RING OIL DRAIN
102
SEALING RING OIL FILLING
105
SCREW PLUG , Replaced By: A2109970132
105
SCREW PLUG OIL DRAIN
108
SCREW PLUG OIL FILLING
