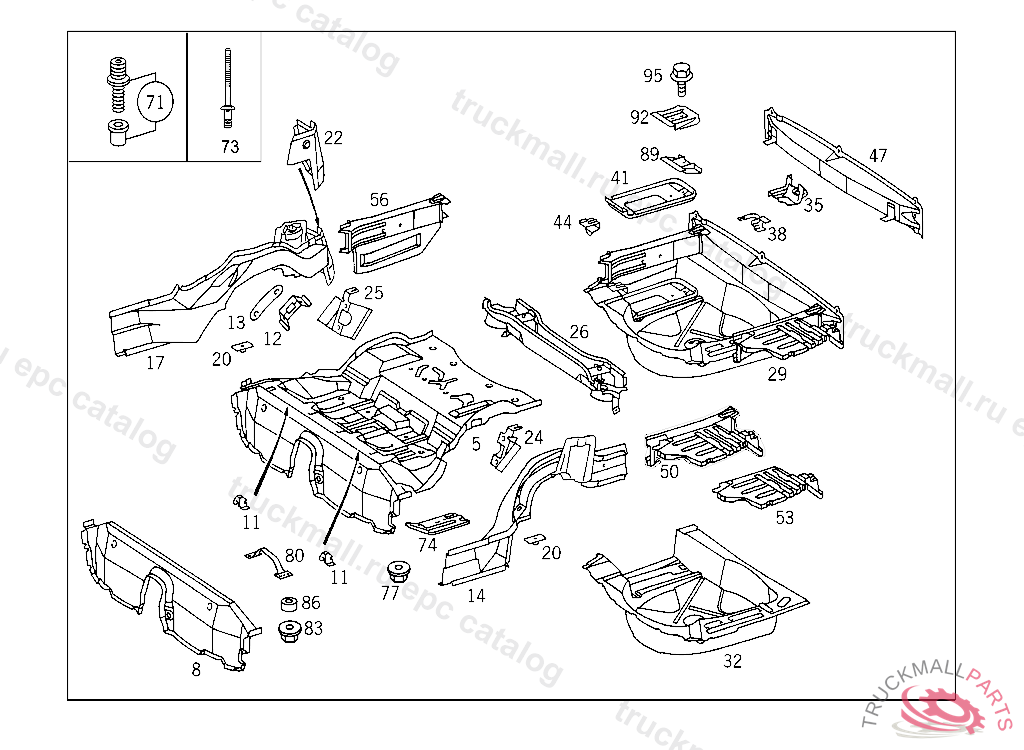

Поз.
Артикул
Описание
5
FLOOR BELOW REAR SEAT BENCH
8
CROSS MEMBER BELOW REAR SEAT BENCH
11
BRACKET SEAT MOUNTING
12
BRACKET ON FLOOR UNDERNEATH CENTER REAR SEAT WITH FOLDING REAR BACKREST
13
BRACKET ON FLOOR UNDERNEATH CENTER REAR SEAT WITH FOLDING REAR BACKREST
14
SIDE MEMBER REAR SIDE MEMBER,FRONT LEFT PART
17
SIDE MEMBER , Replaced By: A2086100810
17
SIDE MEMBER , Replaced By: A2026101410
17
SIDE MEMBER REAR SIDE MEMBER,FRONT RIGHT PART
20
PLATE REAR SUBFRAME FRONT MOUNTING
22
END PIECE AT SHOCK ABSORBER CONSOLE,REAR RIGHT
24
BRACKET ON SIDE MEMBER,LEFT WITH FOLDING REAR BACKREST
25
BRACKET ON SIDE MEMBER,RIGHT WITH FOLDING REAR BACKREST
26
CROSS MEMBER ABOVE REAR AXLE, UP TO IDENT NO: A 384233, F 378737 NEW SPRINGS FOR THE REAR AXLE (REFER TO DESIGN GROUP 32) ALSO TO BE ORDERED
26
CROSS MEMBER , A 341029 F 313176, Replaced By: A2026100316
26
CROSS MEMBER , A 341028 F 313175, Replaced By: A2026100216, +002A2104280035
29
FLOOR REAR END FLOOR CONNECTOR
32
SPARE WHEEL WELL
35
CLAMP TOWING BRACKET
38
CONSOLE
41
FRAME BATTERY FRAME
44
STAY BATTERY FRAME
47
CROSS MEMBER REAR, TO BE ADAPTED DURING ASSEMBLY
50
SIDE MEMBER REAR LEFT
53
FLOOR AT LEFT SIDE MEMBER
56
SIDE MEMBER REAR RIGHT
71
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
74
REINFORCEMENT AT FLOOR,BELOW REAR SEAT BENCH
77
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
80
CLAMP AT FLOOR,BELOW REAR SEAT BENCH
83
NUT LINKAGE TO TRANSMISSION AND SHIFTING TUBE
86
SEAL AT FLOOR,BELOW REAR SEAT BENCH
92
RAIL BATTERY TO BATTERY CASE
92
RAIL BATTERY TO BATTERY FRAME 74 AH
95
SCREW STRUT TO RIGHT BOTTOM CROSS MEMBER AND TO TUNNEL M8X20
