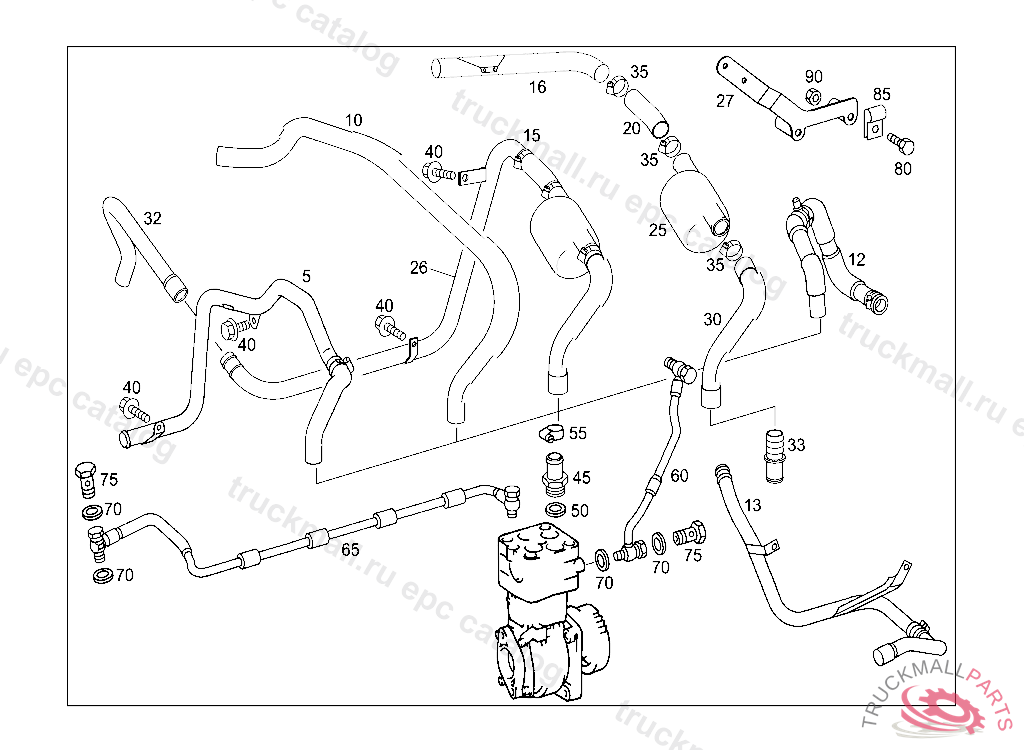

Поз.
Артикул
Описание
5
SUCTION LINE
15
SUCTION LINE
15
SUCTION LINE
15
SUCTION LINE
20
PIPE ,535552
25
MUFFLER FROM AIR INTAKE PIPE TO AIR COMPRESSOR
26
SUCTION LINE
30
SUCTION LINE. INTAKE PIPE
30
SUCTION LINE
30
PIPE ,535552
35
CLAMP , Replaced By: A0069974290
40
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
40
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
45
FITTING AT AIR COMPRESSOR
45
FITTING AIR COMPRESSOR,CONNECTION: "10"
50
SEAL RING
55
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
55
CLAMP HOSE FASTENING 28-35 MM,V 207570
55
CLAMP , Replaced By: N000000000667
60
LINE , Replaced By: A9062030402
60
LINE ON CYLINDER HEAD AND AIR COMPRESSOR
60
LINE ON CYLINDER HEAD AND AIR COMPRESSOR
65
LINE ON AIR COMPRESSOR AND WATER PUMP
65
COOLANT LINE ON AIR COMPRESSOR AND WATER PUMP
70
SEALING RING
70
SEAL RINGTO 000 553 03 05,000 553 18 05,
75
HOLLOW SCREW 3/2-WAY VALVE,CONNECTION: "2,3"
75
SCREW
