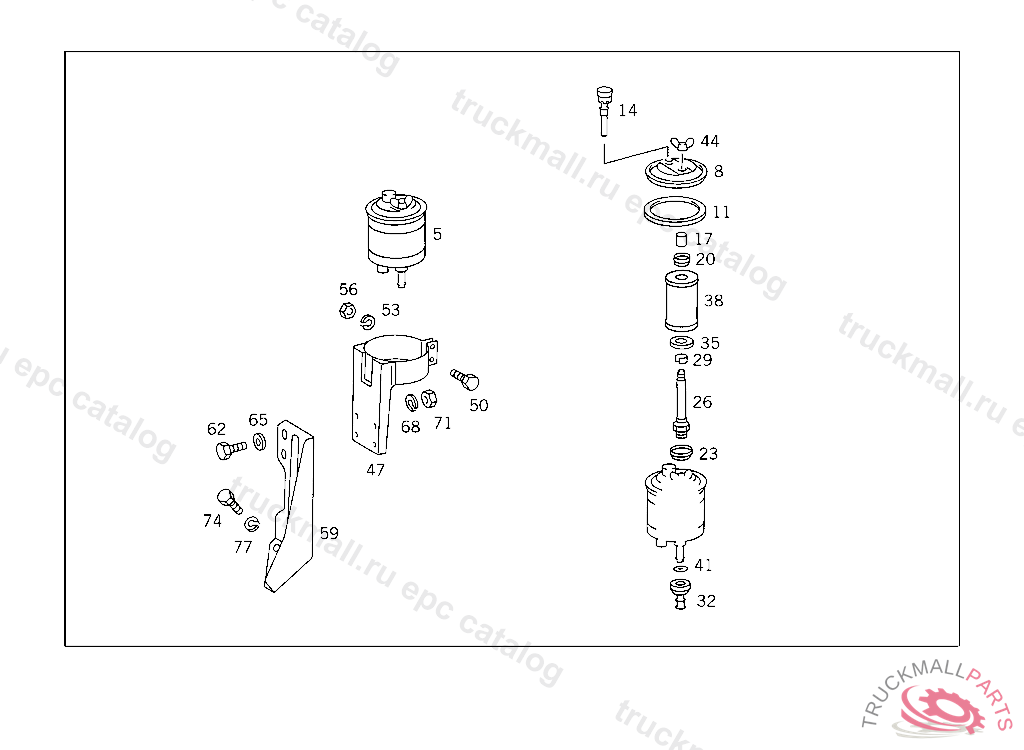

Поз.
Артикул
Описание
5
TANK OIL
5
TANK , Replaced By: A0004664502
5
TANK OIL
8
COVERTO 000 466 38 02
11
SEAL RINGTO 000 466 38 02
14
PIPETO 000 466 38 02
17
RUBBER SLEEVETO 000 466 38 02
20
CENTERING RINGTO 000 466 38 02
23
COVER PLATETO 000 466 38 02
26
FILTER SUPPORT
29
SPACER TUBETO 000 466 38 02
32
CONNECTORTO 000 466 38 02
35
WASHER , Replaced By: A9402680552
38
FILTER
41
SEAL RINGTO 000 466 38 02
44
NUT , Replaced By: A0009901562
47
BRACKET OIL TANK TO 384 466 70 02,000 466 38 02
47
BRACKET OIL TANK TO 000 466 45 02
50
SCREW OIL TANK TO CLAMP
53
LOCK WASHER CLAMP TO BRACKET
56
NUT , Replaced By: N304032006004
59
BRACKET OIL TANK
62
SCREW BRAKE CYLINDER TO BRAKE ANCHOR PLATE
65
WASHER , Replaced By: N000125010532
68
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
71
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
74
SCREW BRACKET TO TRANSMISSION M012X1,5X20
77
LOCK WASHER BRACKET TO SUPPORTING ARM
