Mercedes A2046828671 - Экран

C 320 CDI / C350 CDI 204.222

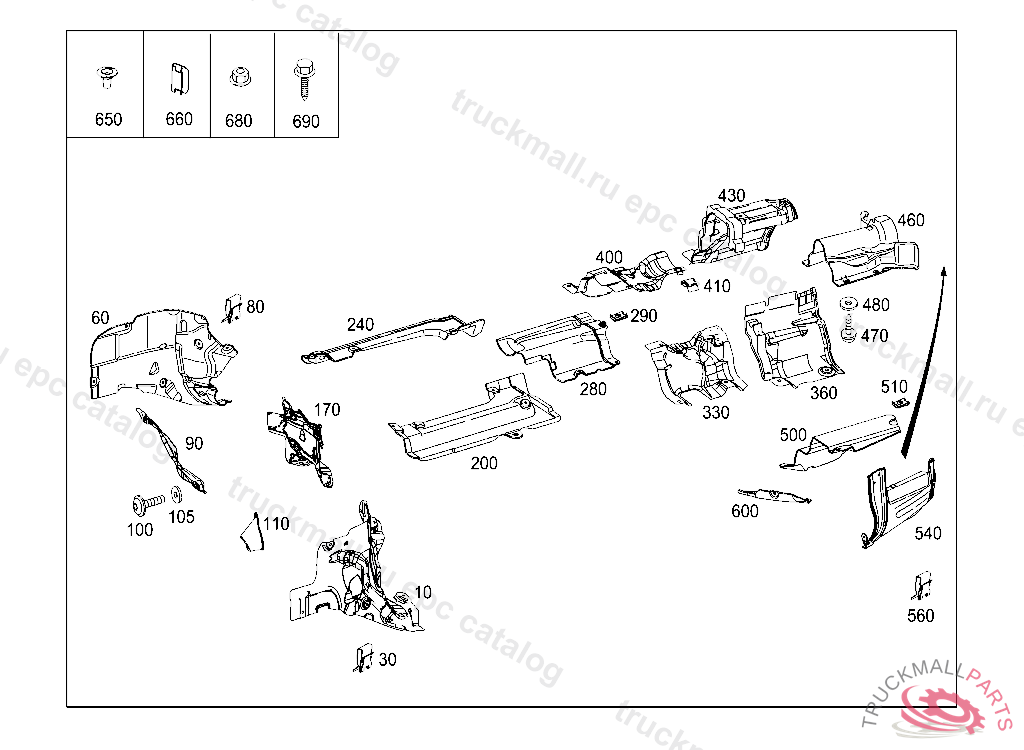

49 EXHAUST SYSTEM - 300 SCREENING PLATES
  • Поз.
    Артикул
    Описание
  • 10
    SCREENING TO FIRE WALL,LEFT, Replaced By: A2046828971
  • 10
    SCREENING TO FIRE WALL,LEFT, Replaced By: A2046829471
  • 10
    SHIELDING TO FIRE WALL,LEFT
  • 60
    SCREENING TO FIRE WALL,RECHTS, F 84944720120108, Replaced By: A2046803422
  • 60
    SCREENING TO FIRE WALL,RECHTS, A 20111219 L 05683820120131 V 00432620120131 F 84944720120108 R 22276220120215, Replaced By: A2046800022
  • 60
    SCREENING TO FIRE WALL,RECHTS, Replaced By: A2046828071
  • 60
    SCREENING TO FIRE WALL,RECHTS, Replaced By: A2046829171
  • 60
    SHIELDING TO FIRE WALL,RECHTS, Replaced By: A2046820272
  • 60
    SHIELDING TO FIRE WALL,RECHTS, A 20111219 L 05683920120131 V 00432720120131 F 84944820120108 R 22276320120215
  • 60
    SHIELDING TO FIRE WALL,RECHTS
  • 60
    SHIELDING TO FIRE WALL,RECHTS, A 20111219 L 05683820120131 V 00432620120131 F 84944720120108 R 22276220120215
  • 80
    SPRING CLAMP FOR REAR MUFFLER SHIELDING TO TOPBUMPER
  • 80
    LOCK RIGHT PANELLING TO SIDE MEMBER
  • 110
    SCREENING STEERING JOINT BOOT, A 17934220080515 L 00982220080430 V 00060020080430 F 18125620080501 R 04122320080612
  • 110
    SCREENING STEERING JOINT BOOT, A 17934320080515 L 00982320080430 V 00060120080430 F 18125720080501 R 04122420080612
  • 170
    SHIELDING TO PARTITION WALL CENTER, F 59605420100630 G 20120902
  • 170
    SHIELDING TO PARTITION WALL CENTER, A 20121031 G 20120902 R 29784420130509
  • 170
    SCREENING TO PARTITION WALL CENTER, A 45216320100907 F 59605320100630 L 10356620091231 R 17522820110419
  • 200
    SCREENING TO MAIN FLOOR LEFT, F 84944720120108
  • 200
    SHIELDING TO MAIN FLOOR LEFT
  • 240
    SCREENING FLOOR,RIGHT, A 14470820080301 L 00724220080228 V 00044420080228 F 13861420080302 R 03368320080425, Replaced By: A2046827971, +001A0029900950
  • 240
    SCREENING FLOOR,RIGHT, A 14470920080301 L 00724320080228 V 00044520080228 F 13861520080302 R 03368420080415, Replaced By: A2046829071
  • 240
    SHIELDING FLOOR,RIGHT
  • 280
    SCREENING OVER CATALYST, F 84944720120108
  • 280
    SHIELDING OVER CATALYST
  • 290
    LOCK RIGHT PANELLING TO SIDE MEMBER
  • 330
    SCREENING OVER FRONT LEFT CENTER MUFFLER
  • 360
    SCREENING OVER REAR LEFT CENTER MUFFLER
  • 400
    SCREENING OVER FRONT RIGHT CENTER MUFFLER
  • 410
    SPRING CLAMP FOR REAR MUFFLER SHIELDING TO TOPBUMPER
  • 430
    SCREENING OVER REAR RIGHT CENTER MUFFLER
  • 460
    SCREENING PLATE BELOW FUEL TANK
  • 460
    SCREENING PLATE BELOW FUEL TANK, Replaced By: A2044700647
  • 470
    HEXALOBULAR BOLT. SCREW BRACKET TO SUPPORT M5 X 12
  • 480
    WASHER AIR VENT FASTENING
  • 500
    SCREENING REAR MUFFLER RIGHT, INSIDE
  • 500
    SHIELDING REAR MUFFLER, LEFT, INSIDE, Replaced By: A2046828171
  • 500
    SHIELDING REAR FLOOR ASSEMBLY RIGHT, A 15806320080402 L 00982220080501 V 00060020080501 F 19739920080601MF 110603 R 03818720080529
  • 500
    SCREENING REAR MUFFLER, LEFT, INSIDE
  • 540
    SCREENING REAR MUFFLER, RIGHT, OUTER
  • 540
    SCREENING REAR MUFFLER, LEFT, OUTER
  • 560
    SPRING CLAMP FOR REAR MUFFLER SHIELDING TO TOPBUMPER
  • 600
    SCREENING SPARE WHEEL WELL,LEFT
  • 600
    SCREENING SPARE WHEEL WELL,RIGHT
  • 650
    HEXAGON NUT W COLLAR BRACKET MOUNTING
  • 660
    CLIP PARTITION WALL SHIELD TO PARTITIONWALL
  • 680
    NUT , Replaced By: N913023006001
  • 690
    TAPPING SCREW ATTACHMENT SHIELD 4.8X13
