Mercedes A0009972081 - Втулка

LO 1114 341.042

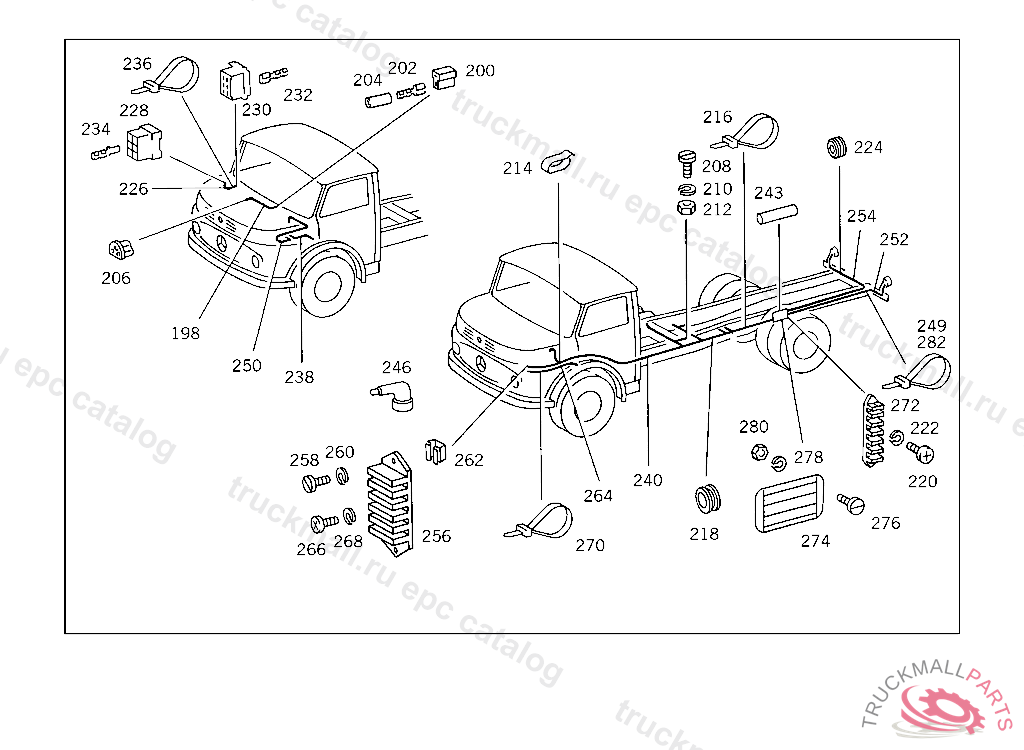

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTRICAL EQUIPMENT AND INSTRUMENTS IL. 5
  • Поз.
    Артикул
    Описание
  • 198
    CABLE HARNESS INSTRUMENT LIGHTING, WITH STEERING COLUMN MOUNTED SWITCH,FROM CHASSIS A 061072
  • 200
    PIN BUSHING HOUSING BIPOLAR
  • 202
    PIN BUSHING , Replaced By: A0075458226
  • 204
    GROMMET3.0 MM
  • 206
    PLUG SOCKET HOUSING. PROTECTIVE CAP
  • 206
    PLUG SOCKET HOUSING , Replaced By: A3445447060
  • 208
    SCREW FUEL LINE TO BRACKET
  • 210
    LOCK WASHER CLAMP TO BRACKET
  • 212
    NUT BALL PIVOT TO LEVER
  • 214
    CLAMP , Replaced By: A0005460875
  • 214
    CLAMP
  • 214
    FIXING CLAMP. CLAMP , Replaced By: A0005460875
  • 216
    LOOM TIE , Replaced By: A0019978390
  • 218
    GROMMET CAB ROOF
  • 218
    GROMMET , Replaced By: A0009972081
  • 220
    SCREW ELECTRIC CABLE TO FUSE BOX
  • 222
    LOCK WASHER
  • 224
    GROMMET GROUND CABLE
  • 238
    CABLE HARNESS FROM CABLE CONNECTOR TO HEATER BLOWER MOTOR, WITH FOOT-OPERATED DIMMER SWITCH,UP TO CHASSIS A 061071
  • 240
    CABLE HARNESS FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR,A 071081
  • 240
    CABLE HARNESS FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR, USED WITH AIR BRAKE,FROM CHASSIS A 059729 ALSO INSTALLED ON A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.A 071080
  • 240
    ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO REAR CABLE CONNECTOR, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS A 059728 EXCEPT FOR A 059166,A 059217,A 059218,A 059268,A 059276,A 059356-A 059359,A 059411,A 059418,A 059419,A 059525,A 059526,A 059594,A 059613, A 059625,A 059626,A 059647,A 059648.
  • 240
    ELECTRIC CABLE , Replaced By: A3415401427
  • 252
    CABLE HARNESS FROM CABLE CONNECTOR TO LEFT TAIL LAMP
  • 252
    CABLE HARNESS , Replaced By: A0415401507
  • 254
    CABLE HARNESS FROM CABLE CONNECTOR TO RIGHT TAIL LAMP
  • 254
    CABLE HARNESS , Replaced By: A0415401407
  • 256
    CABLE CONNECTION 6-POLE. CABLE CONNECTOR ,4 248860
  • 258
    SCREW BOOT TO AIR CLEANER AND TO AIR INTAKE PIPE
  • 260
    LOCK WASHER T-FITTING TO BRACKET
  • 262
    NUT RETAINER FRONT CABLE CONNECTOR
  • 264
    ELECTRIC CABLE FROM FRONT CABLE CONNECTOR TO LEFT BLINKER LAMP
  • 266
    SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
  • 266
    SCREW , Replaced By: N007985004107
  • 268
    LOCK WASHER T-FITTING TO BRACKET
  • 272
    CABLE CONNECTION 6-POLE. CABLE CONNECTOR ,4 248860
  • 274
    COVERING WITH GASKET
  • 276
    SCREW BOOT TO AIR CLEANER AND TO AIR INTAKE PIPE
  • 278
    LOCK WASHER T-FITTING TO BRACKET
  • 280
    NUT BOOT TO AIR DUCT AND TO AIR CLEANER
  • 999
    BATTERY LESS ACID 135 AH
  • 999
    KNOB INSTRUMENT LIGHTING, ON CAB 331 344.030-033,036-038.040,041,058 UP TO CHASSIS 652014
  • 999
    KEY AT INSTRUMENT PANEL
  • 999
    HORN , Replaced By: A0035423220
  • 999
    HORN , Replaced By: A0035423220
  • 999
    HORN , Replaced By: A0025426420
  • 999
    HORN , Replaced By: A0025426420
  • 999
    HORN , Replaced By: A0035423220
  • 999
    HORN , Replaced By: A3415420020
  • 999
    HORN , Replaced By: A3415420020
  • 999
    TAIL LAMP , Replaced By: A3415447103
  • 999
    CLAMP
  • 999
    WASHER FOOT DIMMER SWITCH TO TOEBOARD
  • 999
    POSITIVE CABLE , 10 UP TO IDENT NO. 729506 EXCEPT FOR 500001-599999,20 UP TO IDENT NO. 726579 EXCEPT FOR 500001-599999, Replaced By: N072551095880, +001N046234010006, +001N072332015100
  • 999
    BRACKET
  • 999
    PROTECTIVE TUBE , Replaced By: A3055460385
  • 999
    HORN , Replaced By: A3415427120
  • 999
    HORN , Replaced By: A3415427220
  • 999
    GROMMET , NOT USED
