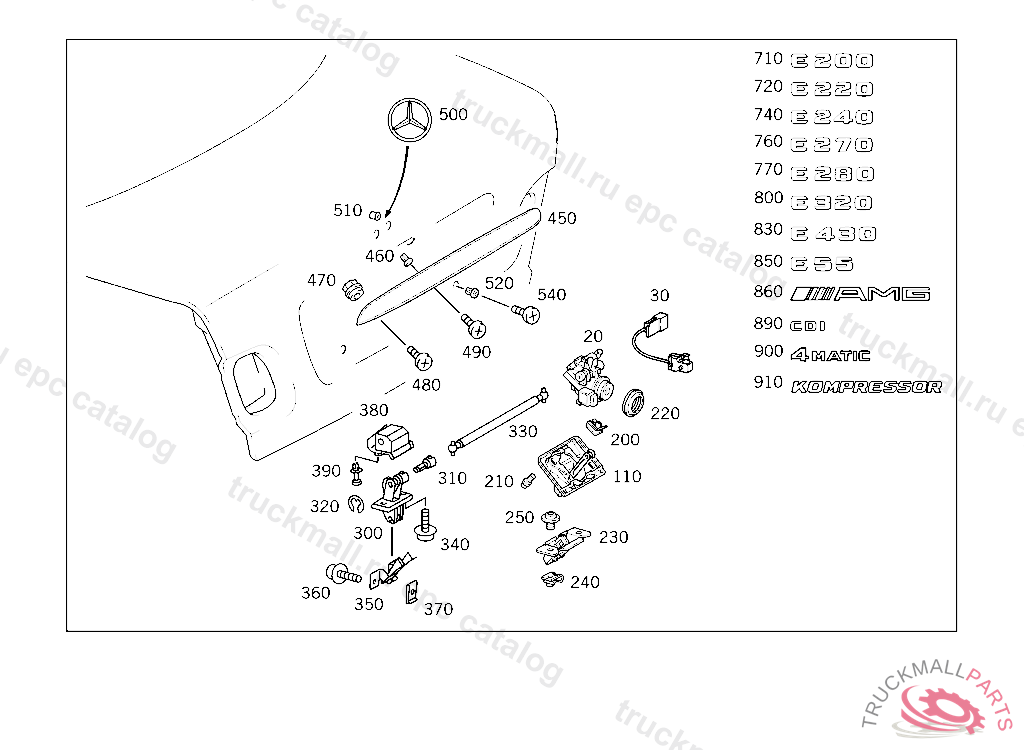

Поз.
Артикул
Описание
20
TUMBLER LESS KEY, USED WITH INFRARED CLOSING SYSTEM, WHEN ORDERING, PLEASE DO NOT FAIL TO FILL OUT THE FORM COMPLETELY, AND TO PUT IT ON FILE. "ORDER FOR SPARE KEYS/LOCKING PARTS" IN CASE OF CRIMINAL INVESTIGATIONS, YOU SHOULD AT ANY TIME BE ABLE TO GIVE DOCUMENTARY EVIDENCE. STATE LOCK NUMBER WHEN ORDERING THEFT-RELEVANT PART A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
30
SWITCH , A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
110
FASTENER
200
LOCK NUT. SPRING NUT MOUNTING PARTS
210
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
220
SEAL BETWEEN LOCK AND REAR LID, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
230
LOCK BRACKET
240
LOCK NUT. SPRING NUT MOUNTING PARTS
250
BOLT FASTENING, STRIKERS M6X13
300
FASTENER LEFT, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
300
FASTENER RIGHT, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
310
MOUNTING RIGHT, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
310
MOUNTING LEFT, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
320
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
330
ROD , NO LONGER AVAILABLE
340
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
350
LOCK BRACKET. STRIKER
360
HEXALOBULAR BOLT BRACKET ON TUBULAR SUPPORTING FRAMEWORK M6X12
370
LOCK NUT. SPRING NUT MOUNTING PARTS
380
COVERING RIGHT
380
COVERING LEFT, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
390
RIVET
450
HANDLE ON REAR LID
460
NUT SHELL AND LICENSE PLATE LAMP TO REAR LID
470
NUT MOULDING TYPE HANDLE TO REAR PANEL DOOR
480
SCREW FRONT LICENSE PLATE TO REAR PANEL DOOR M5X16, J 54020920000518
490
SCREW , A 686500 F 791314
500
MERCEDES STAR , RECOMMENDED FOR TAKING ON STOCK, Replaced By: A2087580058
510
GROMMET MERCEDES STAR TO REAR LID
520
NUT ROUND HEAD, LICENSE PLATE TO TAIL CENTRAL PART
540
SCREW FRONT LICENSE PLATE TO REAR PANEL DOOR M5X16, J 54020920000518
800
TYPE DESIGNATION ON REAR LID,ADHESIVE "E320", C 020765 ALSO INSTALLED ON B 891779 - C 020763 WITH CODE 859
