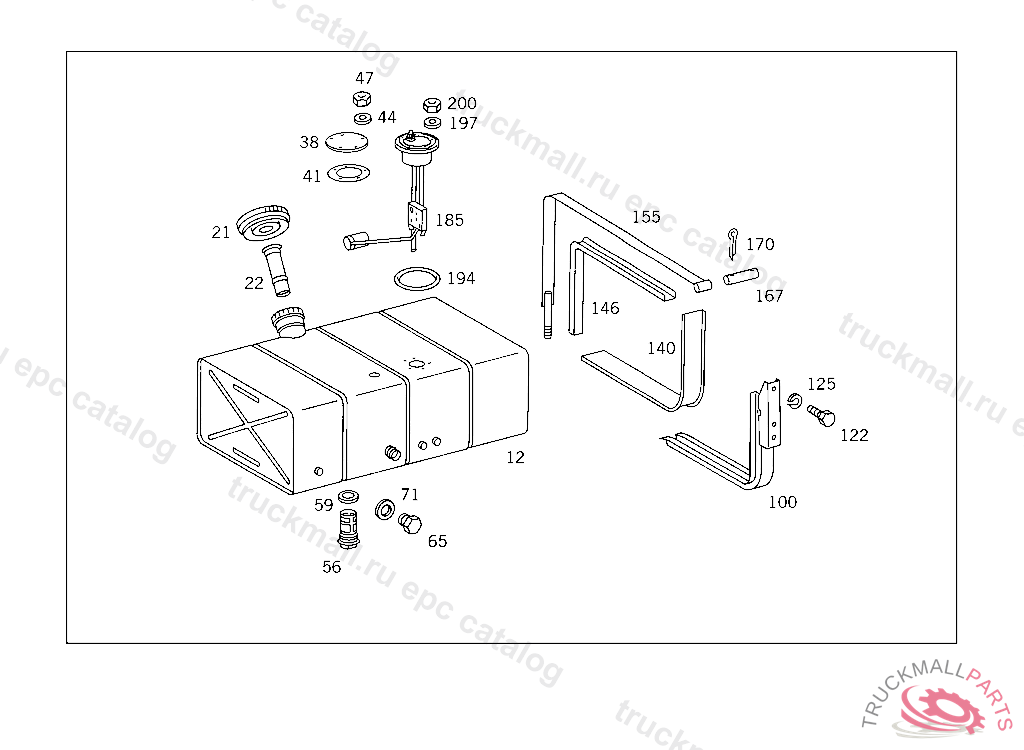

Поз.
Артикул
Описание
12
FUEL TANK200L
21
FILLER CAP FUEL TANK
22
FUEL STRAINER FUEL TANK
38
COVER FUEL TANK
41
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
44
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
47
NUT , Replaced By: N304032005005
47
NUT IN CASE OF SUBSEQUENT INSTALLATION
56
FUEL STRAINER FUEL TANK
59
SEAL RING FUEL STRAINER SCREEN
65
SCREW PLUG , Replaced By: N000908014009
65
SCREW PLUGTO 000 553 03 05,000 553 18 05,
71
SEAL RINGTO 000 553 03 05,000 553 18 05,
100
SUPPORT FUEL TANK TO FRAME
122
SCREW , Replaced By: N308676014020
122
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
125
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
140
PAD FUEL TANK TO SUPPORT 1060 MM
146
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
155
STRAP FUEL TANK TO SUPPORT
167
PIN STRAP TO SUPPORT
170
COTTER PIN STRAP TO SUPPORT
185
SENDER UNIT FUEL GAUGE
194
GASKET SENDER UNIT AND COVER TO FUEL TANK
197
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
200
NUT , Replaced By: N304032005005
200
NUT IN CASE OF SUBSEQUENT INSTALLATION
200
NUT IN CASE OF SUBSEQUENT INSTALLATION
