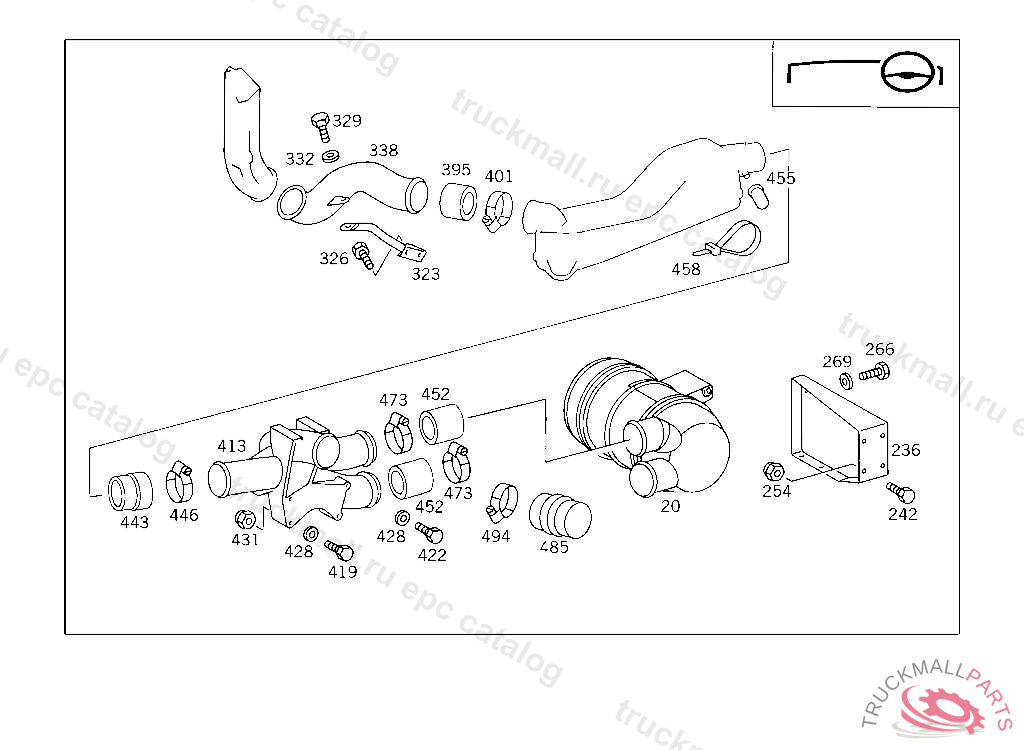

Поз.
Артикул
Описание
20
AIR CLEANER
20
AIR CLEANERMANN & HUMMEL,5 1296945 462572
236
SUPPORT
242
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
242
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
254
NUT SUPPORT TO SIDE MEMBER
254
NUT SUPPORT TO SIDE MEMBER
266
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
269
WASHER RADIATOR TO RUBBER MOUNTING
269
WASHER , Replaced By: N000125010532
323
BRACKET AIR INTAKE PIPE
326
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
326
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
326
SCREW , Replaced By: N304017008016
329
SCREW CLAMP TO BRACKET AND TO PIPE
332
WASHER EXHAUST MUFFLER TO STRAP
332
WASHER , Replaced By: N000125008443
338
AIR INTAKE PIPE
395
HOSE FROM AIR CLEANER TO MUFFLER, ORDER BY THE METER
401
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE 100-120X13 MM
401
CLAMP , Replaced By: A0059970690
413
SUPPORT (PAPER AIR CLEANER)
413
SUPPORT ,5 4625735 505597, Replaced By: A6735201833, +003N000933010128
419
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
419
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
419
SCREW , Replaced By: N308676012011
422
SCREW CONSOLE TO SIDE MEMBER
428
WASHER BRACKET TO FRAME
431
NUT SUPPORT TO SIDE MEMBER
443
HOSE FROM MUFFLER TO SUPPORT
446
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
452
HOSE FROM SUPPORT TO PAPER AIR CLEANER
455
CAP INTAKE MUFFLER FITTING
458
LOOM TIE LINE MOUNTING 280 MM
458
LOOM TIE LINE MOUNTING 280 MM
473
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
473
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
473
CLAMP , Replaced By: A0059971490
485
HOSE FROM MUFFLER TO ENGINE
494
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
494
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
999
WASHER CONSOLE TO SIDE MEMBER
999
BRACKET AT SIDE MEMBER
999
SCREW , Replaced By: N304017010030
999
SCREW , Replaced By: N304017010053
999
SCREW PIPE ELBOW TO BRACKET M 10X50
