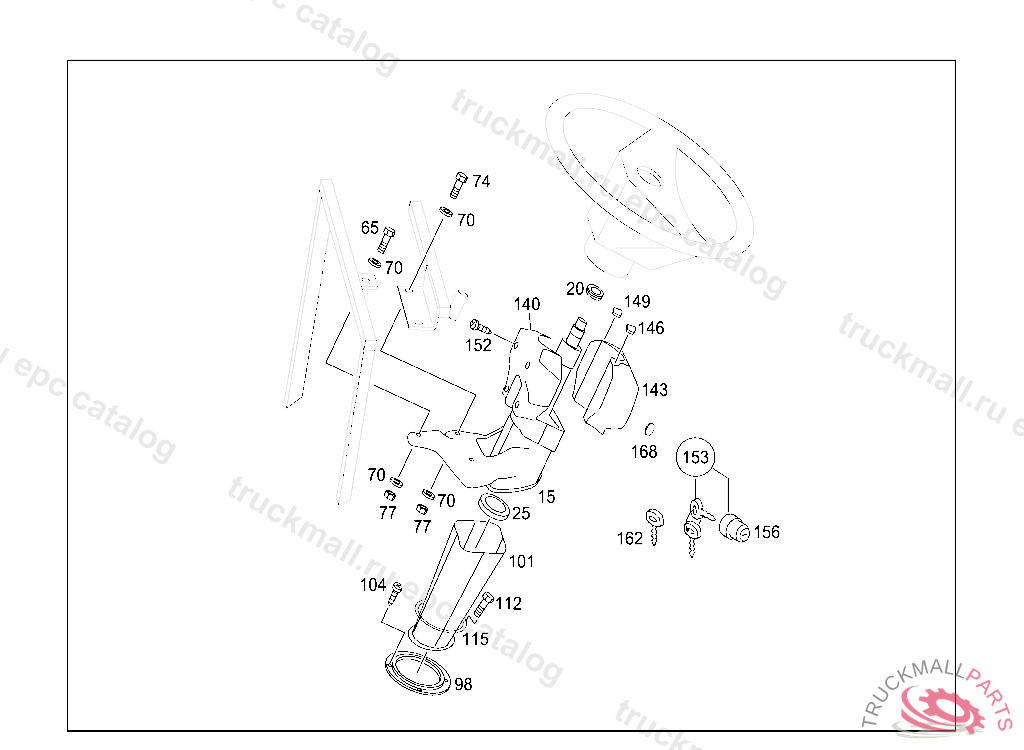

Поз.
Артикул
Описание
15
STEERING COLUMN BRACKET
20
BUSHING
25
BUSHING , Replaced By: A6854610050
25
BUSHING 38 X 26 X 19 MM
65
SCREW STEERING COLUMN TO CAB 7/16
65
SCREW AT SHIFTING ROD 3/8-16
65
SCREW STEERING COLUMN TO CAB 3/8-16
70
PART NAME MISSING WASHER
70
WASHER
70
WASHER SHIFTING ROD 3/8
70
PART NAME MISSING CONSOLE TO FRAME 7/16
74
SCREW STEERING COLUMN TO CAB 7/16
74
SCREW STEERING SHAFT TO STEERING 3/8-16
77
NUT. PART NAME MISSING NUT
77
PART NAME MISSING CONSOLE TO FRAME 7/16-12
98
BOOT STEERING COLUMN TUBE THRU CAB FLOOR
101
PROTECTIVE SLEEVE
104
SHEET METAL SCREW FUSE BOX
112
TAPPING SCREW
115
SEAL RING
140
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051,5 220267 NO.8316INO.7C52INO.7B90INO.9051I II I
143
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
146
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
149
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, NO.8316I I I I IIINO.7C52I I I II IINO.7B90 III III NO.9051II I
152
SCREW STEERING COLUMN PANELLING
153
OUTFIT (LOCK,KEY,HANDLE) WITH KEY, NO.8650INO.9985I I I II
156
FASTENER IGNITION LOCK TO 688 893 79 03
162
KEY
168
SEAL RING
999
PLUG
999
PLUG
