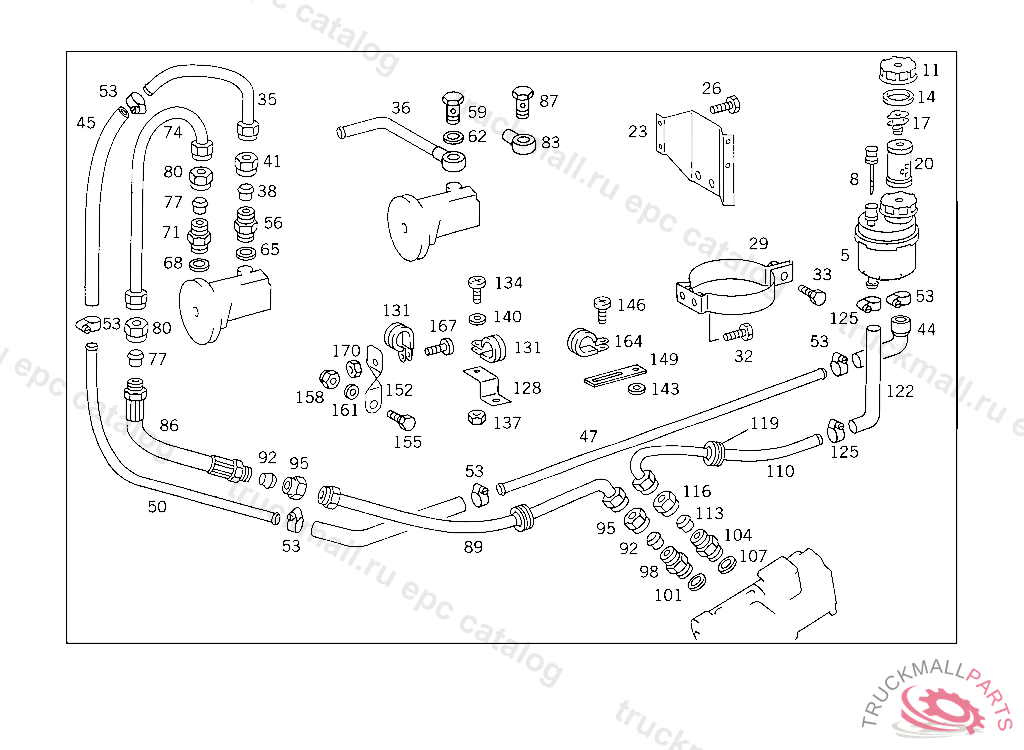

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK , Replaced By: A0004661167
8
OIL DIPSTICK
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
23
BRACKET OIL TANK
26
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
29
STRAP OIL TANK
32
SCREW BRACKET TO SIDE MEMBER
33
SCREW , Replaced By: N304017010040
36
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
38
GLAND , Replaced By: A0019901167
41
UNION NUT LINE MOUNTING
44
HOSE FROM OIL TANK TO SUCTION LINE
45
HOSE SUCTION LINE CONNECTION
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
53
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
53
CLAMP , Replaced By: N000000000667
59
HOLLOW SCREW SUCTION LINE TO OIL PUMP
65
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
68
SEAL RINGTO 006 997 00 72
74
LINE FROM PUMP TO HIGH PRESSURE HOSE,D 155205
77
GLAND , Replaced By: A0019901967
83
BANJO UNION
86
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
86
HOSE DELIVERY LINE TO PUMP
86
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
87
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
89
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,D 014536
92
GLAND , Replaced By: A0019901967
95
UNION NUT LINE CONNECTION, Replaced By: N000000006239
98
SCREW-IN FITTING SERVICE BRAKE VALVE
101
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
104
SCREW-IN FITTING RETURN LINE TO STEERING
107
SEAL RING VALVE TO VALVE,K 025179
110
LINE (RETURN LINE),FROM STEERING TO OIL TANK
113
GLAND LINE CONNECTION
116
UNION NUT LINE CONNECTION
119
GROMMET
122
HOSE
125
CLAMP , Replaced By: N000000000667
125
LOOM TIE. PART NAME MISSING , Replaced By: A3509979690
125
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
128
BRACKET
128
BRACKET COMPRESSED AIR LINES
131
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
CLAMP BATTERY CABLE TO BRACKET
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
131
CLAMP BRAKE HOSE BRACKET
134
SCREW COMPRESSED AIR LINE TO ENGINE MOUNTING SUPPORTING ARM
137
NUT
140
WASHER PLUG SOCKET TO BRACKET
146
SCREW BRACKET TO CROSS MEMBER
149
BRACKET AT CROSS MEMBER
155
SCREW FUEL LINE TO SIDE MEMBER
158
NUT BRACKET TO LEFT SIDE MEMBER
164
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
164
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
167
SCREW COMPRESSED AIR LINE TO ENGINE MOUNTING SUPPORTING ARM
170
NUT
