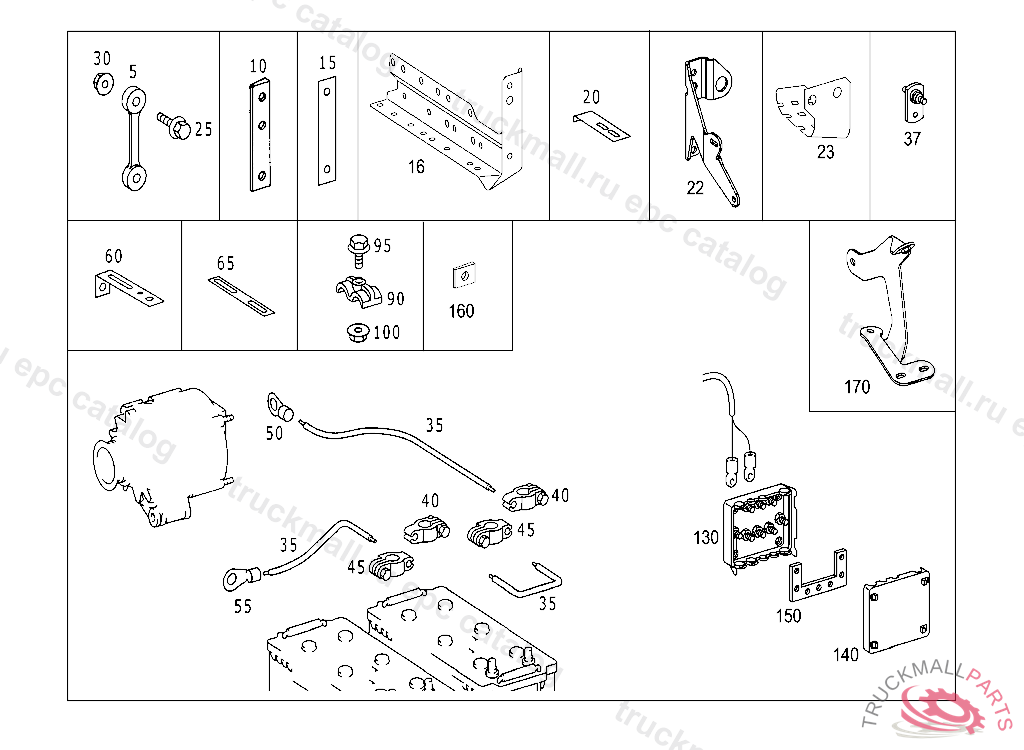

Поз.
Артикул
Описание
5
SHIM APPARATUS SUPPORT TO FRAME SIDE MEMBER 31MM
10
SHIM MOUNTING PARTS
15
SHIM MOUNTING PARTS 20MM
15
SHIM MOUNTING PARTS 30MM
16
SUPPORT UNDERRUN PROTECTION,RIGHT
16
SUPPORT UNDERRUN PROTECTION,LEFT
20
REINFORCEMENT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER, SIMPLE PART-PLEASE HAVE SHOP MADE
22
BRACKET SIDE PROTECTION DEVICE
23
BRACKET LINE MOUNTING
25
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X120
25
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
25
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
25
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 140
25
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
25
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
30
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
35
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
37
CONNECTOR GROUND CABLE TO BATTERY FRAME
40
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
45
SOLDERING TERMINAL POS. POLE
45
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
50
CABLE SHOE BATTERY CABLE 10-70 MM
50
CABLE SHOE BATTERY CABLE TO BATTERY MASTER SWITCH
55
CABLE SHOE BATTERY CABLE 12-70 MM
60
BRACKET BATTERY CABLE TO SIDE MEMBER
60
BRACKET LINE MOUNTING
60
BRACKET LINE MOUNTING
65
BRACKET BATTERY CABLE TO SIDE MEMBER, SIMPLE PART-PLEASE HAVE SHOP MADE
90
CLAMP , Replaced By: A0005462675
90
CLAMPING PIECE BATTERY CABLE MOUNTING
90
CLAMP BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING,5 579088
90
CLAMP ELECTRIC CABLE MOUNTING
95
SCREW. HEXAGON HEAD BOLT BATTERY CABLE M6X50
95
HEXALOBULAR BOLT. SCREW CLAMPING PIECE TO BRACKET M6 X 50
95
SCREW CLAMPING PIECE TO BRACKET
100
NUT BRACKET TO SIDE MEMBER M12X1.5
100
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
130
HOUSING POS.
140
CAP GROUND CONNECTION
150
CONTACT BRIDGE
160
PAD BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
170
BRACKET LEFT LATERAL UNDERRUN PROTECTION
