Поз.
Артикул
Описание

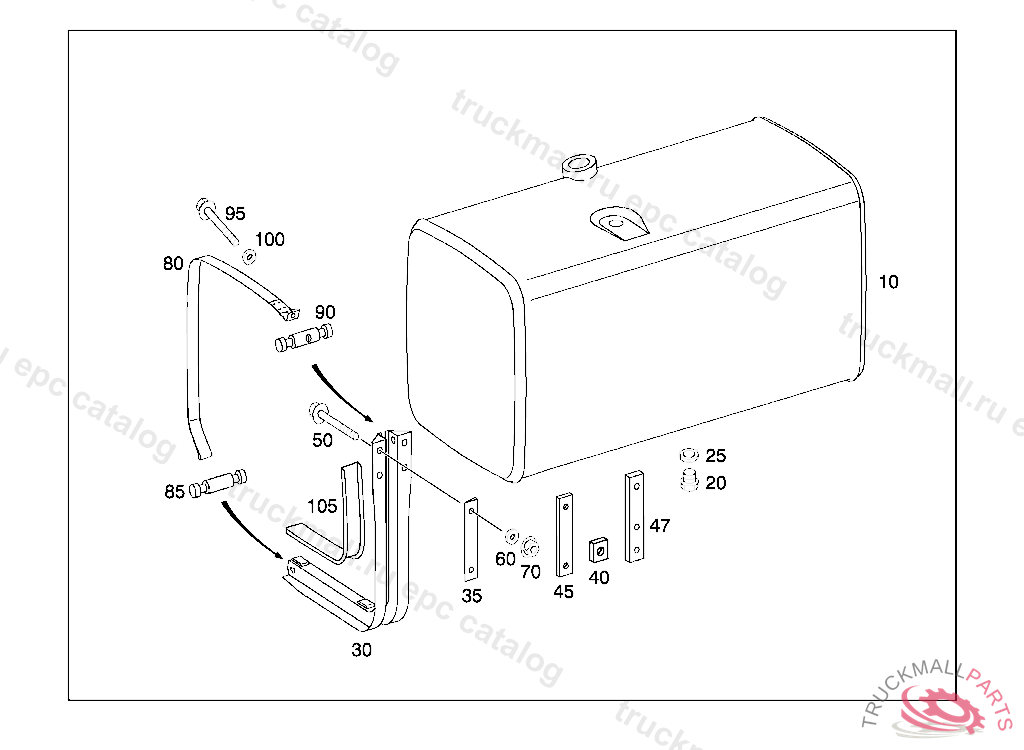

10
FUEL TANK TO BE MOUNTED ON THE RIGHT 700 L
10
FUEL TANK TO BE MOUNTED ON THE RIGHT 700L
10
FUEL TANK TO BE MOUNTED ON THE RIGHT 700 L
20
SCREW PLUG FUEL TANK
25
SEAL RING CLUTCH BOOSTER
30
SUPPORT FUEL TANK TO FRAME
30
SUPPORT FUEL TANK TO FRAME
30
SUPPORT FUEL TANK TO FRAME
35
SHIM MOUNTING PARTS
40
SHIM MOUNTING PARTS 7MM
45
SHIM SUPPORT TO FRAME 6MM
45
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 5 MM
45
SHIM FUEL TANK TO FRAME 3MM
47
SHIM MOUNTING PARTS 25MM
50
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
50
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
50
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
50
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
50
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
50
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
50
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
60
WASHER AS REQUIRED 2.8 MM
70
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
80
STRAP FUEL TANK TO CONSOLE
85
PIN STRAP TO SUPPORT 16X80 MM
90
PIN STRAP TO SUPPORT 25X80 MM
95
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
95
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
100
WASHER
105
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
