Поз.
Артикул
Описание

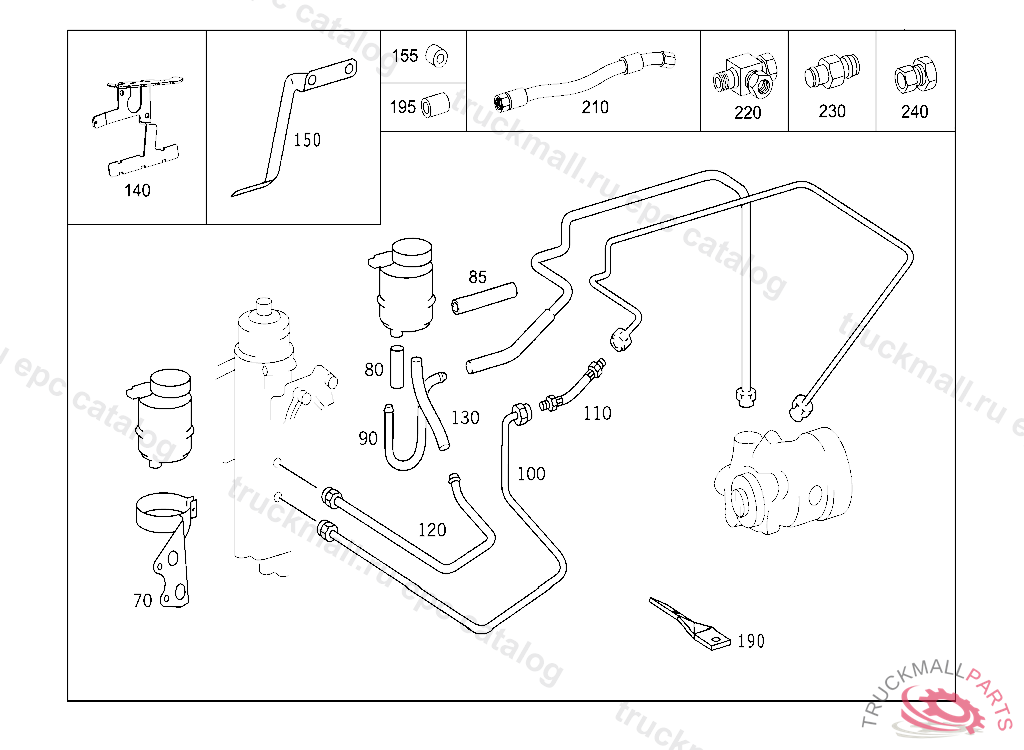

70
BRACKET OIL TANK
70
BRACKET OIL TANK
80
HOSE SUCTION LINE CONNECTION, ORDER BY THE METER
85
HOSE STEERING GEAR DELIVERY LINE,CIRCUIT I, Replaced By: A0229976682
85
HIGH-PRESSURE HOSE (DELIVERY LINE),FROM PUMP TO STEERING
85
HOSE , NOT USED
90
LINE FROM OIL TANK TO SUCTION LINE HOSE
100
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
100
OIL LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
100
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
110
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
110
HIGH-PRESSURE HOSE (DELIVERY LINE),FROM PUMP TO STEERING
120
LINE RETURN, FROM STEERING TO OIL TANK
120
LINE RETURN, FROM STEERING TO OIL TANK
130
HOSE DELIVERY LINE TO STEERING
140
BRACKET LINE RETAINER LEFT
150
BRACKET BRACKET TO STEERING BRACKET
150
BRACKET BRACKET TO STEERING BRACKET
150
BRACKET , Replaced By: A9424602035
155
SPACER TUBE , Replaced By: A4403220150
155
BUSHING TOOL BOX TO FRAME, TO BE ADAPTED DURING ASSEMBLY
190
BRACKET LINE MOUNTING
195
SPACER TUBE BRACKET TO BELL HOUSING
195
BUSHING , Replaced By: A3819911140
210
HIGH-PRESSURE HOSE FROM STEERING TO POWER CYLINDER L890MM
220
FITTING LINE CONNECTIONS
230
OIL LINE
240
ELBOW FITTING SCREW FITTING 12-15
