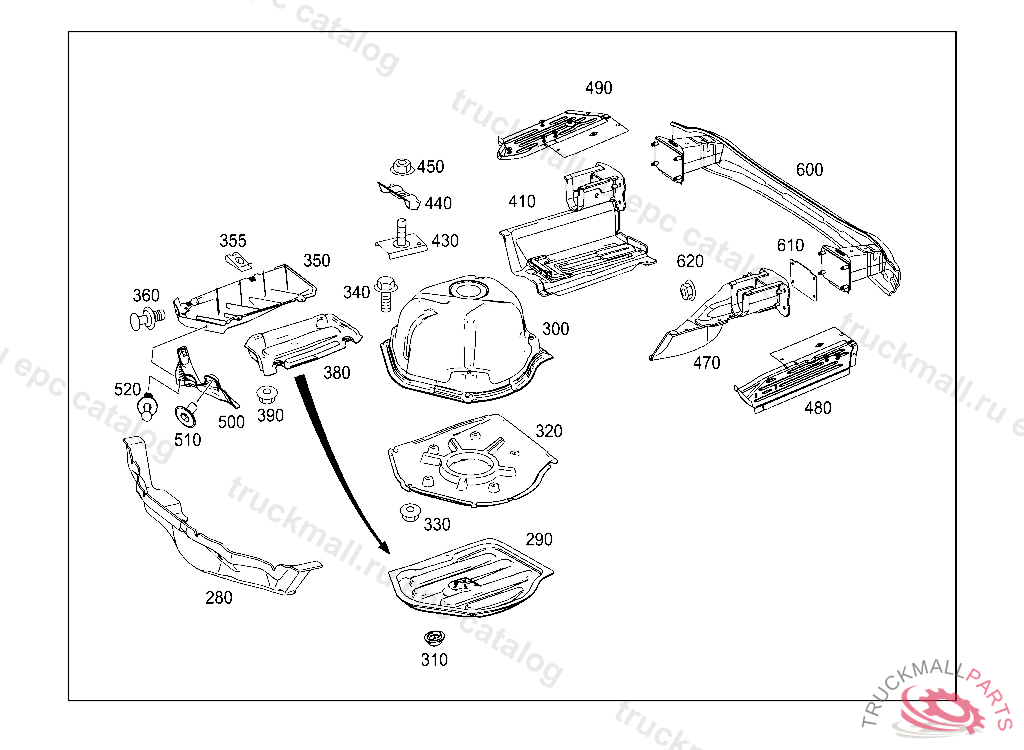

Поз.
Артикул
Описание
280
END PIECE FRONT SPARE TIRE WELL
290
SPARE WHEEL WELL
300
SPARE WHEEL RECESS
310
GROMMET WATER DRAIN IN SPARE WHEEL WELL 26 MM
320
COVER, REAR-END FLOOR REAR END FLOOR, A 20130430
320
COVER, REAR-END FLOOR REAR END FLOOR
320
COVER REAR END FLOOR, A 20130430
330
PLASTIC NUT. NUT
340
HEXALOBULAR BOLT SPARE WHEEL WELL
350
TRIM RING REAR FLOOR ASSEMBLY RIGHT
355
LOCK NUT. LOCK
360
RIVET COVERING TO SIDE MEMBER
380
COVER, REAR-END FLOOR BATTERY FLOOR
390
PLASTIC NUT. NUT
410
END PIECE RIGHT
430
TAKE-UP DEVICE BATTERY FASTENING
440
RAIL BATTERY FASTENING
450
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
470
END PIECE LEFT
480
BOTTOM REAR LEFT
490
BOTTOM REAR RIGHT
500
COVER RIGHT FRONT SPARE TIRE WELL
510
HEXAGON NUT W COLLAR BRACKET MOUNTING
520
RIVET COVERING TO SIDE MEMBER
600
REAR CROSS MEMBER REAR, A 03000920110930
600
REAR CROSS MEMBER REAR
600
REAR CROSS MEMBER REAR
610
SURFACE GASKET BETWEEN CROSSMEMBER AND REAR END CENTER ASSY.
620
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
