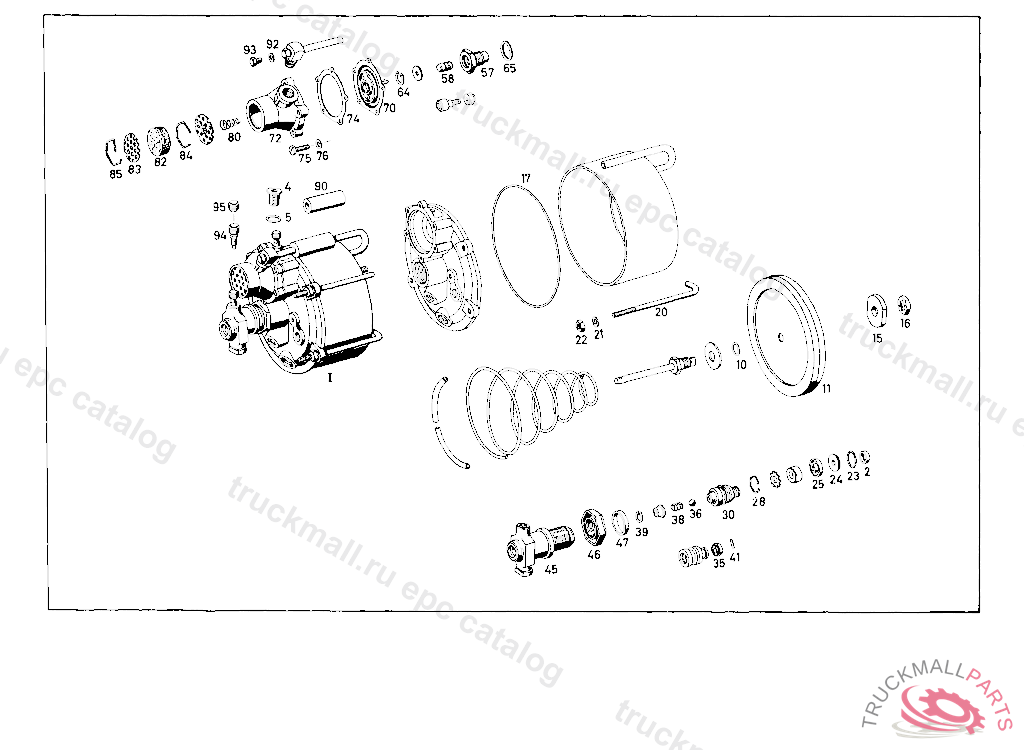

Поз.
Артикул
Описание
1
ATE -. ATE BOOSTER BRAKE T 50 WITH CONNECTION FOR BRAKE LIGHT SWITCH WITHOUT NONRETURN VALVE
2
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY ON REPAIR KIT
4
SCREWED NIPPLE
10
SEALING RING
11
PISTON
15
PISTON NUT
17
O - RING. RING
20
TIGHTENING SCREW
23
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY ON REPAIR KIT
24
WASHER , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY ON REPAIR KIT
25
CUP , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY ON REPAIR KIT
28
SNAP RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY ON REPAIR KIT
30
PISTON,. PISTON UP TO CHASSIS 7511820, WITH EXCEPTION OF CHASSIS 7511282 TO 11286, 7511797 TO 11798
35
GROOVED SLEEVE
38
SPRING
45
CYLINDER
46
SHEET METAL NUT
47
SEALING RING
57
CONTROL CYLINDER
58
CONTROL PISTON
65
SEALING RING
70
DIAPHRAGM,. MEMBRANE
72
VALVE HOUSING,. VALVE CASE
74
GASKET. DICHTUNG
80
PRESSURE SPRING. DRUCKFEDER
82
FILTER
83
WASHER
84
SNAP RING , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY ON REPAIR KIT
85
SNAP RING, OUTER
90
CONNECTION HOSE. VERBINDUNGSSCHLAUCH
93
HEX.-HD.SCREW. HEX. -HD.SCREW
94
VALVE , Replaced By: A3075530107
95
PROTECTIVE CAP , Replaced By: A0004217187
999
FIXING CLAMP FOR ATE BOOSTER BRAKE AT BRACKET, Replaced By: A1804300010
999
BRAKE PIPE FROM ATE BOOSTER BRAKE TO WHEEL CYLINDER DISTRIBUTOR
999
BRAKE PIPE FROM MASTER CYLINDER TO ATE BOOSTER BRAKE
999
CLAMP , Replaced By: A3449957120
999
SCREW PLUG M 14 X 1, 5. SCREW PLUG OVERFLOW LINE TO RADIATOR
999
SNAP RING , Replaced By: A0009945035
999
WICK. FELT
999
SPRING
999
LEATHER SLEEVE. LEATHER BOOT REPLACED BY 000 435 01 07
999
RING REPLACED BY 000 435 01 07
999
SPRING RETAINER , 010 UP TO CHASSIS 006932,012 UP TO CHASSIS 014834
999
SCREWED NIPPLE. CONNECTOR , FOOTNOTE 51 UP TO CHASSIS 010505
999
MASTER CYLINDER. MASTER BRAKE , Replaced By: A0004307201
999
ATE -. ATE BOOSTER BRAKE WITH CONNECTION FOR BRAKE LIGHT SWITCH, WITHOUT NONRETURN VALVE, Replaced By: A0004302130
999
REPLACED BY. ATE-BREMSGERAT
999
ANNULAR NIPPLE FOR DISTRIBUTOR TO MASTER CYLINDER
999
SCREW FITTING (AT INTAKE). FITTING , TO TANDEM BRAKE MASTER CYLINDERS 001 430 51 01 AND 001 430 68 01
999
BLEEDER SCREW. BLEEDER VALVE , Replaced By: A0004310265
