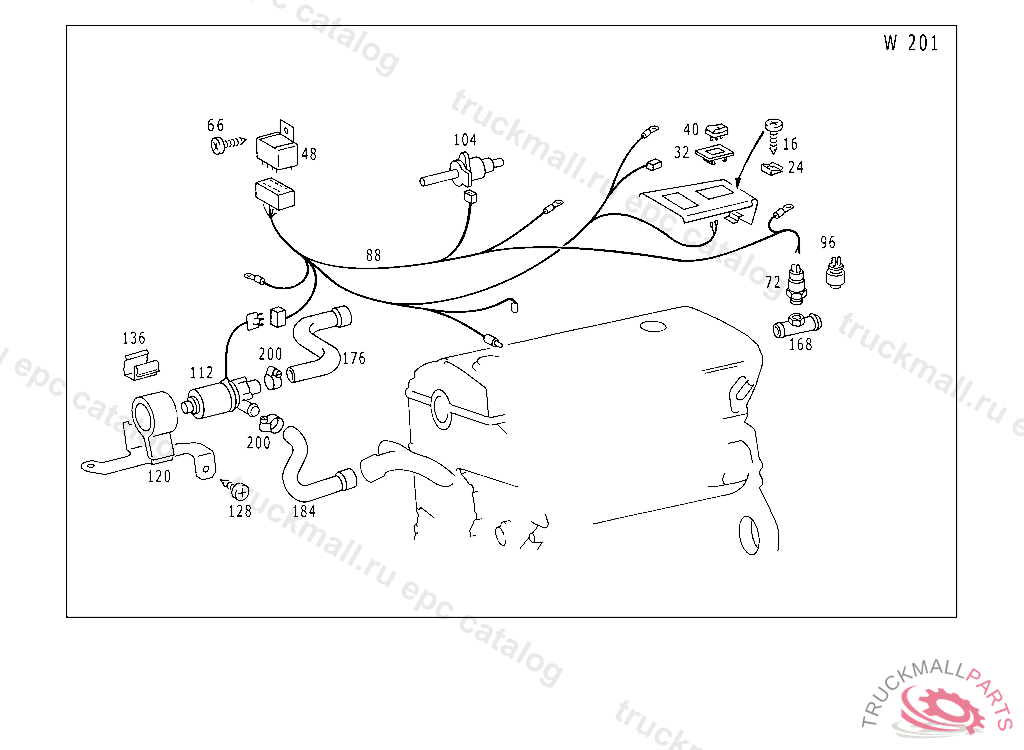

Поз.
Артикул
Описание
16
SHEET METAL SCREW GEAR INDICATOR TO INSTRUMENT PANEL
24
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
32
COVER ROCKER SWITCH TO CONSOLE
40
SWITCH TOP COVERING IN HOUSING
48
CONTROL UNIT FIRE WALL
66
SHEET METAL SCREW , Replaced By: N007981003203
66
SHEET METAL SCREW BRACKET TO CAB
72
SWITCH,AUTOMATIC FEED LINE
88
ELECTRIC CABLE FEED LINE
96
PLUG IN PLACE OF TEMPERATURE SWITCH
104
OPERATING UNIT AIR MIXING FLAP
112
RECIRCULATING PUMP ,F 185093 NOT FOR AUSTRALIA
112
RECIRCULATING PUMP. PUMP , NOT FOR AUSTRALIA
112
RECIRCULATING PUMP"SWF",5/91
112
RECIRCULATING PUMP ,5/91
112
RECIRCULATING PUMP
112
RECIRCULATING PUMP , FROM MODEL YEAR '81
120
BRACKET
120
BRACKET
128
SCREW BRACKET TO FIRE WALL
128
SHEET METAL SCREW
128
SHEET METAL SCREW , Replaced By: N000000000542
136
CLIP PLUG TO REAR PILLAR
168
PIPE LINE FROM ENGINE TO HEAT EXCHANGER, B 261792 B 976852 F 258571
168
PIPE LINE FROM ENGINE TO HEAT EXCHANGER
176
HOSE FROM RETURN LINE TO RECIRCULATING PUMP
176
HOSE ,F 845139
184
HOSE FROM RECIRCULATING PUMP TO ENGINE,F 845139
184
HOSE FROM RECIRCULATING PUMP TO ENGINE,F 397994F 845138
184
HOSE FROM RECIRCULATING PUMP TO ENGINE,F 397993
184
HOSE FROM RECIRCULATING PUMP TO ENGINE,F 845138
184
HOSE FROM RECIRCULATING PUMP TO ENGINE,F 845139
200
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
200
CLAMP , Replaced By: N000000000667
999
HEATER UNIT RANGE OF DELIVERY FOR SUBSEQUENT INSTALLATION
