Mercedes A0039971789 - ПРОКЛАДКА

C 230 KOMPRESSOR 203.240

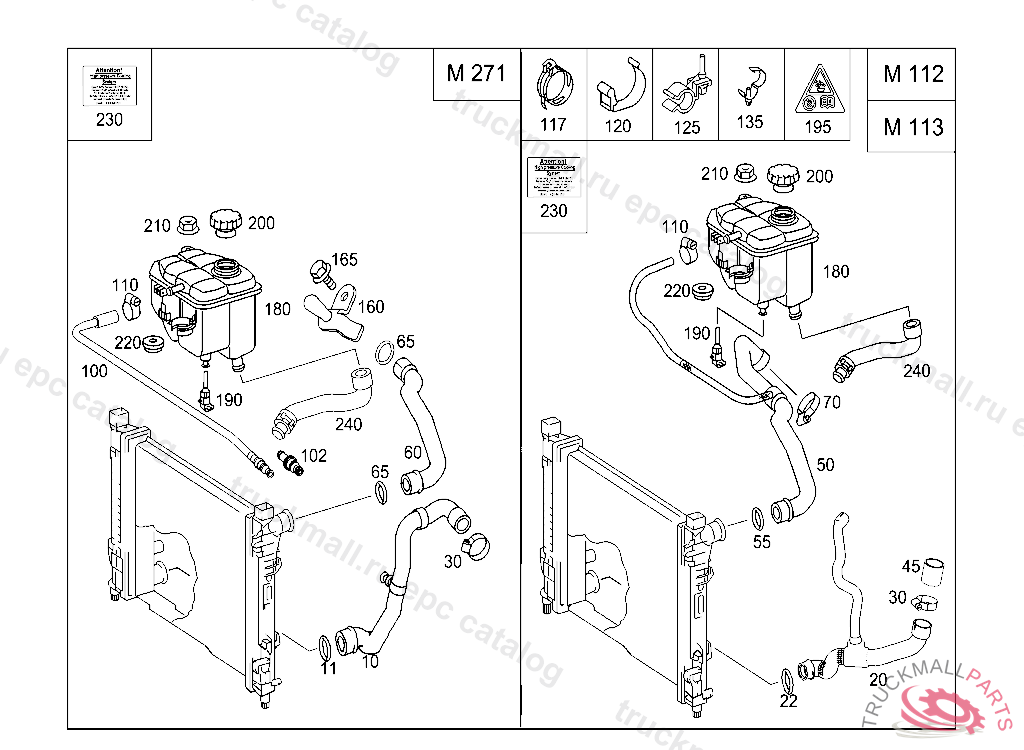

50 RADIATOR - 165 EXPANSION TANK,MOUNTING AND HOSES IL. 1
  • Поз.
    Артикул
    Описание
  • 10
    HOSE RADIATOR BOTTOM, A 46289720021030 E 02000020070101 A 97499920070630 E 06000020080801809
  • 11
    SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
  • 55
    SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
  • 60
    HOSE ON RADIATOR,TOP, A 97499920070630 E 06000020080801809
  • 65
    SEALING RING COOLANT HOSE TO ENGINE 36.3 MM
  • 100
    BREATHER PIPE FROM EXPANSION TANK TO ENGINE
  • 102
    PLUG SOCKET BREATHER LINE
  • 110
    HOSE CLAMP8-16
  • 160
    BRACKET HOSE FASTENING
  • 165
    SCREW
  • 180
    DASHPOT COOLING WATER EXPANSION
  • 190
    SWITCH,AUTOMATIC COOLING WATER LEVEL INDICATOR
  • 195
    PLATE ON COMPENSATION RESERVOIR
  • 200
    CLOSING COVER
  • 200
    RADIATOR CAP COOLING WATER EXPANSION TANK
  • 200
    RADIATOR CAP COOLING WATER EXPANSION TANK, Replaced By: A2105010615
  • 210
    NUT MOUNTING FRAME TO SUPPORT M6
  • 220
    RUBBER MOUNT EXPANSION TANK TO BRACKET
  • 230
    GUIDE SIGN EXPANSION TANK AND RADIATOR,RESP., IN FRENCH "140", EXPORT,ON SPECIAL REQUEST
  • 230
    GUIDE SIGN EXPANSION TANK AND RADIATOR,RESP., IN PORTUGUESE, EXPORT,ON SPECIAL REQUEST
  • 230
    GUIDE SIGN EXPANSION TANK AND RADIATOR,RESP., IN ENGLISH "140", EXPORT,ON SPECIAL REQUEST
  • 230
    GUIDE SIGN EXPANSION TANK AND RADIATOR,RESP., IN SPANISH "140", EXPORT,ON SPECIAL REQUEST
  • 230
    GUIDE SIGN EXPANSION TANK AND RADIATOR,RESP., IN ARABIAN, EXPORT,ON SPECIAL REQUEST
