Поз.
Артикул
Описание

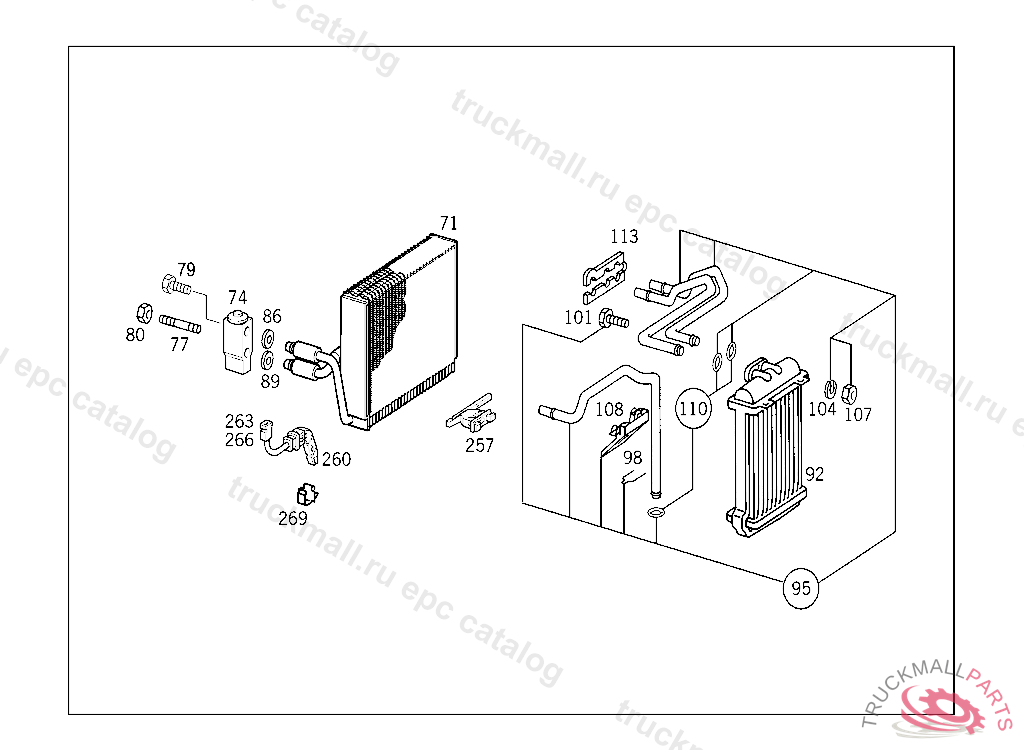

71
EVAPORATOR , Replaced By: A2108300958
71
EVAPORATOR
71
EVAPORATOR
74
VALVE (EXPANSION VALVE), A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
74
VALVE (EXPANSION VALVE)
77
STUD BOLT
79
HEXALOBULAR BOLT EMERGENCY LANTERN TO CAB M5X35
80
NUT CLAMP TO BRACKET
80
NUT , Replaced By: N913012006001
86
SEAL RING FROM LIQUID TANK TO T-FITTING
89
SEAL RING HOSE TO CONDENSER 14 MM
92
HEAT EXCHANGER
92
HEAT EXCHANGER
95
PIPE LINE PARTS KIT
95
PIPE LINE PARTS KIT
98
SPRING HEAT EXCHANGER PIPES
101
SCREW COVER PLATE TO BRACKET
101
SCREW , Replaced By: N304017005011
104
LOCK WASHER T-FITTING TO BRACKET
107
NUT PUMP TO BRACKET
108
SEAL , A 698507 X 012425 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM A 698508, X 012426 WITH CODE 808
110
SEAL PARTS KIT
113
SEAL
257
TEMPERATURE SENSOR HEAT EXCHANGER
260
TEMPERATURE SENSOR EVAPORATOR
260
TEMPERATURE SENSOR EVAPORATOR
260
TEMPERATURE SENSOR , Replaced By: A2108300572
263
PLUG HOUSING
266
PLUG PIN
269
CLIP BELT LOCK TO SEAT RAIL
