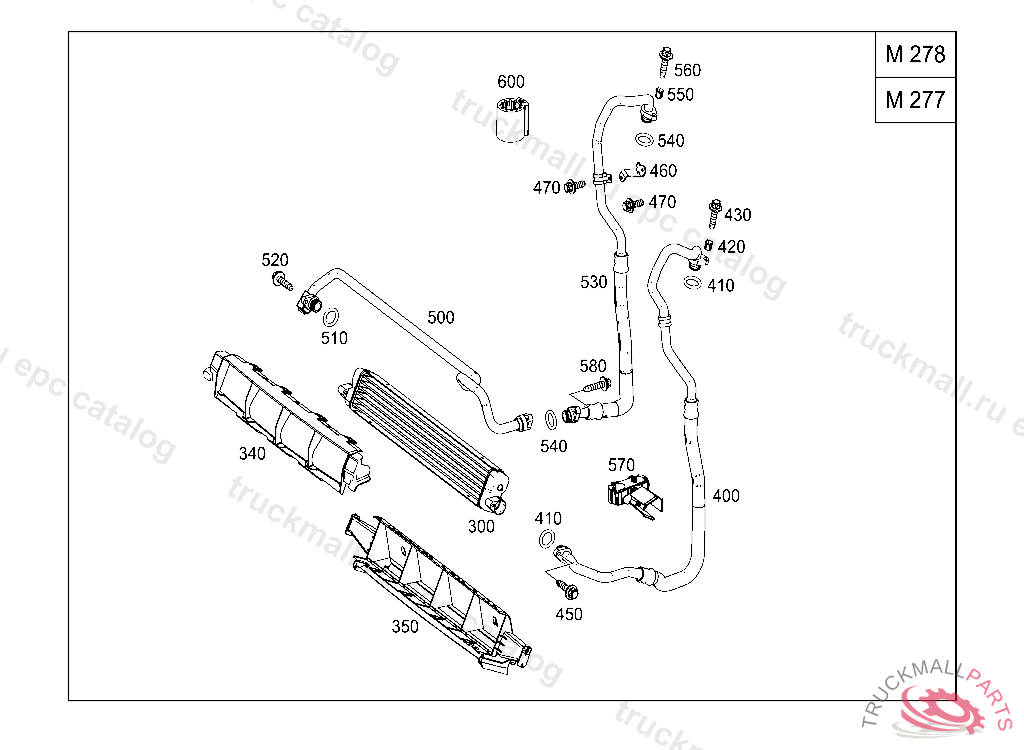

Поз.
Артикул
Описание
300
OIL COOLER FRONT
300
OIL COOLER ENGINE OIL, A 20140121
340
AIR DUCT FRONT
350
AIR DUCT REAR
400
OIL LINE FROM THERMOSTAT TO RADIATOR
410
SEAL RING OIL LINE TO OIL FILTER
430
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
450
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
460
BRACKET OIL LINE ATTACHMENT
470
BOLT BRACKET FASTENING STARTER WIRING HARNESS M7X16
470
HEXALOBULAR BOLT. SCREW
470
HEXALOBULAR BOLT UNDERRUN PROTECTION TO CROSS MEMBER M8X90
470
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
470
HEXALOBULAR BOLT REFRIGERANT LINE TO COMPRESSOR M6X25
470
HEXAGON HEAD BOLT LINE MOUNTING M6X10
500
OIL LINE FROM OIL COOLER TO SEPARATION POINT
510
SEAL RING OIL LINE TO OIL FILTER
520
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
530
OIL LINE
540
SEAL RING OIL LINE TO OIL FILTER
560
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
570
BRACKET OIL LINES
580
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
600
SPACER RING TO OIL LINE
600
CLAMP LINE MOUNTING 15-18 MM,V 207570
600
CLAMP HOSE TO FLANGE AND TO VALVE
999
NUT HEATING PIPE TO BRACKET
