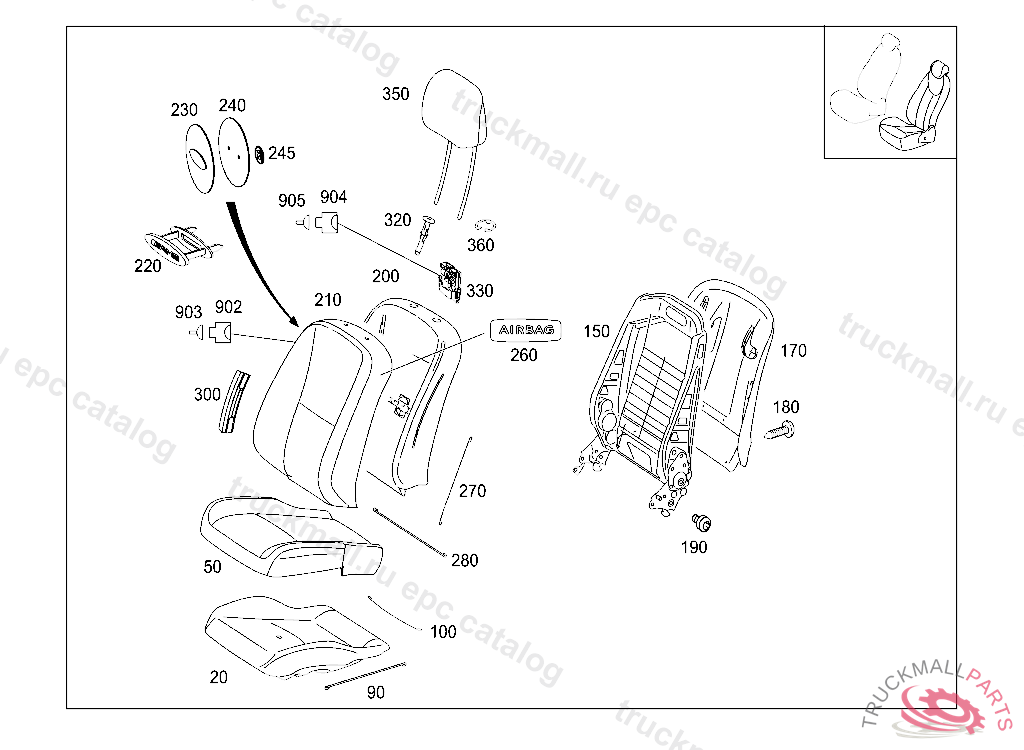

Поз.
Артикул
Описание
20
REST , A 26557620081001809
20
REST , A 26557620081001809
20
REST , A 26557620081001809 L 00540020090531
20
REST , A 09705120061031807 A 29016920090630800
20
REST , A 26557620081001809
20
REST , A 26557620081001809
20
REST , A 26557620081001809
50
UPHOLSTERY CUSHION , 9E61 011A QFT221A2400 BLACK
50
COVER FRONT SEAT CUSHION
50
COVER FRONT SEAT CUSHION
50
UPHOLSTERY CUSHION
50
UPHOLSTERY CUSHION
50
COVER FRONT SEAT CUSHION
50
UPHOLSTERY CUSHION , 9E61 011A QFT221A2400 BLACK
50
COVER FRONT SEAT CUSHION
50
UPHOLSTERY CUSHION LEFT
50
UPHOLSTERY CUSHION
50
UPHOLSTERY CUSHION
90
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
100
BRACKET SEAT COVER MOUNTING,LONGITUDINAL, USED WITH LEATHER TRIM
100
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
150
BACKREST FRAME ASSEMBLY
170
PANELING
170
PANELING
170
PANELING
170
COVER LEATHER
170
COVER
170
PANELING LEFT, WITH FOLDING TABLE FUNCTION
170
COVER LEFT, WITH FOLDING TABLE FUNCTION
170
PANELING
170
PANELING LEATHER
180
SCREW PANELLING TO FRONT SEAT BACKREST
190
SCREW BACKREST FRAME TO SEAT FRAMEWORK
200
REST , A 26557620081001809
200
REST , A 26557620081001809
200
PAD FRONT SEAT BACKREST
200
PAD FRONT SEAT BACKREST , A 26557620081001809 L 00540020090531
210
BACKREST UPHOLSTERY
210
BACKREST UPHOLSTERY
210
BACKREST UPHOLSTERY
210
BACKREST UPHOLSTERY
210
COVER FRONT SEAT BACKREST
210
BACKREST UPHOLSTERY , 9E61 011A QFT221A2400 BLACK
210
BACKREST UPHOLSTERY
210
BACKREST UPHOLSTERY , WITH HEAT MAT 9E61 011A QFT221A2400 BLACK
210
BACKREST UPHOLSTERY
210
BACKREST UPHOLSTERY
210
BACKREST UPHOLSTERY
210
COVER FRONT SEAT BACKREST
210
BACKREST UPHOLSTERY
210
COVER FRONT SEAT BACKREST
210
BACKREST UPHOLSTERY
210
BACKREST UPHOLSTERY
210
COVER FRONT SEAT BACKREST
210
COVER FRONT SEAT BACKREST
210
BACKREST UPHOLSTERY
210
COVER FRONT SEAT BACKREST
230
PLATE DESIGNO, 7K71QFT204A2185 CHROME
240
BRACKET
245
LOCK PLATE BRACKET MOUNTING
260
INFORMATION LABEL BACKREST, RIGHT
270
BRACKET SEAT COVER MOUNTING,LONGITUDINAL
280
BRACKET CROSSWISE STITCHING OF COVER, WITH LEATHER TRIM
300
TRUSS INTERIOR BACKREST, A 05644420060404 L 00059420060831
320
GUIDE FOR HEADREST HEAD RESTRAINT
330
ADJUSTER HEAD RESTRAINT, E 01872520030630804 A 55589720030630804 F 45737520031014804 R 13114520031203804
350
HEADREST DESIGNO EXCLUSIV LEATHER
350
HEAD RESTRAINT FABRIC, 9E61 011A QFT221A2400 BLACK
350
HEADREST DESIGNO EXCLUSIV LEATHER
350
HEAD RESTRAINT LEATHER
350
HEAD RESTRAINT LEATHER
350
HEAD RESTRAINT DESIGNO EXCLUSIV LEATHER
350
HEAD RESTRAINT DESIGNO EXCLUSIV LEATHER
350
HEAD RESTRAINT NAPPA LEATHER
350
HEADREST DESIGNO EXCLUSIV LEATHER
350
HEAD RESTRAINT LEATHER
350
HEADREST DESIGNO EXCLUSIV LEATHER
350
HEAD RESTRAINT LEATHER
350
HEADREST DESIGNO EXCLUSIV LEATHER
350
HEADREST DESIGNO EXCLUSIV LEATHER
350
HEAD RESTRAINT NAPPA LEATHER
350
HEADREST DESIGNO EXCLUSIV LEATHER
350
HEAD RESTRAINT DESIGNO EXCLUSIV LEATHER
350
HEAD RESTRAINT DESIGNO EXCLUSIV LEATHER
360
LOCK TAIL LAMP
902
PLUG HOUSING SWITCH TO CLUTCH PEDAL 2-PIN JPT2.8
903
FLAT PIN BUSHING
904
PIN BUSHING HOUSING RAIN SENSOR 4 POLIG
905
REP.SET CONTACT0.75 MM2 MQS, CONNECTORS MUST ALSO BE ORDERED IN ACC. WITH THE TOTAL CABLE C ROSS-SECTION TO BE CONNECTED. SEE WIS FOR REPAIR INSTRUCTIONS.SOLDER CONNECTOR SLEEVES:TOTAL WIRE CROSS-SECTION: A 001 546 99 41GREEN0.7 -2.4 MM2 A 002 546 00 41RED2.0 -4.0 MM2 A 002 546 01 41BLUE 3.5 -8.0 MM2 A 002 546 11 41YELLOW 7.5 - 12.0 MM2 BUTT JOINT: A 002 546 13 41 0.5 MM2 A 002 546 14 41 0.8 MM2 A 002 546 15 41 1.3 MM2 A 002 546 16 41 2.0 MM2
905
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
