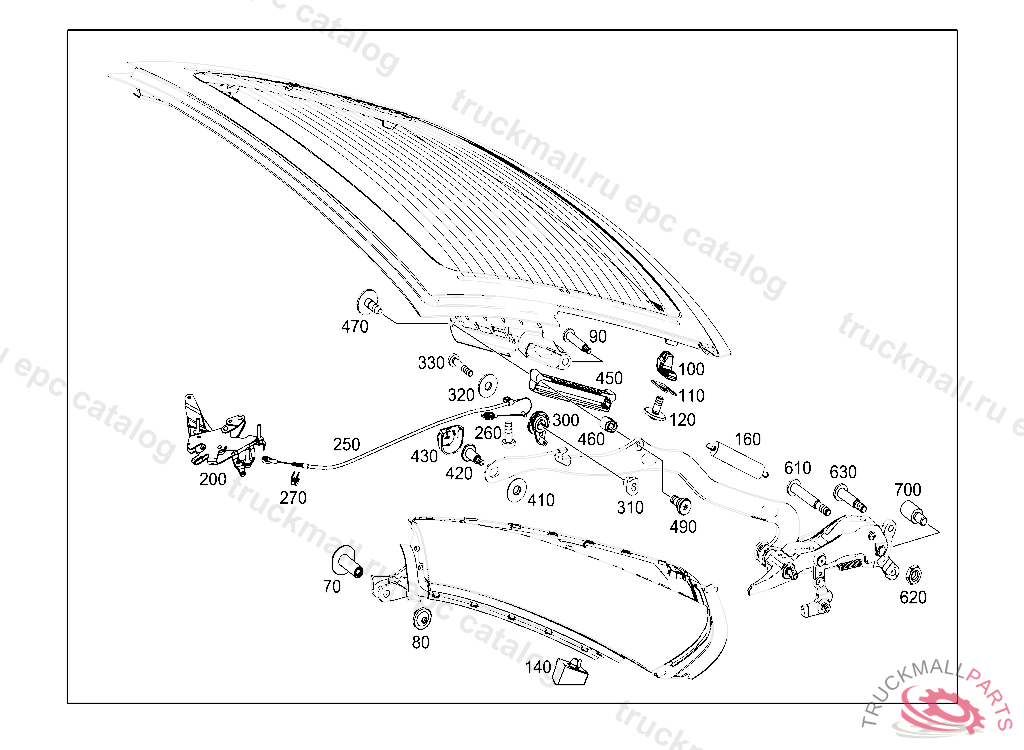

Поз.
Артикул
Описание
70
BEARING BOLT FOLDING ROOF TO C-PILLAR PIVOT
80
FILLISTER HEAD SCREW FOLDING ROOF TO C-PILLAR PIVOT M6X10
90
BEARING BOLT REAR WINDOW TO C-PILLAR
100
STANCHION REAR WINDOW PANE
120
FILLISTER HEAD SCREW SUPPORT BRACE TO C-PILLAR M6X13, F 20130830
140
SUPPORT RIGHT
140
SUPPORT LEFT
160
EXTENSION SPRING AT LEFT AND RIGHT C-PILLAR
200
CLOSURE RETRACTABLE ROOF FRONT LEFT
200
CLOSURE RETRACTABLE ROOF FRONT RIGHT, F 20120430
250
PULL ROPE BETWEEN LATCH AND LOCK OF ROOF
260
BOLT (DELIVERY LINE), FROM PUMP TO STEERING M6X16
270
LOCK
300
LOCK ROOF
310
ECCENTRIC BOLT TO LOCK
320
WASHER LINE MOUNTING
330
HEXALOBULAR BOLT TO LOCK M6X33
410
SLIDING BLOCK UPPER CONTROL ARM
420
PAN HEAD FIT BOLT ROOF TO MAIN GUIDE
430
COVER FOR SCREW/BOLT
450
GUIDE RAIL TO FOLDING ROOF
460
SLIDING BLOCK TO GUIDE RAIL
470
BOLT. SCREW LINE MOUNTING
490
PAN HEAD FIT BOLT MAIN GUIDE TO REAR WINDOW
610
BEARING BOLT C-PILLAR TO INTERMEDIATE BEARING
620
HEXAGON NUT CARRIER TO C-PILLAR M8
630
BEARING BOLT COUPLED-LINK AXLE TO C-PILLAR
700
BEARING BOLT FOLDING ROOF TO C-PILLAR PIVOT
