Поз.
Артикул
Описание

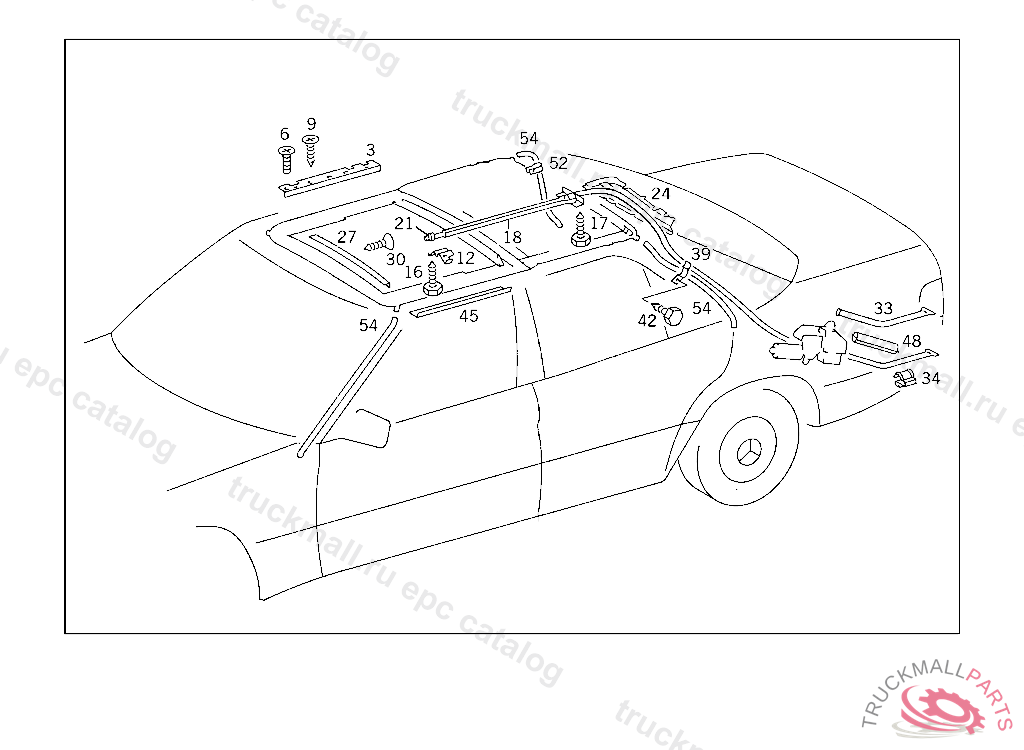

3
SLIDING RAIL FRONT RIGHT
3
SLIDING RAIL FRONT LEFT
3
SLIDING RAIL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 354333, Replaced By: A1247821926
3
SLIDING RAIL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 354333, Replaced By: A1247822026
6
SCREW
9
SCREW
9
SCREW , Replaced By: A1409900436
12
SHACKLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 554503, Replaced By: A1267820140
12
SHACKLE AT TRANSPORT BRIDGE
16
SCREW SHACKLE TO BRIDGE
17
SCREW
18
TUBE FROM MOTOR TO SLIDING ROOF PLATE
21
CABLE FROM MOTOR TO SLIDING ROOF PLATE
21
CABLE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1247800989
21
CABLE , Replaced By: A1247801389
24
COVERING ON SLIDING ROOF DRIVE CABLE CONDUIT UNDER ROOF PANELLING
27
COVER RAIL
30
SHEET METAL SCREW
33
OUTLET PIPE AT MOTOR
34
CLIP CABLE HARNESS TO ROOF RAIL
39
CLAMP TUBE TO REAR PILLAR
42
SHEET METAL SCREW BRACKET TO CAB FLOOR
45
SLIDING RAIL BETWEEN HEADLINER AND SLIDING ROOF, RIGHT
45
SLIDING RAIL BETWEEN HEADLINER AND SLIDING ROOF, LEFT
48
INSULATION150 MM, TO BE ADAPTED DURING ASSEMBLY
48
INSULATION , Replaced By: A1247820091
52
CLAMP TUBE TO REAR PILLAR
54
HOSE WATER DRAIN,FRONT 1100 MM, TO BE ADAPTED DURING ASSEMBLY
54
HOSE , Replaced By: A1247820796
999
TUBE FROM MOTOR TO SLIDING ROOF PLATE
