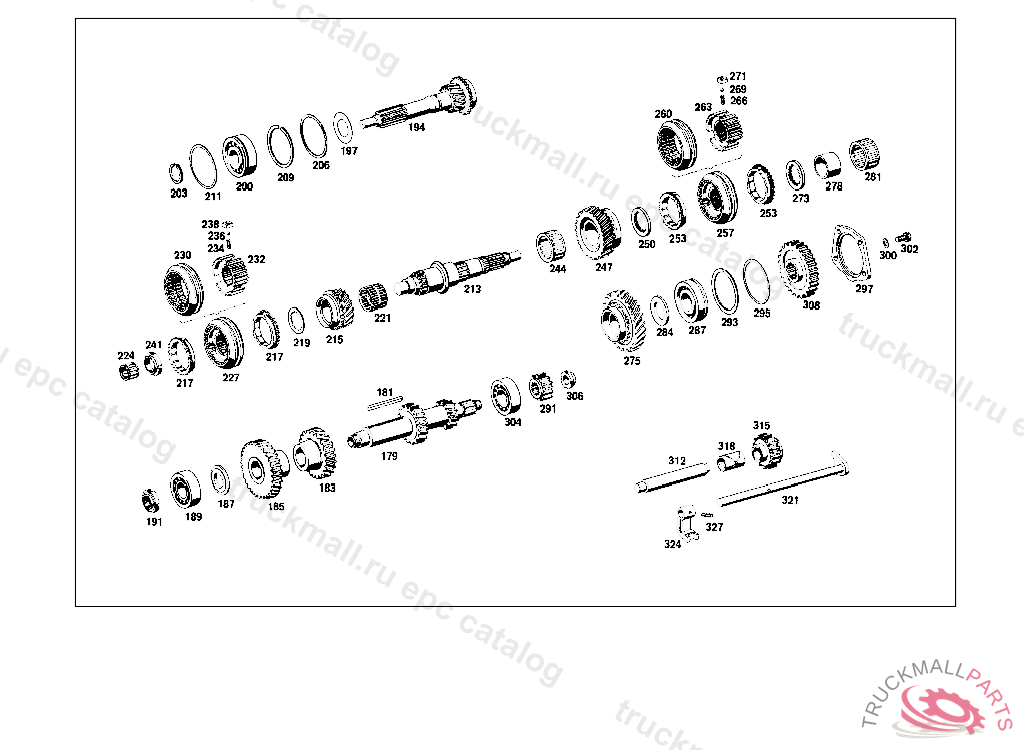

Поз.
Артикул
Описание
179
COUNTERSHAFT , 016,018 UP TO CHASSIS 049593, 057,058 UP TO CHASSIS 006293 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
181
KEY
183
GEAR 3RD SPEED
185
GEAR
187
SPACER WASHER , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
189
CYLINDR. ROLLER BEARING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
189
BALL BEARING , Replaced By: A0049814201
191
NUT , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
194
DRIVE SHAFT
197
OIL RING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
200
BALL BEARING
203
SNAP RING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
206
SPACER RING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
209
SNAP RING AS REQUIRED 1.9 MM
211
SPACER WASHER AS REQUIRED 0.1 MM
213
MAIN SHAFT , 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
215
GEAR 3RD SPEED
217
SYNCHRONIZER RING 5TH SPEED
219
THRUST WASHER , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
221
NEEDLE BEARING 3RD SPEED
224
NEEDLE BEARING
227
SYNCHRONIZER BODY 3RD AND 4TH SPEED
230
SLIDING COLLAR , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
232
SYNCHRONIZER BODY , UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
234
SPRING
236
BALL HOUSING,FRONT
238
FOLLOWER
241
NUT
244
NEEDLE BEARING 1ST AND 2ND SPEED
247
GEAR 2ND SPEED WITH SYBCHRONIZER CONE
250
THRUST WASHER 4.0 MM
253
SYNCHRONIZER RING
257
SYNCHRONIZER BODY 1ST AND 2ND SPEED, WITH 108.016,018,019 R.H.D. ONLY
260
SLIDING COLLAR , NO LONGER AVAILABLE
263
SYNCHRONIZER BODY 1ST AND 2ND SPEED, WITH 108.016,018,019 R.H.D. ONLY
263
SYNCHRONIZER BODY , NO LONGER AVAILABLE
266
SPRING
269
BALL HOUSING,FRONT
271
FOLLOWER , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
273
THRUST WASHER 4.0 MM
275
GEAR , Replaced By: A1172621011, +001A1152623662
275
GEAR 1ST SPEED
278
SPACER RING
281
NEEDLE BEARING 1ST AND 2ND SPEED
284
THRUST WASHER AS REQUIRED 3.8 MM, FROM TRANSMISSION 005986-766040
287
BALL BEARING
291
REVERSE IDLER GEAR , 669557
293
SNAP RING AS REQUIRED 1.9 MM
295
SPACER WASHER AS REQUIRED 0.1 MM
297
RETAINING RING
300
SPRING WASHER
302
SCREW
304
BALL BEARING , Replaced By: A0049814201
304
CYLINDR. ROLLER BEARING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
306
NUT , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
308
GEAR , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
312
REVERSE IDLER SHAFT , 016,018,019 UP TO CHASSIS 041341, 057,058 UP TO CHASSIS 001647 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
315
GEAR
318
BUSHING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
321
SHIFTING ROD REVERSE SPEED, 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
324
FOLLOWER , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
327
CLAMPING SLEEVE , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SPRING WASHER
999
NUT
999
CLAMPING SLEEVE , Replaced By: N001481005017
999
SNAP RING , 000,001,004,010,016,100,101,104,110,116 FROM TRANSMISSION 365564 ALSO INSTALLED ON, SEE FOOTNOTE 6 CONTINUED, SEE FOOTNOTE 22
999
CLAMPING SLEEVE
999
NUT BRACKET TO RETARDER
999
NUT
999
NUT , Replaced By: N304032008006
999
NUT BALL PIVOT TO LEVER
999
SCREW COVER PLATE TO BRACKET
999
SCREW OIL LINE TO CRANKCASE
999
SCREW SHIFT LEVER TO TRANSMISSION
999
SCREW , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
999
SCREW , Replaced By: N000931010304
999
SCREW
999
SCREW LEVER TO SHAFT
999
SCREW SELECTOR LEVER TO SELECTOR FINGER
999
SCREW
999
SCREW , Replaced By: N000933006194
999
SCREW
999
HEADLESS SETSCREW , Replaced By: A1109900110, +001N000137010101
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
LOCK WASHER TAIL LAMP TO BRACKET
999
WASHER
999
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
999
SPACER WASHER 0.50 MM
999
SPACER WASHER 0.25 MM
999
SPACER WASHER AS REQUIRED 0.10 MM, UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
999
SHIFTING FORK 1ST AND 2ND SPEED
999
THRUST WASHER 4.50 MM
999
THRUST WASHER 4.40 MM
999
THRUST WASHER AS REQUIRED 4.30 MM
999
THRUST WASHER AS REQUIRED 4.20 MM
999
THRUST WASHER 4.10 MM
999
THRUST WASHER 4.00 MM
999
THRUST WASHER 3.90 MM
999
SNAP RING 2.05 MM
999
SNAP RING , Replaced By: A1369940935
999
SPACER WASHER 0.30 MM
999
SPACER WASHER 0.3 MM
999
SPACER WASHER 0.2 MM
999
SPACER WASHER 0.20 MM
999
THRUST WASHER , NOT USED
999
THRUST WASHER 4.50 MM
999
SLIDING COLLAR , NO LONGER AVAILABLE
999
TRANSMISSION , NOT USED
999
TRANSMISSION , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A1172603401
999
SYNCHRONIZER BODY , Replaced By: A1172603045, +002A1152622934
999
BOOT
999
SNAP RING AS REQUIRED 2.1 MM, UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
SLEEVE BRACKET TO PEDAL BEARING BRACKET
999
SEAL RING , Replaced By: A0119976447
999
BUSHING , 003 110321 007 099338 086 007514 093 011074 105 267871 190 025455
999
BOOT
999
NUT
999
REVERSE IDLER SHAFT , FROM TRANSMISSION: 023 496842 UP TO TRANSMISSION: 023 766040 UP TO CHASSIS: 009860
999
SYNCHRONIZER RING 3RD AND 4TH SPEED, UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
SYNCHRONIZER RING 1ST AND 2ND SPEED, UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
THRUST WASHER AS REQUIRED 4.2 MM, FROM TRANSMISSION: 000,002,010,015 005986 100,102,103,110,112,115 000037 UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
THRUST WASHER AS REQUIRED 4.1 MM, FROM TRANSMISSION: 000,002,010,015 005986 100,102,103,110,112,115 000037 UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
THRUST WASHER AS REQUIRED 4.0 MM, FROM TRANSMISSION: 000,002,010,015 005986 100,102,103,110,112,115 000037 UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
THRUST WASHER AS REQUIRED 3.9 MM, FROM TRANSMISSION: 000,002,010,015 005986 100,102,103,110,112,115 000037 UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
GASKET
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 095002 015 115531 100,102,103,110,112 244263 115 122228 UP TO CHASSIS: 000,002,010 117631 015 154063 100,102,103,110,112 315098 115 161611, Replaced By: A1152604439, +001A1152670114, +001A1152680172
999
SYNCHRONIZER BODY , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359, Replaced By: A1152604445, +002A1152623034
999
SHIFT LEVER , FROM CHASSIS: LESS POWER STEERING 000,002,010 10/50 085059 015 10/50 099480 100,102,103,110,112 10/50 216012 115 10/50 106668 FROM CHASSIS: WITH POWER STEERING 000,002,010 10/50 086622 015 10/50 101629 100,102,103,110,112 10/50 220100 115 10/50 108872 FROM CHASSIS: LESS POWER STEERING 000,002,010 12/52 086675 015 12/52 101862 100,102,103,110,112 12/52 220490 115 12/52 109122 FROM CHASSIS: WITH POWER STEERING 000,002,010 12/52 083151 015 12/52 097115 100,102,103,110,112 12/52 211906 115 12/52 104334 UP TO CHASSIS: 000,002,010 095001 015 115530 100,102,103,110,112 244262 115 122227, Replaced By: A1152604439, +001A1152680550, +001A1152680172, +001N007346005000
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 056142 015 060262 100,102,103,110,112 139361 115 065086 UP TO CHASSIS: LESS POWER STEERING 000,002,010 12/52 086674 015 12/52 101861 100,102,103,110,112 12/52 220489 115 12/52 109121 UP TO CHASSIS: WITH POWER STEERING 000,002,010 12/52 083150 015 12/52 097114 100,102,103,110,112 12/52 211905 115 12/52 104333, Replaced By: A1152604439, +001A1152681442, +001A1152680172
999
GASKET KIT , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
999
WASHER0.5 MM, 10/50,12/52 UP TO CHASSIS 096085, 20/60,22/62 UP TO CHASSIS 095140
999
WASHER1.0 MM, 10/50,12/52 UP TO CHASSIS 096085, 20/60,22/62 UP TO CHASSIS 095140
999
SYNCHRONIZER BODY , NO LONGER AVAILABLE
999
SLIDING COLLAR , NO LONGER AVAILABLE
999
GASKET
999
GASKET , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
PIPE , 000,001,004,010,016,100,101,104,110,116 FROM TRANSMISSION 490816, 002,003,005,011,017 FROM TRANSMISSION 021531
999
SYNCHRONIZER BODY 3RD AND 4TH SPEED, 016 FROM CHASSIS 007396-027622 ALSO INSTALLED ON,SEE FOONT.11,018 FROM CHASSIS 006394-028985 ALSO INSTALLED ON,SEE FOOTN.56, 019 FROM CHASSIS 029325
999
GEAR , 016 FROM CHASSIS 007396-027622 ALSO INSTALLED ON,SEE FOONT.11,018 FROM CHASSIS 006394-028985 ALSO INSTALLED ON,SEE FOOTN.56, 019 FROM CHASSIS 029325
999
TRANSMISSION CASE
999
COUNTERSHAFT , 000,001,004,010,016,100,101,104,110,116 FROM TRANSMISSION 414557, 002,003,005,011,017 FROM TRANSMISSION 011431
999
LEVER
999
GEAR , 000,001,004,010,016,100,101,104,110,116 FROM TRANSMISSION 365564 ALSO INSTALLED ON, SEE FOOTNOTE 6 CONTINUED, SEE FOOTNOTE 22
999
SCREW
999
REPAIR KIT , 016 UP TO CHASSIS 027622 EXCEPT FOR, SEE FOOTN.11,018 UP TO CHASSIS 028985 EXCEPT FOR SEE FOOTN.56,019 UP TO CHASSIS 029325
999
REPAIR KIT , 016 UP TO CHASSIS 027622 EXCEPT FOR, SEE FOOTN.11,018 UP TO CHASSIS 028985 EXCEPT FOR SEE FOOTN.56,019 UP TO CHASSIS 029325
999
SHIFT LEVER , FROM CHASSIS: 000,002,010 007281-056141 015 004404-060261 100,102,103,110,112 017471-139360 115 007979-065085, Replaced By: A1152604439, +001A1152670114, +001A1152680550, +001A1152680172, +001A1152691242, +001N007346005000
999
BEARING BRACKET FRONT, 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
999
TRANSMISSION
999
SEAL RING , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
NEEDLE BEARING , 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
999
NEEDLE BEARING 3RD SPEED, 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
999
NEEDLE BEARING 3RD SPEED, 016 FROM CHASSIS 027622 ALSO INSTALLED ON, SEE FOOTN.11,018 FROM CHASSIS 028985 ALSO INSTALLED ON,SEE FOOTN.56,019 FROM CHASSIS 029326
999
PLUG , Replaced By: A0065457828, +006A0015453826, +001A0095453028
999
NEEDLE BEARING , UP TO CHASSIS: 000,002,010 111709 015 143890 100,102,103,110,112 295608 115 151032 FROM CHASSIS SEE UNIT MICROFISCHE,359
999
BALL BEARING , UP TO CHASSIS 017058 UP TO TRANSMISSION 766040
999
NEEDLE BEARING 3RD SPEED
999
SEAL RING , NO LONGER AVAILABLE INDIVIDUALLY, BUT ONLY IN REPAIR KIT
999
LOCK
999
ROLLER ASSEMBLY , Replaced By: A0029813412
