Поз.
Артикул
Описание

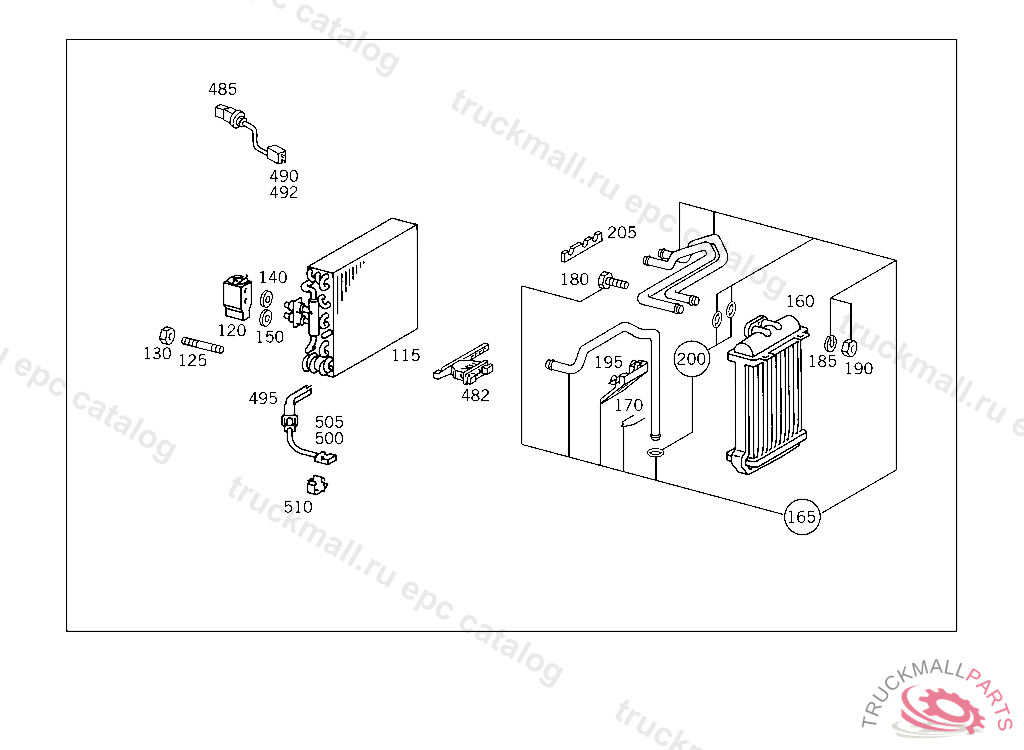

115
EVAPORATOR
120
VALVE (EXPANSION VALVE), A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
125
STUD BOLT
130
NUT , Replaced By: N913012006001
130
NUT CLAMP TO BRACKET
140
SEAL RING FROM LIQUID TANK TO T-FITTING
150
SEAL RING HOSE TO CONDENSER 14 MM
160
HEAT EXCHANGER
165
PIPE LINE PARTS KIT
170
SPRING HEAT EXCHANGER PIPES
180
SCREW , Replaced By: N304017005011
180
SCREW COVER PLATE TO BRACKET
185
LOCK WASHER T-FITTING TO BRACKET
190
NUT PUMP TO BRACKET
195
SEAL , A 698507 X 012425 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM A 698508, X 012426 WITH CODE 808
200
SEAL PARTS KIT
205
SEAL
482
TEMPERATURE SENSOR HEAT EXCHANGER
485
TEMPERATURE SENSOR OUTDOOR TEMPERATURE SENSOR,BIPOLAR
490
PLUG HOUSING
492
PLUG PIN
495
TEMPERATURE SENSOR EVAPORATOR
495
TEMPERATURE SENSOR , Replaced By: A2108300572
495
TEMPERATURE SENSOR EVAPORATOR
500
PLUG HOUSING
505
PLUG PIN
510
CLIP BELT LOCK TO SEAT RAIL
