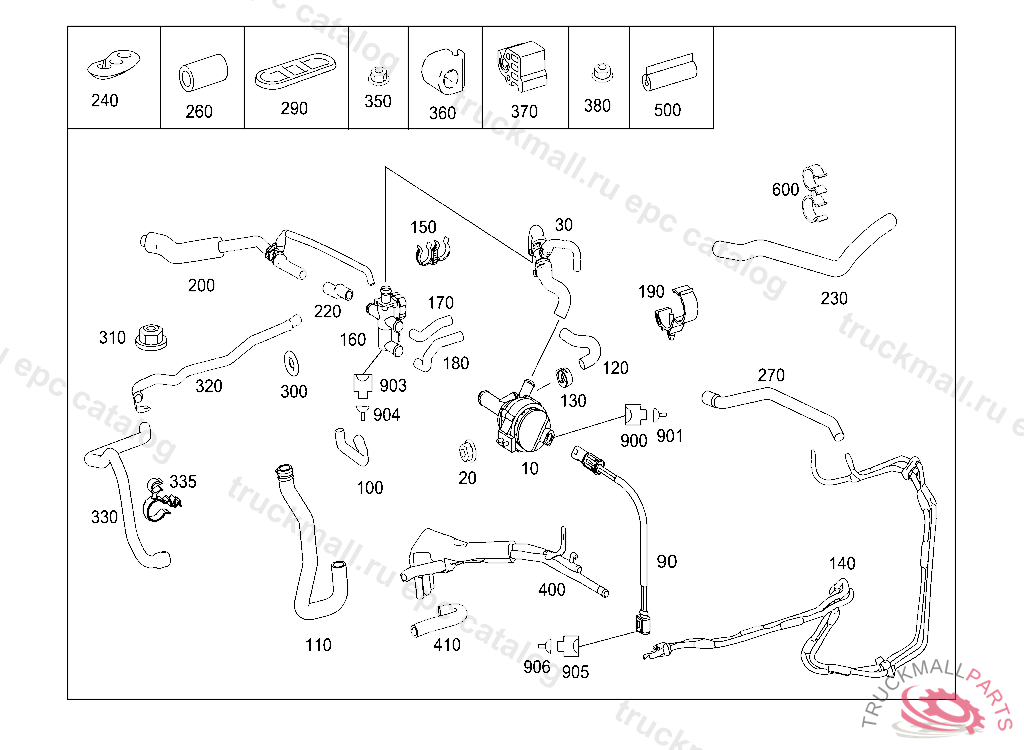

Поз.
Артикул
Описание
10
PUMP
20
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
30
HOSE PUMP TO VALVE WITH T-TYPE DISTRIBUTOR
90
WIRING HARNESS TO PUMP
100
RETURN HOSE RETURN FROM AUXILIARY HEATER
110
HOSE CHANGE-OVER VALVE
120
HOSE FEED HOSE TO VALVE
130
CLAMP25 MM
130
CLAMP HOSE TO OIL DIPSTICK
130
HOSE CLAMP HOSE ATTACHMENT 27 MM
130
SPRING HOSE CLAMP HOSE FASTENING,230301
130
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
130
CLAMP14 MM
140
PIPELINE TO WASHER FLUID HEATER
150
BRACKET HOSE
160
VALVE CHANGE-OVER VALVE
170
HOSE FROM VALVE TO HEAT EXCHANGER
180
HOSE FROM VALVE TO HEAT EXCHANGER
190
BRACKET AT BRACKET
200
HOSE INTERMEDIATE PIECE BETWEEN HEATER BOOSTER AND VALVE, A 16124820070628808
200
HOSE INTERMEDIATE PIECE BETWEEN HEATER BOOSTER AND VALVE, A 16124820070628808
220
HOSE PIPE LINE TO VALVE
240
GROMMET PIPE LINE TO WHEELHOUSE
240
STOP PLUG BLIND PLUG
260
CAP FOR WASHER FLUID HEATER CONNECTION
270
HOSE TO WASHER FLUID HEATER
270
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
290
PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780420080331 L 00369620080430
290
STOP PLUG PRESSURE LINE TO SOLENOID VALVE, A 22780320080331 L 00369520080430
300
GROMMET RETURN LINE
310
NUT COVERING TO CAB FIRE WALL
320
PIPELINE RETURN, Replaced By: A2218305715
320
PIPELINE RETURN
330
RETURN HOSE RETURN, A 30200020090930800
330
HOSE RETURN LINE INTERMEDIATE PIECE TO ENGINE
335
SPACER HOSE TO OIL DIPSTICK
350
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
360
LINE HOLDER AUXILIARY HEATER LINE TO LONGITUDINAL MEMBER, FRONT RIGHT
370
CLAMP FUEL LINE TO SIDE MEMBER,B 926099
380
NUT COVERING TO CAB FIRE WALL
400
FUNNEL FROM STATIONARY HEATER TO T-PIECE
410
HOSE RETURN FROM HEATER
500
HOSE
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
901
CONTACT SPRING. PLUG SOCKET0,5-1,0
901
GASKET
903
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
904
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
HOUSING. PLUG PLUG, CONNECTOR, DIFFUSOR HEATER
906
CONTACT PIN WITH SINGLE-WIRE SEAL 0.75-1.0MM2 MLK1.2
906
SEAL. GASKET YELLOW,V 215932
