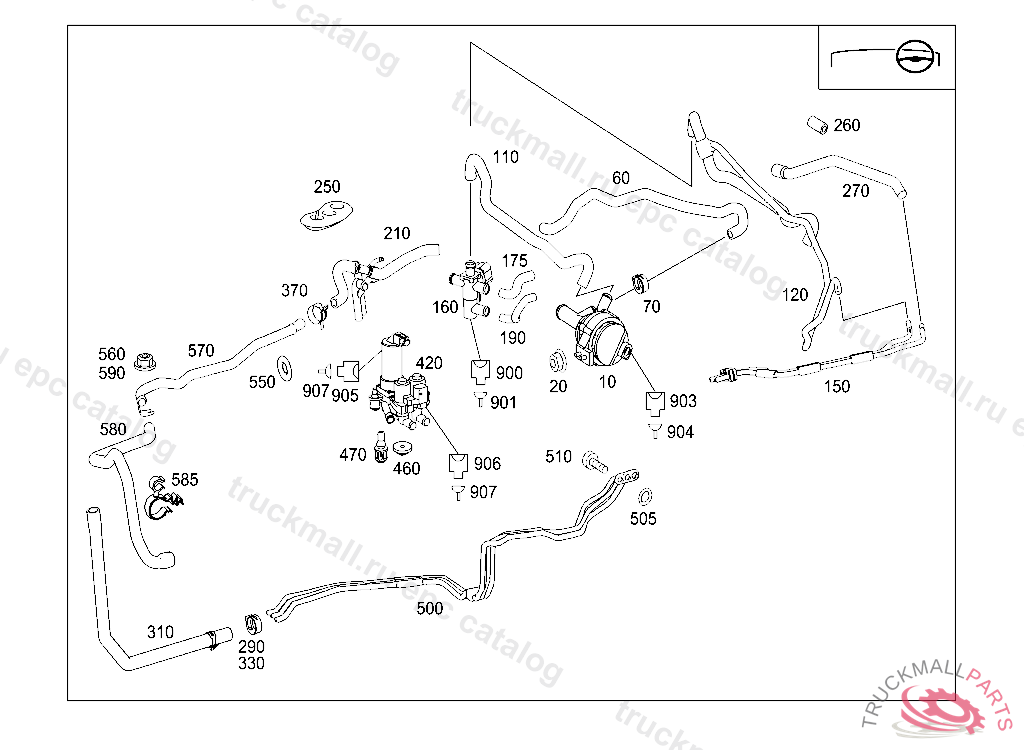

Поз.
Артикул
Описание
10
PUMP
20
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
60
HOSE FEED HOSE TO VALVE
70
HOSE CLAMP HOSE ATTACHMENT 27 MM
70
CLAMP14 MM
70
CLAMP25 MM
110
HOSE PUMP TO THE VALVE
120
HOSE T-PIECE JUNCTION TO WASHER FLUID HEATER, TO BE ADAPTED DURING ASSEMBLY
150
PIPELINE TO WASHER FLUID HEATER, A 02041220080626809
150
PIPELINE TO WASHER FLUID HEATER, A 01175020070731808
160
VALVE CHANGE-OVER VALVE
175
HOSE FROM VALVE TO HEAT EXCHANGER
190
HOSE FROM VALVE TO HEAT EXCHANGER
210
PIPELINE TO VALVE
210
PIPELINE PIPE SYSTEM WITH HOSES
250
GROMMET PIPE LINE TO WHEELHOUSE
250
STOP PLUG BLIND PLUG
260
CAP FOR WASHER FLUID HEATER CONNECTION
270
HOSE RETURN, TO BE ADAPTED DURING ASSEMBLY
270
HOSE TO WASHER FLUID HEATER
290
CLAMP HOSE TO OIL DIPSTICK
290
SPRING HOSE CLAMP HOSE FASTENING,230301
290
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
290
CLAMP14 MM
290
HOSE CLAMP LINE MOUNTING
290
CLAMP25 MM
310
HOSE FEED LINE TO PIPE IN REAR
330
HOSE CLAMP HOSE ATTACHMENT 27 MM
330
CLAMP25 MM
370
CLAMP. LOOM TIE
420
VALVE (WATER VALVE), ELECTROMAGNETIC WITH RECIRCULATION PUMP, BACK
460
RUBBER BUFFER WATER VALVE TO BRACKET
470
RUBBER BUFFER BETWEEN BRACKET AND DOUBLE WATER VALVE
500
PIPELINE
505
O-RING REAR AIR CONDITIONING PIPE SYSTEM 12.5X2.62
505
O-RING REAR AIR CONDITIONING PIPE SYSTEM 15.5X2.62
510
HEXALOBULAR BOLT BRACKET TO BRACKET M5X20
550
GROMMET RETURN LINE
560
NUT COVERING TO CAB FIRE WALL
570
PIPELINE RETURN, Replaced By: A2218305715
570
PIPELINE RETURN
580
HOSE RETURN LINE INTERMEDIATE PIECE TO ENGINE
580
RETURN HOSE RETURN, A 30200020090930800
585
SPACER HOSE TO OIL DIPSTICK
590
NUT COVERING TO CAB FIRE WALL
900
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
903
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
904
CONTACT SPRING. PLUG SOCKET0,5-1,0
904
GASKET
905
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
906
PIN BUSHING HOUSING LAMP UNIT, FRONT RIGHT (BLACK) 3-PIN,SLK2.8,E2
907
CONTACT SPRING. PLUG SOCKET0,5-1,0
907
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
