Поз.
Артикул
Описание

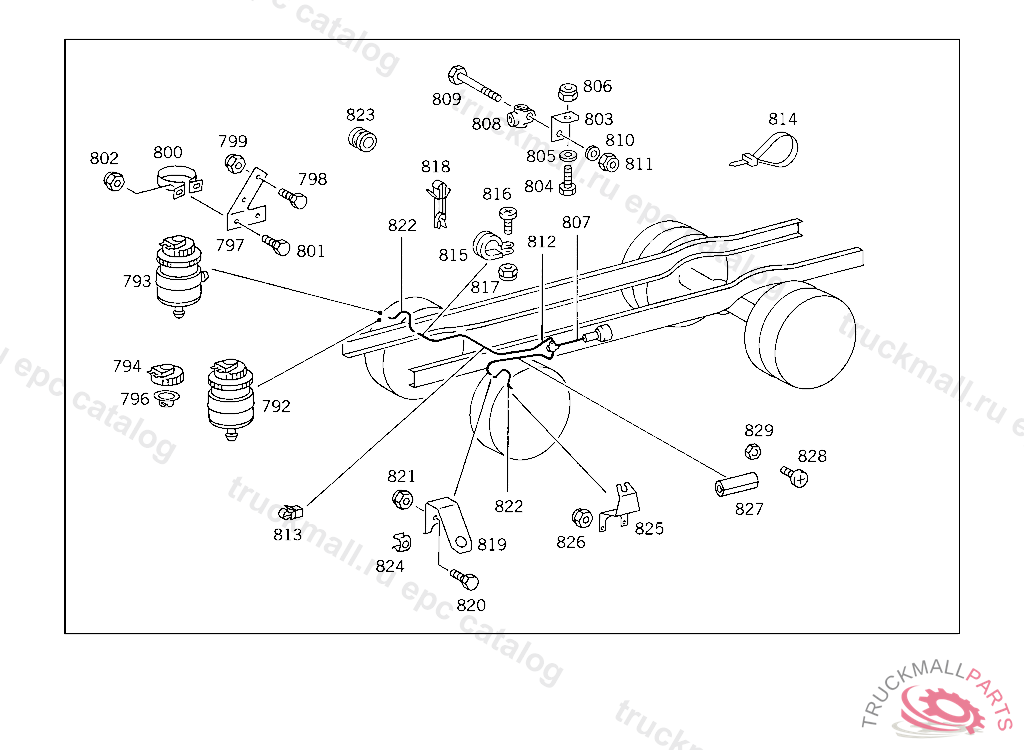

792
RESERVOIR WITH WARNING DEVICE,4 314610
793
RESERVOIR WITH CLUCH AND BRAKE SYSTEM WARNING DEVICE, FROM IDENT NO. 352291 EXCCEPT FOR 352759,353163,353868,354161. ALSO INSTALLED ON 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272.
794
FILLER CAP
794
FILLER CAPTO 001 431 38 02,000 431 58 02
796
STRAINERTO 001 431 38 02
796
STRAINER
797
BRACKET FLUID RESERVOIR
798
SCREW COVER PLATE TO BRACKET
799
NUT PUMP TO BRACKET
800
CLAMPTO 000 431 58 02
801
SCREW COVER PLATE TO BRACKET
802
NUT PUMP TO BRACKET
803
BRACKET FLEXIBLE SHAFT TO ENGINE MOUNTING,4 855703
804
SCREW PIPE CLAMP
805
WASHER EXHAUST MUFFLER TO STRAP
806
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
807
LINE FROM MASTER CYLINDER TO CONNECTOR 285 MM, TO BE ADAPTED DURING ASSEMBLY
808
VERTEILERSTUCK. DISTRIBUTOR REAR AXLE,4 478330
808
DISTRIBUTOR REAR AXLE,4 478330
809
SCREW FITTING TO TRANSMISSION M8X32
810
WASHER EXHAUST MUFFLER TO STRAP
811
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
812
LINE FROM DISTRIBUTOR TO VALVE 3000 MM
812
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 2600 MM
812
LINE FROM MASTER CYLINDER TO FRONT AXLE TEST CONNECTION 900 MM
812
LINE FROM BRAKE POWER REGULATOR TO BRAKE PRESSURE RELIEF 1200 MM
813
CLIP ,303365
814
LOOM TIE LINE MOUNTING
815
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
816
SCREW CLAMP MOUNTING M 6X16
817
NUT PUMP TO BRACKET
818
CLIP ,303365
819
ANGLE LEFT,368506
819
ANGLE RIGHT,368507
819
ANGLE LEFT,368507
819
ANGLE RIGHT,368506
820
SCREW SUPPORT TO CROSS MEMBER M 10X28
821
NUT STRAP TO BRACKET
821
NUT , Replaced By: N910113010000
822
BRAKE HOSE
822
BRAKE HOSE
824
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
824
LOCK HYDRAULIC LINE TO CAB
827
HOSE
828
SCREW ,374026
829
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
BRACKET. LOCK , Replaced By: A6525040038
999
BRAKE HOSE , Replaced By: A0004280535
999
HANDLETO 001 430 17 81,KNORR
999
REPAIR KITTO 001 430 18 81/78 81
999
STRAINERTO 002 430 31 01
999
FILTER BOTTOMTO 001 431 32 14,001 431 68 14
999
FILTER BOTTOMTO 000 431 24 14
999
LEVER , Replaced By: A0034302881
999
FILLER CAP , Replaced By: A0004315133
999
FILTER RING , Replaced By: A0015864143
999
SPRING , Replaced By: A0009935205
999
SEAL RING
999
PLUG
999
VALVE PARKING BRAKE KNORR
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
CUPTO 001 431 65 14
999
SEAL RING , Replaced By: A0009971548
999
SPRINGTO 001 431 72 05,707221
999
BRAKE VALVE , Replaced By: A0014318905, +001A1262920074, +001A3134200774, +001A3134300110, +001A3134310080, +001A3134310180, +004N000125008418, +004N007603016105, +001N912011008000, +008N913004008004, +002N915039012201
999
SPRINGTO 001 431 72 05,707221
999
BRAKE VALVE ,707221, Replaced By: A0014318905, +001A1262920074, +001A3134200774, +001A3134300110, +001A3134310080, +001A3134310180, +004N000125008418, +004N007603016105, +001N912011008000, +008N913004008004, +002N915039012201
999
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
999
LOOM TIE LINE MOUNTING 280 MM
999
PRESSURE REGULATORWABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KIT , Replaced By: A0004301109
999
REPAIR KIT SERVICE BRAKE VALVE BOSCH, Replaced By: A0004303506
999
SEAL RING42X21.5 MM
999
FITTING , Replaced By: A0029906171
999
SEAL RING , Replaced By: A0179979048
999
SEAL RING , Replaced By: A0049970248
999
CLAMP , Replaced By: A0004760436
999
DRUCKFEDER. SPRING , Replaced By: A3145860142
999
BRAKE CABLE , Replaced By: A3094201785
999
LINE WITH BEAD,10 MM
999
COVERING BRAKE VALVE
999
BRACKET , Replaced By: A3104290940
999
PAWL , Replaced By: A3145860142
999
PLATE , Replaced By: A3145860142
999
BEARING BRACKET , UP TO IDENT NO. 352290 EXCEPT FOR 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272. ALSO INSTALLED ON 352332,352759,353163,353868,354161.
999
SHACKLE , UP TO IDENT NO. 352290 EXCEPT FOR 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272. ALSO INSTALLED ON 352332,352759,353163,353868,354161.
999
BRACKET SHACKLE, UP TO IDENT NO. 352290 EXCEPT FOR 350368,350793,350843,350954,351074,351169,351284,351434,351903,352001,352271,352272. ALSO INSTALLED ON 352332,352759,353163,353868,354161.
999
REPAIR KIT , Replaced By: A3144200092
999
BASE STRAP
999
SCREW , Replaced By: N000000001146
999
SCREW COVERING TO RAIL
999
NUT , Replaced By: N913004006001
